3M Products & Supplies

3M™ Heat Shrink Heavy-Wall Cable Sleeve ITCSN-0400, 12-6 AWG, Expanded/Recovered I.D. 0.40/0.15 in, 25 ft Length Reel, 1/Case - 7000148831

SKU: 7000148831
MPN: 7000148831
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007088868
3M ID: 80610229454
5 Digit UPC: 8886
$132.36 each
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Cable Sleeve ITCSN is a heavy wall sleeve that provides abrasion, corrosion and chemical resistance. This sleeve has a 3:1 shrink ratio to offer electrical insulation for 1 kV rated applications. It features a cross linked polyolefin construction that provides moisture seal protection.

Features

  • VOLTAGE: UL 486D, Voltage Rating 600 V; Applies to: ITCSN 0400, 0800, 1100, 1500, 2000; CSA Certified ITCSN 0400, 0800, 1100, 1500, 2000, 3000

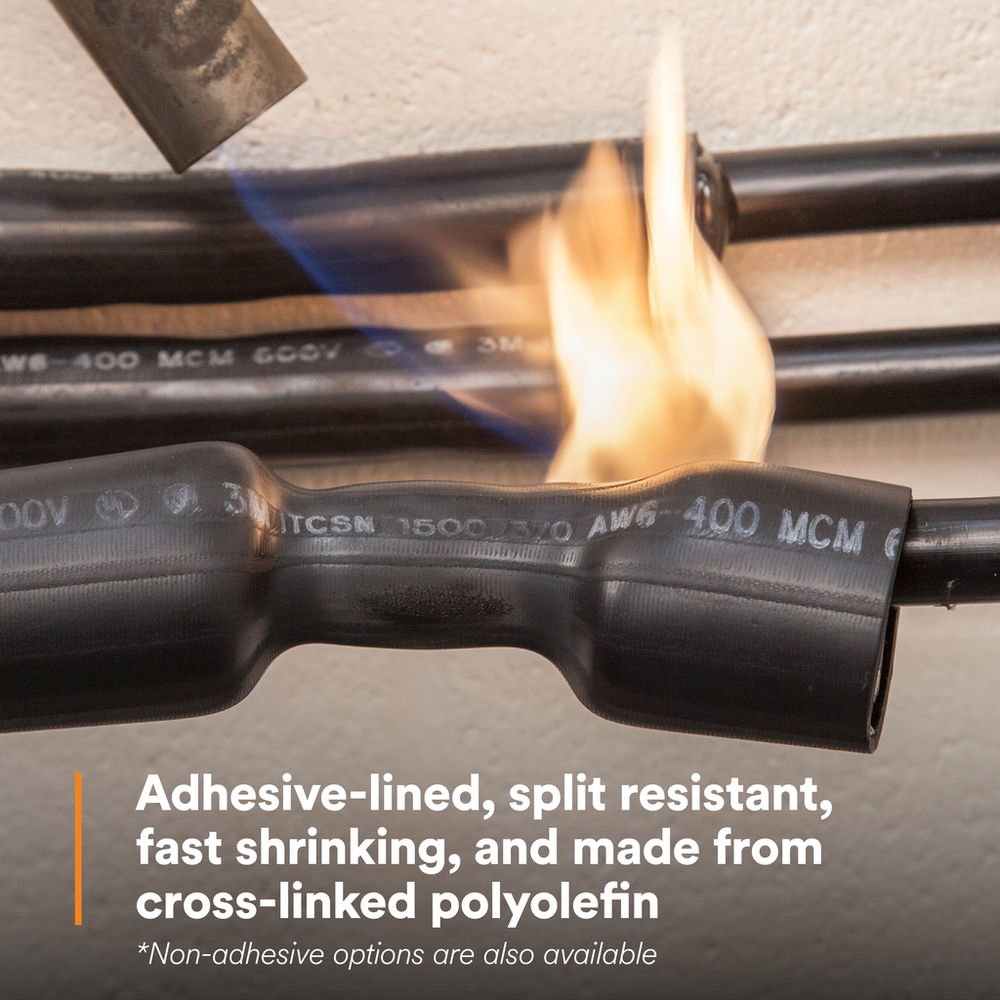

  • DURABLE CONSTRUCTION: Adhesive-lined, split resistant, fast shrinking, and made from cross-linked polyolefin; non-adhesive options are also available
  • WIDE OPERATING TEMPERATURE RANGE: Withstands temperatures between 67–230 °F (55–110 °C)
  • IDEAL FOR A VARIETY OF APPLICATIONS: Used for insulating secondary splices; direct-buried, submersible, or dig in repairs; and physical protection of high voltage, air-insulated connectors or lugs

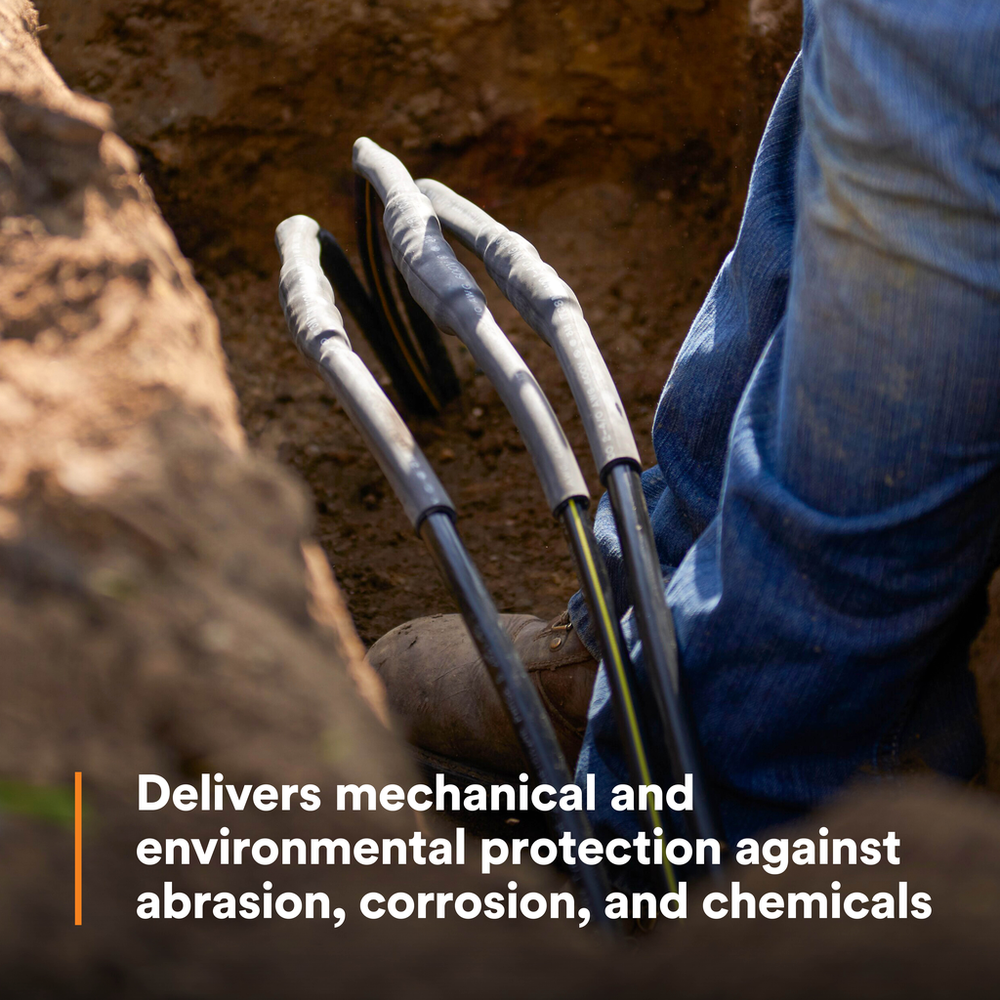

  • HIGHLY RESISTANT: Delivers mechanical and environmental protection against abrasion, corrosion, and chemicals
  • CERTIFICATIONS: UL Listed, CSA Certified, and RoHS 2011/65/EU Compliant
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Inner Diameter After Shrink (Imperial) UOMin
Maximum Conductor Size (Metric)16 mm²
Direct BuryNo
Inner Diameter Before Shrink (Metric)10.16
UL File NumberE-102356
MaterialPolyolefin
Minimum Conductor Size (Imperial)12 AWG
Tubing TypeHeavy Wall
Product FormSleeve-roll
Elongation UOM%
Flame RetardantNo
Inner Diameter Before Shrink (Metric) UOMmm
Inner Diameter After Shrink (Imperial)0.15
Minimum Expanded Tubing I. D.0.4
Specifications MetUL 486D*
Maximum Operating Temperature (Celsius) UomDegree
Product TypeSplice
Overall Length (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit) UOMDegree
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Splice TypeHeat Shrink
Maximum Conductor Size (Imperial)6 AWG
Dielectric Strength (V/mil)500 V/mil
Product ColorBlack
Non-CorrosiveYes
Inner Diameter After Shrink (Metric) UOMmm
Units per Case1.0
Overall Length (Imperial)25.0
Mil SpecAMS-DTL-23053/15,Class 1
Maximum Operating Temperature (Celsius)100.0
Shrink Ratio3:1
Adhesive LinedNo
Overall Length (Imperial) UOMft
Maximum Operating Temperature (Fahrenheit)230.0
Minimum Expanded Tubing I. D. UOMin
Minimum Conductor Size (Metric)4 mm²
Inner Diameter Before Shrink (Imperial) UOMin
Overall Length (Metric)7.62
Inner Diameter Before Shrink (Imperial)0.4
Splice ConfigurationHeat Shrink Heavy-Wall Cable Sleeve (ITCSN)
Inner Diameter After Shrink (Metric)3.81
