3M Products & Supplies

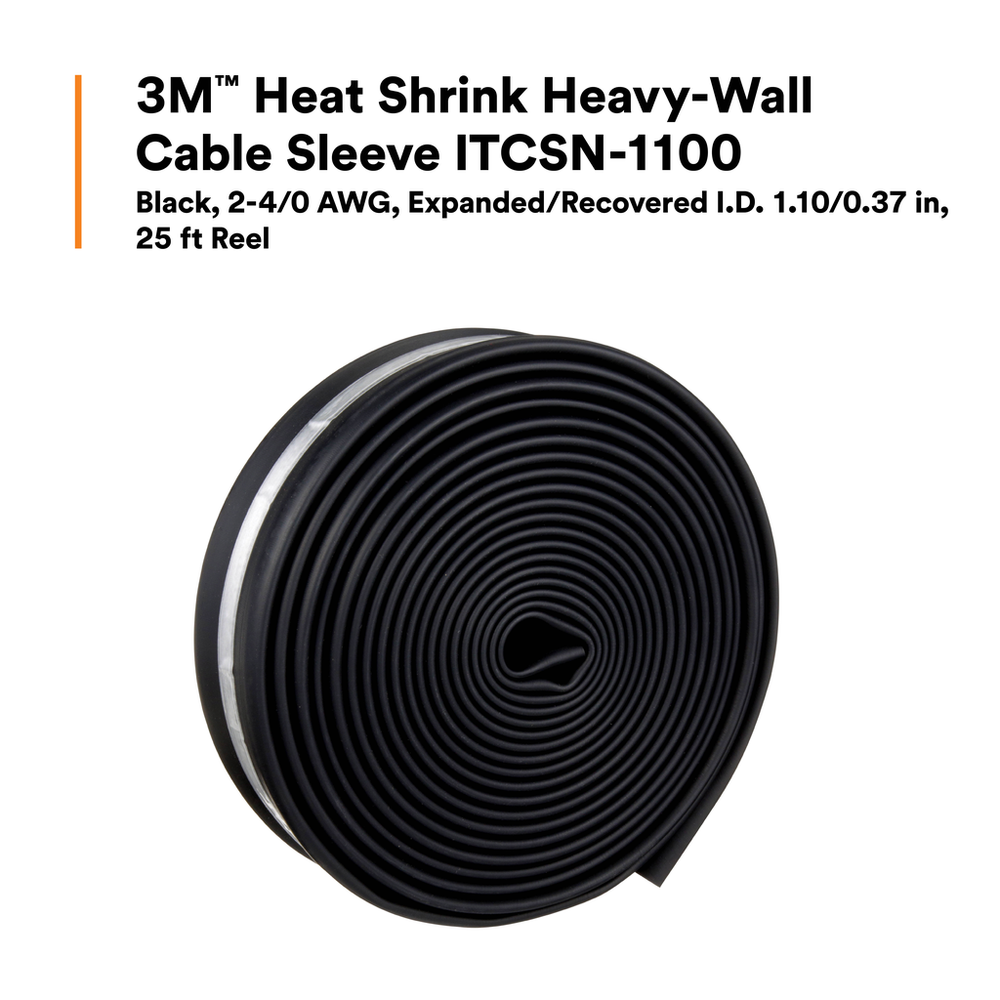

3M™ Heat Shrink Heavy-Wall Cable Sleeve ITCSN-1100, 2-4/0 AWG, Expanded/Recovered I.D. 1.10/0.37 in, 25 ft Reel Length, 1/Case - 7000132371

SKU: 7000132371
MPN: 7000132371
For an accurate lead time please contact us
UPC: 00054007088912
3M ID: 80610229504
5 Digit UPC: 8891
$253.53 each
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Cable Sleeve ITCSN is a heavy wall sleeve that provides abrasion, corrosion and chemical resistance. This sleeve has a 3:1 shrink ratio to offer electrical insulation for 1 kV rated applications. It features a cross linked polyolefin construction that provides moisture seal protection.

Features

  • CERTIFICATIONS: UL Listed, CSA Certified, and RoHS 2011/65/EU Compliant
  • WIDE OPERATING TEMPERATURE RANGE: Withstands temperatures between 67–230 °F (55–110 °C)
  • IDEAL FOR A VARIETY OF APPLICATIONS: Used for insulating secondary splices; direct-buried, submersible, or dig in repairs; and physical protection of high voltage, air-insulated connectors or lugs
  • HIGHLY RESISTANT: Delivers mechanical and environmental protection against abrasion, corrosion, and chemicals
  • DURABLE CONSTRUCTION: Adhesive-lined, split resistant, fast shrinking, and made from cross-linked polyolefin; non-adhesive options are also available
  • VOLTAGE: UL 486D, Voltage Rating 600 V; Applies to: ITCSN 0400, 0800, 1100, 1500, 2000; CSA Certified ITCSN 0400, 0800, 1100, 1500, 2000, 3000
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Mil SpecAMS-DTL-23053/15,Class 1
Units per Case1.0
Inner Diameter Before Shrink (Imperial)1.1
Overall Length (Imperial) UOMft
Minimum Conductor Size (Metric)35 mm²
Inner Diameter After Shrink (Metric)0.94
Overall Length (Metric)7.62
Inner Diameter Before Shrink (Imperial) UOMin
Overall Length (Metric) UOMmm
Direct BuryNo
Elongation UOM%
Product FormSleeve-roll
Minimum Expanded Tubing I. D. UOMin
Minimum Conductor Size (Imperial)2 AWG
Flame RetardantNo
Splice TypeHeat Shrink
Inner Diameter After Shrink (Imperial) UOMin
Product ColorBlack
Maximum Operating Temperature (Celsius) UomDegree
Overall Length (Imperial)25.0
Dielectric Strength (V/mil)500 V/mil
Specifications MetUL 486D*
Minimum Expanded Tubing I. D.1.1
Inner Diameter After Shrink (Imperial)0.37
Inner Diameter After Shrink (Metric) UOMcm²
Non-CorrosiveYes
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Inner Diameter Before Shrink (Metric)2.794
Inner Diameter Before Shrink (Metric) UOMcm²
Product TypeSplice
Adhesive LinedNo
Tubing TypeHeavy Wall
Maximum Operating Temperature (Fahrenheit) UOMDegree
UL File NumberE-102356
MaterialPolyolefin
Maximum Conductor Size (Imperial)4/0 AWG
Maximum Operating Temperature (Celsius)100.0
Maximum Operating Temperature (Fahrenheit)230.0
Splice ConfigurationHeat Shrink Heavy-Wall Cable Sleeve (ITCSN)
Maximum Conductor Size (Metric)120 mm²
Shrink Ratio3:1
