3M Products & Supplies

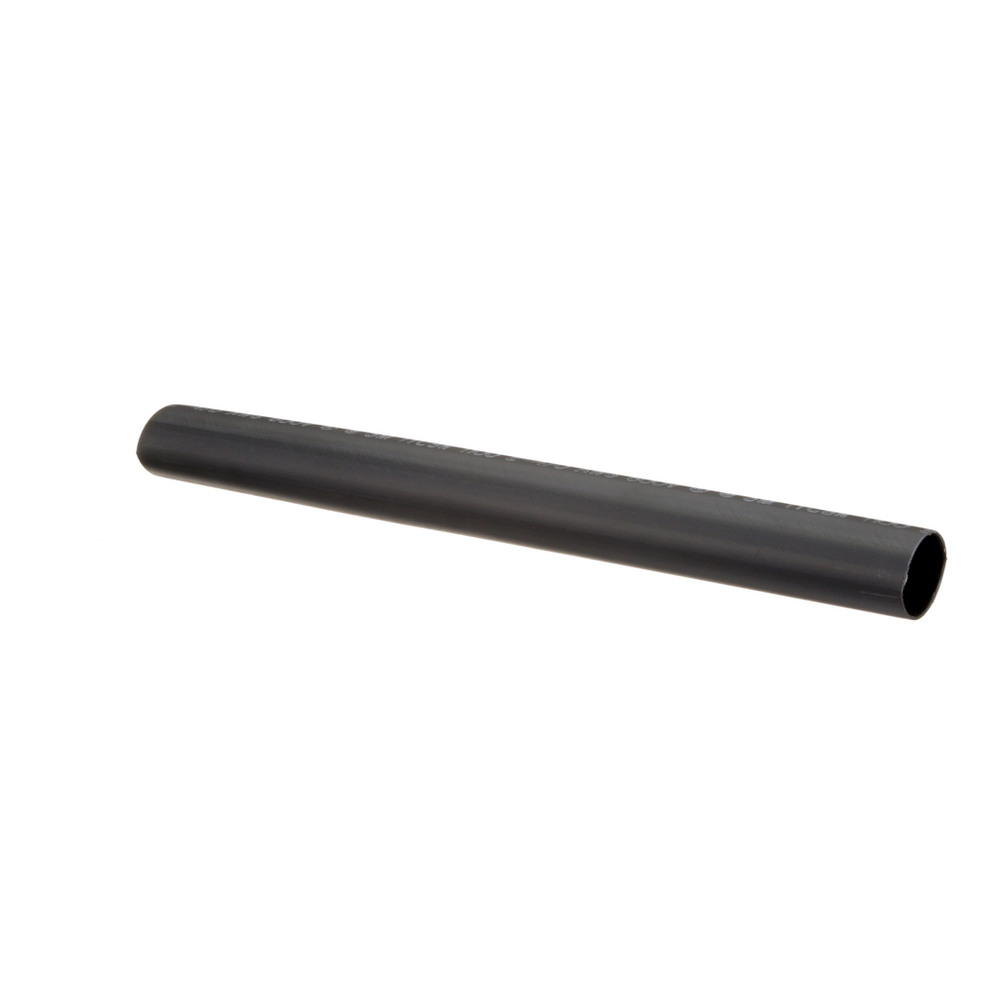

3M™ Heat Shrink Heavy-Wall Cable Sleeve ITCSN-1100, 2-4/0 AWG, Expanded/Recovered I.D. 1.10/0.37 in, 12 in Length, boxed, 10/Case - 7000132372

Sold As: 10-Pack
SKU: 7000132372
MPN: 7000132372
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007088929
3M ID: 80610229512
5 Digit UPC: 8892
$184.29 ($18.43 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Cable Sleeve ITCSN is a heavy wall sleeve that provides abrasion, corrosion and chemical resistance. This sleeve has a 3:1 shrink ratio to offer electrical insulation for 1 kV rated applications. It features a cross linked polyolefin construction that provides moisture seal protection.

Features

  • CERTIFICATIONS: UL Listed, CSA Certified, and RoHS 2011/65/EU Compliant
  • WIDE OPERATING TEMPERATURE RANGE: Withstands temperatures between 67–230 °F (55–110 °C)
  • IDEAL FOR A VARIETY OF APPLICATIONS: Used for insulating secondary splices; direct-buried, submersible, or dig in repairs; and physical protection of high voltage, air-insulated connectors or lugs
  • HIGHLY RESISTANT: Delivers mechanical and environmental protection against abrasion, corrosion, and chemicals
  • VOLTAGE: UL 486D, Voltage Rating 600 V; Applies to: ITCSN 0400, 0800, 1100, 1500, 2000; CSA Certified ITCSN 0400, 0800, 1100, 1500, 2000, 3000
  • DURABLE CONSTRUCTION: Adhesive-lined, split resistant, fast shrinking, and made from cross-linked polyolefin; non-adhesive options are also available
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Inner Diameter Before Shrink (Imperial) UOMin
Inner Diameter Before Shrink (Imperial)1.1
Non-CorrosiveYes
Inner Diameter After Shrink (Imperial)0.37
Inner Diameter After Shrink (Metric) UOMcm²
Maximum Operating Temperature (Fahrenheit) UOMDegree
Inner Diameter Before Shrink (Metric)2.794
Splice TypeHeat Shrink
Inner Diameter Before Shrink (Metric) UOMcm²
Tubing TypeHeavy Wall
Adhesive LinedYes
Overall Length (Metric)305.0
Overall Length (Imperial)12.0
Shrink Ratio3:1
Dielectric Strength (V/mil)500 V/mil
Specifications MetUL 486D*
Overall Length (Imperial) UOMin
Units per Case10.0
Overall Length (Metric) UOMmm
Inner Diameter After Shrink (Imperial) UOMin
Minimum Expanded Tubing I. D.1.1
Maximum Operating Temperature (Fahrenheit)230.0
Flame RetardantNo
Chemical ResistantYes
Minimum Expanded Tubing I. D. UOMin
Splice ConfigurationHeat Shrink Heavy-Wall Cable Sleeve (ITCSN)
Maximum Operating Temperature (Celsius)100.0
Direct BuryYes
Elongation UOM%
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Product TypeSplice
MaterialAdhesive-lined Polyolefin
Product ColorBlack
Inner Diameter After Shrink (Metric)0.94
Maximum Operating Temperature (Celsius) UomDegree
