3M Products & Supplies

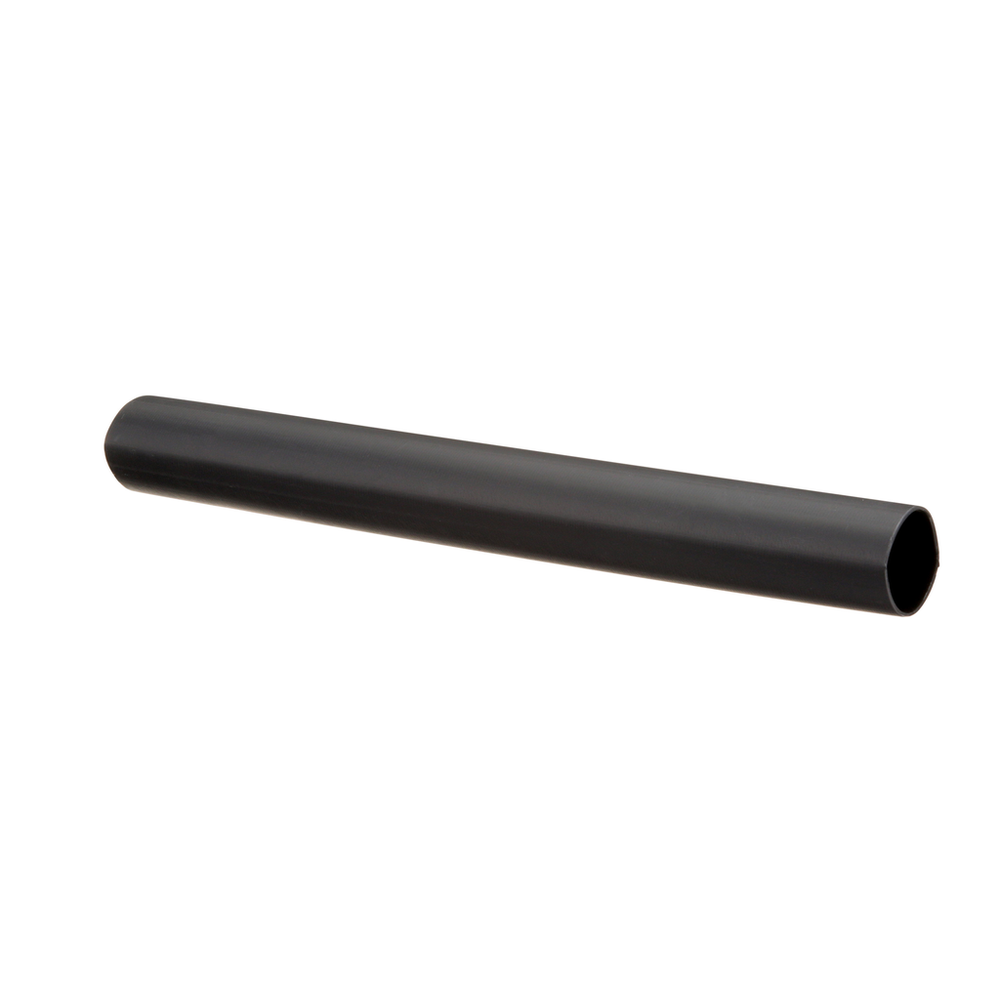

3M™ Heat Shrink Heavy-Wall Cable Sleeve ITCSN-1100, 2-4/0 AWG, Expanded/Recovered I.D. 1.10/0.37 in, 9 in Length, boxed, 25/Case - 7000031474

Sold As: 25-Pack
SKU: 7000031474
MPN: 7000031474
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007088936
3M ID: 80610229520
5 Digit UPC: 8893
$368.79 ($14.75 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Cable Sleeve ITCSN is a heavy wall sleeve that provides abrasion, corrosion and chemical resistance. This sleeve has a 3:1 shrink ratio to offer electrical insulation for 1 kV rated applications. It features a cross linked polyolefin construction that provides moisture seal protection.

Features

  • CERTIFICATIONS: UL Listed, CSA Certified, and RoHS 2011/65/EU Compliant
  • VOLTAGE: UL 486D, Voltage Rating 600 V; Applies to: ITCSN 0400, 0800, 1100, 1500, 2000; CSA Certified ITCSN 0400, 0800, 1100, 1500, 2000, 3000
  • HIGHLY RESISTANT: Delivers mechanical and environmental protection against abrasion, corrosion, and chemicals
  • WIDE OPERATING TEMPERATURE RANGE: Withstands temperatures between 67–230 °F (55–110 °C)
  • IDEAL FOR A VARIETY OF APPLICATIONS: Used for insulating secondary splices; direct-buried, submersible, or dig in repairs; and physical protection of high voltage, air-insulated connectors or lugs
  • DURABLE CONSTRUCTION: Adhesive-lined, split resistant, fast shrinking, and made from cross-linked polyolefin; non-adhesive options are also available
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Inner Diameter Before Shrink (Imperial)1.1
Elongation UOM%
Chemical ResistantYes
Product ColorBlack
Inner Diameter Before Shrink (Metric)2.794
Splice TypeHeat Shrink
Maximum Operating Temperature (Fahrenheit) UOMDegree
Shrink Ratio3:1
Minimum Expanded Tubing I. D.1.1
Inner Diameter After Shrink (Imperial) UOMin
Inner Diameter Before Shrink (Imperial) UOMin
Dielectric Strength (V/mil)500 V/mil
Inner Diameter Before Shrink (Metric) UOMcm²
Units per Case25.0
Overall Length (Metric) UOMmm
Inner Diameter After Shrink (Imperial)0.37
Minimum Expanded Tubing I. D. UOMin
Inner Diameter After Shrink (Metric)0.94
Adhesive LinedYes
Tubing TypeHeavy Wall
Flame RetardantNo
Direct BuryYes
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Non-CorrosiveYes
MaterialAdhesive-lined Polyolefin
Overall Length (Imperial) UOMin
Specifications MetUL 486D*
Overall Length (Metric)228.6
Maximum Operating Temperature (Fahrenheit)230.0
Splice ConfigurationHeat Shrink Heavy-Wall Cable Sleeve (ITCSN)
Overall Length (Imperial)9.0
Maximum Operating Temperature (Celsius)100.0
Maximum Operating Temperature (Celsius) UomDegree
Product TypeSplice
Inner Diameter After Shrink (Metric) UOMcm²
