3M Products & Supplies

3M™ Heat Shrink Heavy-Wall Cable Sleeve ITCSN-1100, 2-4/0 AWG, Expanded/Recovered I.D. 1.10/0.37 in, 6 in Length, boxed, 25/Case - 7000149317

Sold As: 25-Pack
SKU: 7000149317
MPN: 7000149317
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007088943
3M ID: 80610229538
5 Digit UPC: 8894
$305.66 ($12.23 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Cable Sleeve ITCSN is a heavy wall sleeve that provides abrasion, corrosion and chemical resistance. This sleeve has a 3:1 shrink ratio to offer electrical insulation for 1 kV rated applications. It features a cross linked polyolefin construction that provides moisture seal protection.

Features

  • WIDE OPERATING TEMPERATURE RANGE: Withstands temperatures between 67–230 °F (55–110 °C)
  • IDEAL FOR A VARIETY OF APPLICATIONS: Used for insulating secondary splices; direct-buried, submersible, or dig in repairs; and physical protection of high voltage, air-insulated connectors or lugs

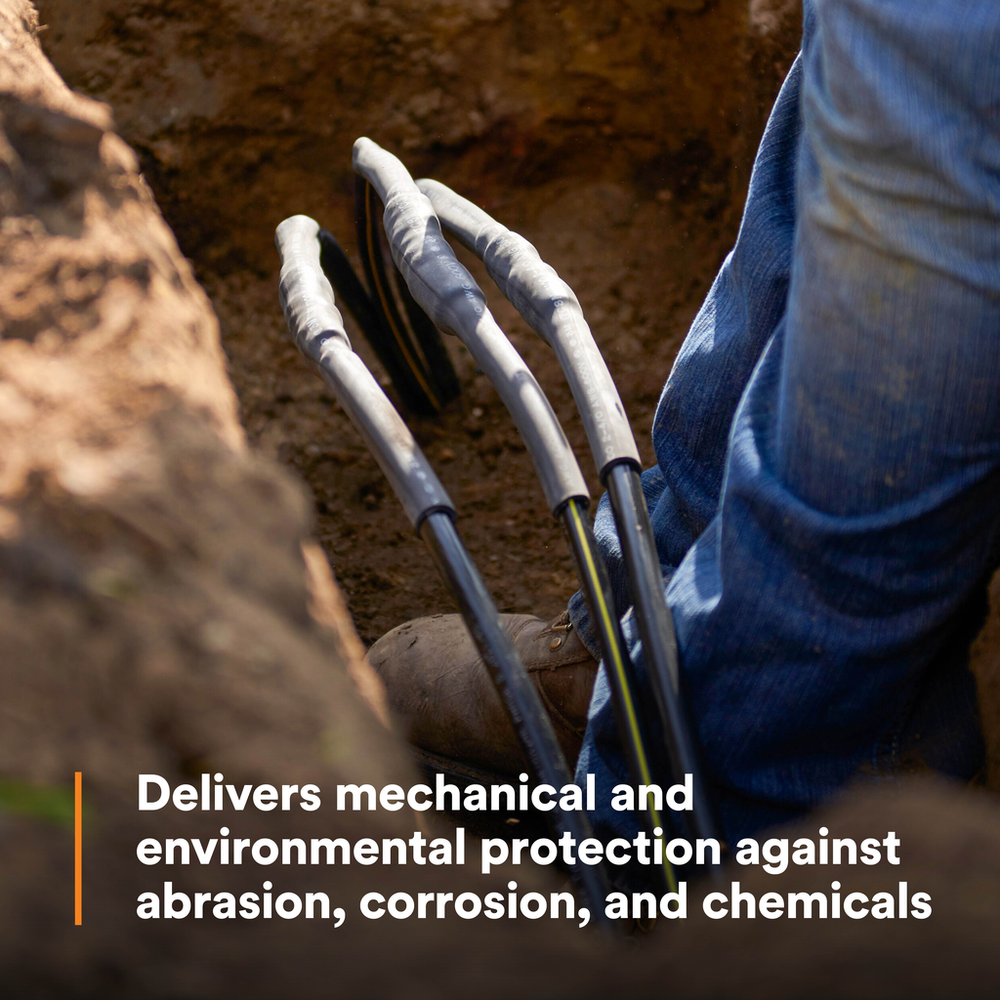

  • HIGHLY RESISTANT: Delivers mechanical and environmental protection against abrasion, corrosion, and chemicals
  • VOLTAGE: UL 486D, Voltage Rating 600 V; Applies to: ITCSN 0400, 0800, 1100, 1500, 2000; CSA Certified ITCSN 0400, 0800, 1100, 1500, 2000, 3000

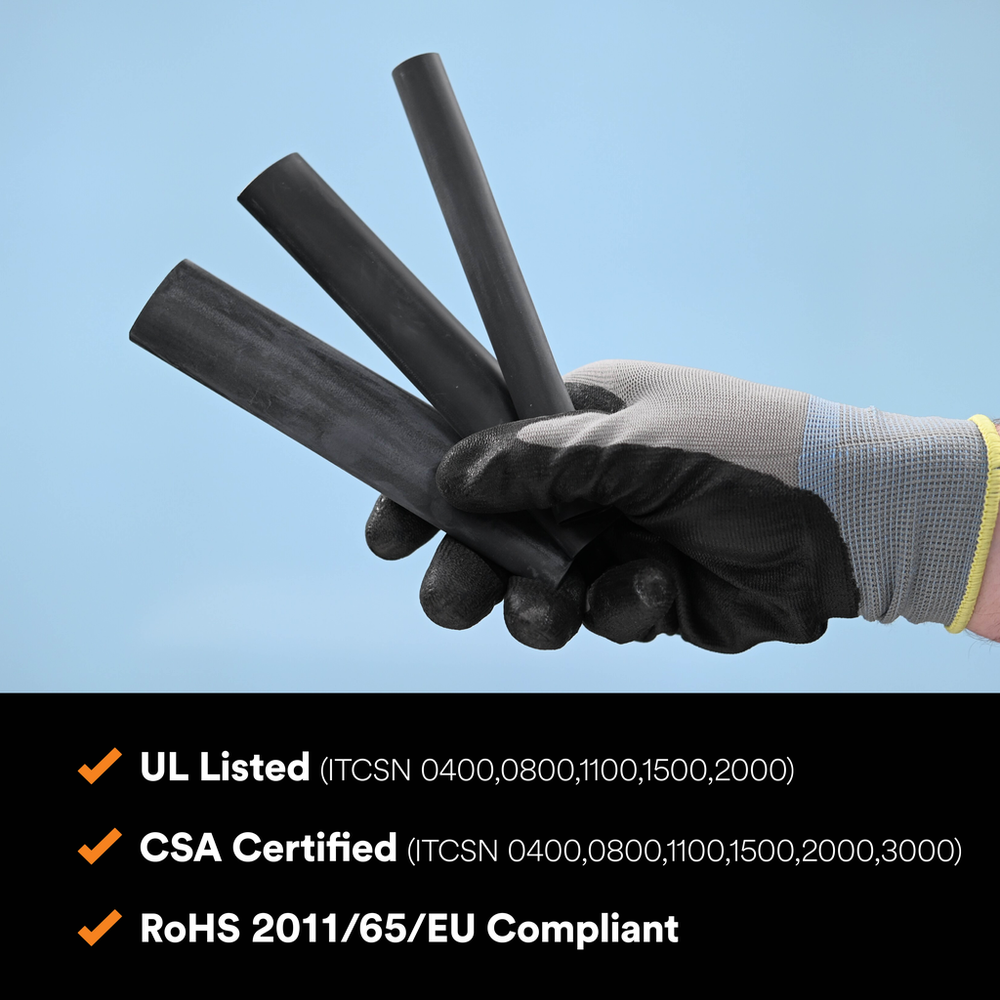

  • CERTIFICATIONS: UL Listed, CSA Certified, and RoHS 2011/65/EU Compliant
  • DURABLE CONSTRUCTION: Adhesive-lined, split resistant, fast shrinking, and made from cross-linked polyolefin; non-adhesive options are also available
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Minimum Expanded Tubing I. D.1.1
Maximum Operating Temperature (Fahrenheit) UOMDegree
MaterialPolyolefin
Inner Diameter Before Shrink (Metric)2.794
Inner Diameter After Shrink (Imperial) UOMin
Elongation UOM%
Overall Width (Imperial)1.1
Inner Diameter After Shrink (Metric)0.94
Inner Diameter After Shrink (Metric) UOMcm²
Direct BuryYes
Shrink Ratio3:1
Maximum Conductor Size (Imperial)4/0 AWG
Overall Width (Imperial) UOMin
Product ColorBlack
Maximum Operating Temperature (Celsius) UomDegree
Adhesive LinedYes
Product TypeSleeve
Minimum Conductor Size (Metric)35 mm²
Maximum Operating Temperature (Fahrenheit)230.0
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Overall Length (Metric)152.0
Specifications MetUL 486D*
Inner Diameter Before Shrink (Metric) UOMcm²
Minimum Expanded Tubing I. D. UOMin
Maximum Conductor Size (Metric)120 mm²
Units per Case25.0
Inner Diameter After Shrink (Imperial)0.37
Non-CorrosiveYes
Minimum Conductor Size (Imperial)2 AWG
Splice TypeHeat Shrink
Maximum Operating Temperature (Celsius)100.0
Inner Diameter Before Shrink (Imperial)1.1
Overall Length (Imperial)6.0
Overall Length (Imperial) UOMin
Overall Length (Metric) UOMmm
Flame RetardantNo
Splice ConfigurationHeat Shrink Heavy-Wall Cable Sleeve (ITCSN)
Inner Diameter Before Shrink (Imperial) UOMin
Dielectric Strength (V/mil)500 V/mil
Tubing TypeHeavy Wall
