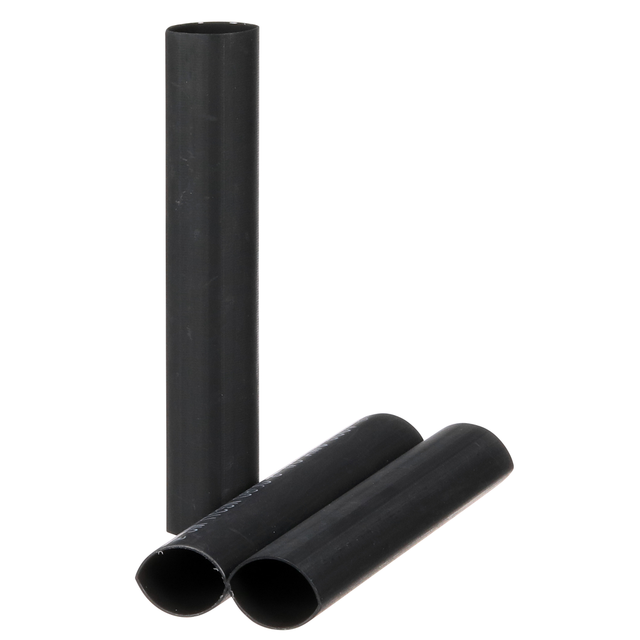

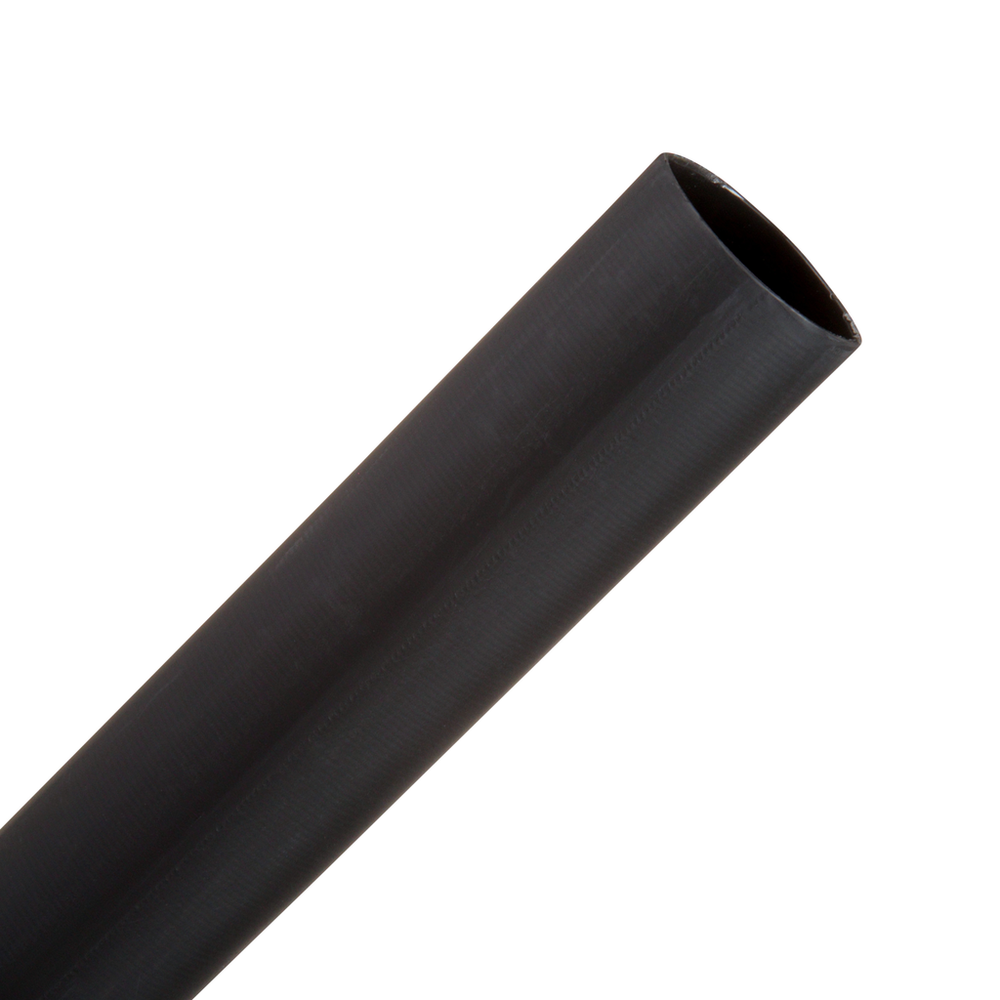

3M™ Heat Shrink Heavy-Wall Cable Sleeve ITCSN-0800, 48 in Length, 20/Case - 7000132156

Name: 3M™ Heat Shrink Heavy-Wall Cable Sleeve ITCSN-0800, 48 in Length, 20/Case - 7000132156
Brand: 3M Products & Supplies
SKU: 7000132156
Price: 768.22 USD
Availability: InStock

Sold As: 20-Pack

SKU: 7000132156

MPN: 7000132156

Stock Item: Stock items typically ship within 2-3 business days

UPC: 00054007089681

3M ID: 80008007223

5 Digit UPC: 8968

$768.22 ($38.41 / Count)

Hurry up! Current stock:

Quantity:

Product Description

3M™ Heat Shrink Cable Sleeve ITCSN is a heavy wall sleeve that provides abrasion, corrosion and chemical resistance. This sleeve has a 3:1 shrink ratio to offer electrical insulation for 1 kV rated applications. It features a cross linked polyolefin construction that provides moisture seal protection.

Features

CERTIFICATIONS: UL Listed, CSA Certified, and RoHS 2011/65/EU Compliant
IDEAL FOR A VARIETY OF APPLICATIONS: Used for insulating secondary splices; direct-buried, submersible, or dig in repairs; and physical protection of high voltage, air-insulated connectors or lugs
HIGHLY RESISTANT: Delivers mechanical and environmental protection against abrasion, corrosion, and chemicals
VOLTAGE: UL 486D, Voltage Rating 600 V; Applies to: ITCSN 0400, 0800, 1100, 1500, 2000; CSA Certified ITCSN 0400, 0800, 1100, 1500, 2000, 3000
WIDE OPERATING TEMPERATURE RANGE: Withstands temperatures between 67–230 °F (55–110 °C)

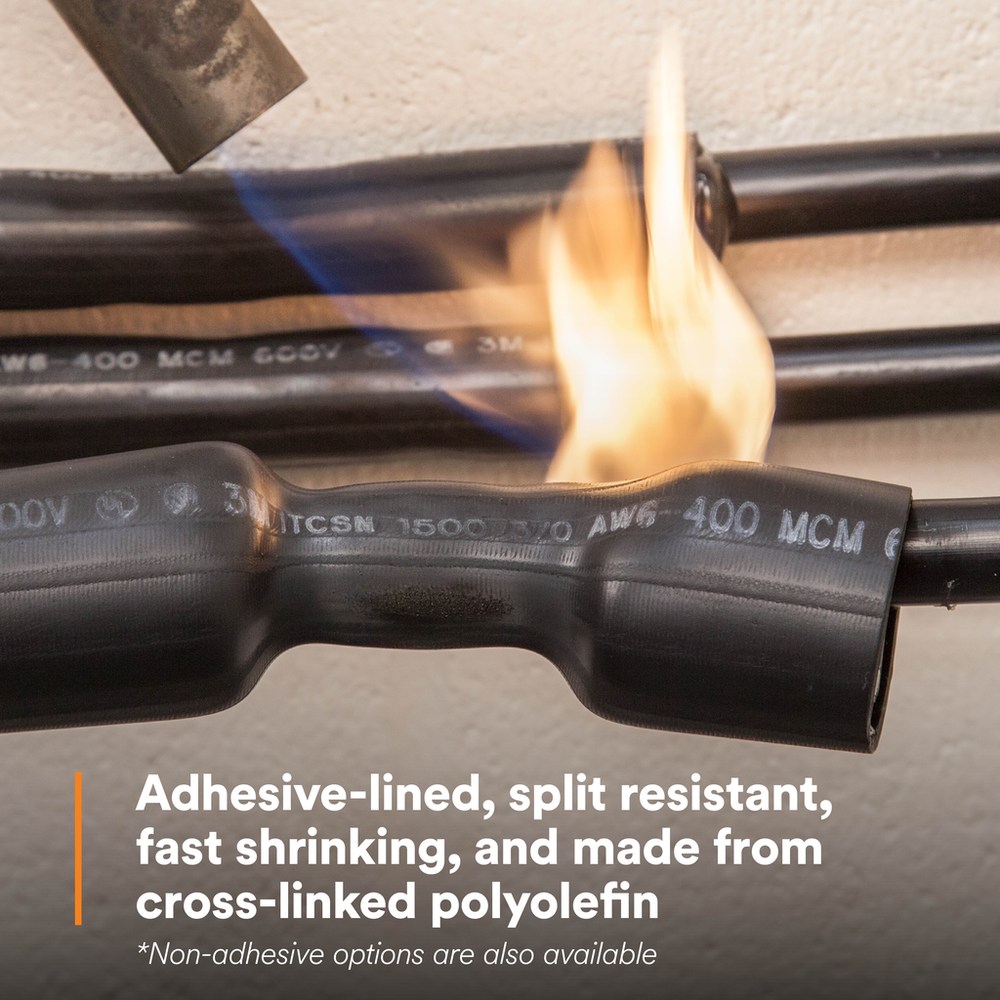

DURABLE CONSTRUCTION: Adhesive-lined, split resistant, fast shrinking, and made from cross-linked polyolefin; non-adhesive options are also available

Spec Sheet

Downloads

Document Brochures

Spec Sheet

Document Catalogs

Specifications

Shelf Life	3600
Country of Origin	United States
Inner Diameter After Shrink (Imperial) UOM	in
Inner Diameter Before Shrink (Metric)	20.3
Specifications Met	UL 486D*
Flame Retardant	No
Material	Polyolefin
Minimum Expanded Tubing I. D. UOM	in
Mil Spec	AMS-DTL-23053/15,Class 1
Product Type	Splice
Overall Length (Metric) UOM	mm
UL File Number	E-102356
Inner Diameter Before Shrink (Metric) UOM	mm
Overall Width (Metric) UOM	mm
RoHS EU Comments	RoHS 2011/65/EU compliant without exemption
Inner Diameter After Shrink (Imperial)	0.2
Overall Length (Imperial)	48.0
Maximum Operating Temperature (Fahrenheit)	230.0
Splice Type	Heat Shrink
Product Color	Black
Product Form	Sleeve-roll
Overall Width (Imperial) UOM	in
Inner Diameter After Shrink (Metric) UOM	mm
Inner Diameter Before Shrink (Imperial) UOM	in
Overall Width (Metric)	1219.2
Inner Diameter After Shrink (Metric)	5.1
Adhesive Lined	Yes
Shrink Ratio	4:1
Overall Width (Imperial)	48.0
Minimum Expanded Tubing I. D.	0.8
Maximum Conductor Size (Metric)	50 mm²
Maximum Operating Temperature (Celsius) Uom	Degree
Units per Case	20.0
Elongation UOM	%
Splice Configuration	Heat Shrink Heavy-Wall Cable Sleeve (ITCSN)
Dielectric Strength (V/mil)	500 V/mil
Inner Diameter Before Shrink (Imperial)	0.8
Maximum Operating Temperature (Fahrenheit) UOM	Degree
Minimum Conductor Size (Metric)	10 mm²
Direct Bury	Yes
Overall Length (Imperial) UOM	in
Maximum Conductor Size (Imperial)	1/0 AWG
Non-Corrosive	Yes
Overall Length (Metric)	1219.0
Tubing Type	Heavy Wall
Maximum Operating Temperature (Celsius)	100.0
Minimum Conductor Size (Imperial)	8 AWG
