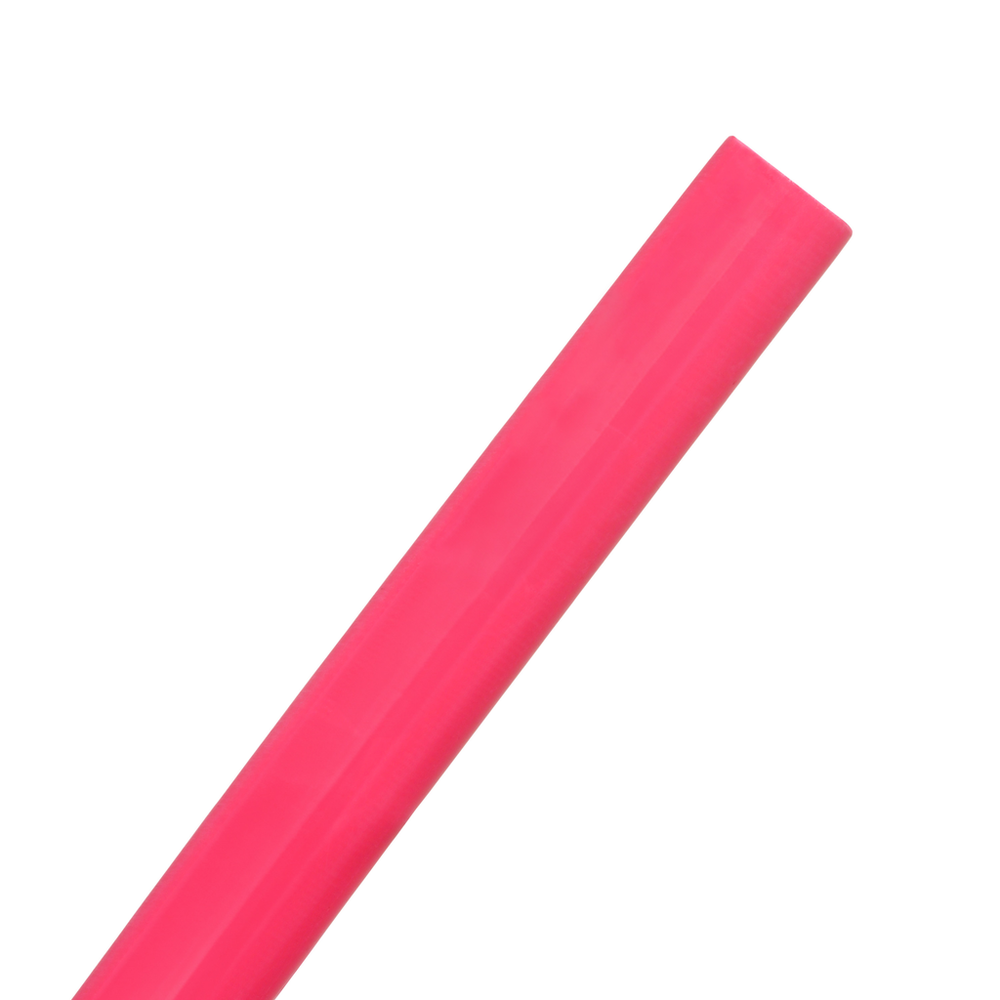

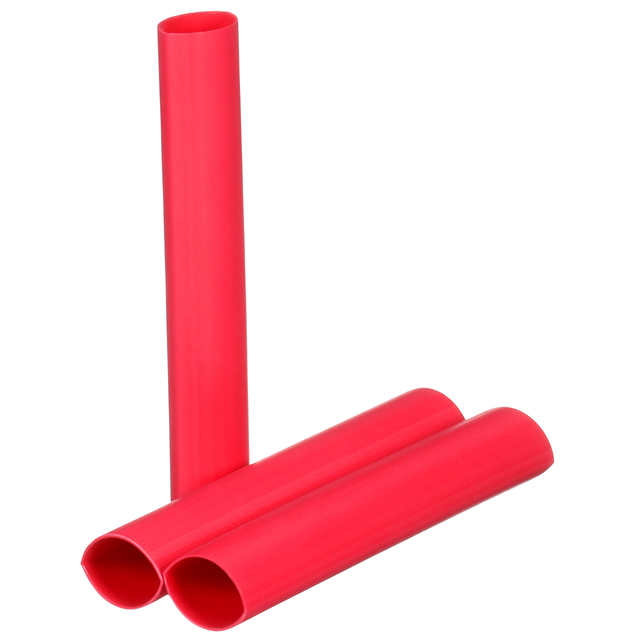

3M™ Heat Shrink Heavy-Wall Cable Sleeve ITCSN-0800, Red 48-in stick, 20/Case - 7010290984

Name: 3M™ Heat Shrink Heavy-Wall Cable Sleeve ITCSN-0800, Red 48-in stick, 20/Case - 7010290984
Brand: 3M Products & Supplies
SKU: 7010290984
Price: 960.12 USD
Availability: InStock

Sold As: 20-Pack

SKU: 7010290984

MPN: 7010290984

Stock Item: Stock items typically ship within 2-3 business days

UPC: 00051128555002

3M ID: 80611268212

5 Digit UPC: 55500

$960.12 ($48.01 / Count)

Hurry up! Current stock:

Quantity:

Product Description

3M™ Heat Shrink Cable Sleeve ITCSN is a heavy wall sleeve that provides abrasion, corrosion and chemical resistance. This sleeve has a 3:1 shrink ratio to offer electrical insulation for 1 kV rated applications. It features a cross linked polyolefin construction that provides moisture seal protection.

Features

VOLTAGE: UL 486D, Voltage Rating 600 V; Applies to: ITCSN 0400, 0800, 1100, 1500, 2000; CSA Certified ITCSN 0400, 0800, 1100, 1500, 2000, 3000
IDEAL FOR A VARIETY OF APPLICATIONS: Used for insulating secondary splices; direct-buried, submersible, or dig in repairs; and physical protection of high voltage, air-insulated connectors or lugs
CERTIFICATIONS: UL Listed, CSA Certified, and RoHS 2011/65/EU Compliant
WIDE OPERATING TEMPERATURE RANGE: Withstands temperatures between 67–230 °F (55–110 °C)
HIGHLY RESISTANT: Delivers mechanical and environmental protection against abrasion, corrosion, and chemicals
DURABLE CONSTRUCTION: Adhesive-lined, split resistant, fast shrinking, and made from cross-linked polyolefin; non-adhesive options are also available

Downloads

Document Catalogs

Document Brochures

Safety Data Sheet

Specifications

Shelf Life	3600
Country of Origin	United States
Direct Bury	No
Product Color	Red
Splice Configuration	Heat Shrink Heavy-Wall Cable Sleeve (ITCSN)
Shrink Ratio	3:1
Inner Diameter Before Shrink (Imperial) UOM	in
Inner Diameter After Shrink (Imperial)	0.2
Maximum Operating Temperature (Fahrenheit) UOM	Degree
Inner Diameter After Shrink (Imperial) UOM	in
Units per Case	20.0
Adhesive Lined	Yes
Maximum Operating Temperature (Fahrenheit)	230.0
Inner Diameter After Shrink (Metric)	5.1
Minimum Expanded Tubing I. D.	0.8
Tubing Type	Heavy Wall
Inner Diameter After Shrink (Metric) UOM	mm
Overall Length (Imperial)	48.0
RoHS EU Comments	RoHS 2011/65/EU compliant without exemption
Flame Retardant	No
Overall Length (Metric)	1219.0
Minimum Expanded Tubing I. D. UOM	in
Overall Length (Metric) UOM	mm
Maximum Operating Temperature (Celsius) Uom	Degree
Product Type	Splice
Non-Corrosive	Yes
Inner Diameter Before Shrink (Imperial)	0.8
Overall Length (Imperial) UOM	in
Elongation UOM	%
Maximum Operating Temperature (Celsius)	110.0
Splice Type	Heat Shrink
Inner Diameter Before Shrink (Metric)	20.3
Material	Polyolefin
Inner Diameter Before Shrink (Metric) UOM	mm
