3M Products & Supplies

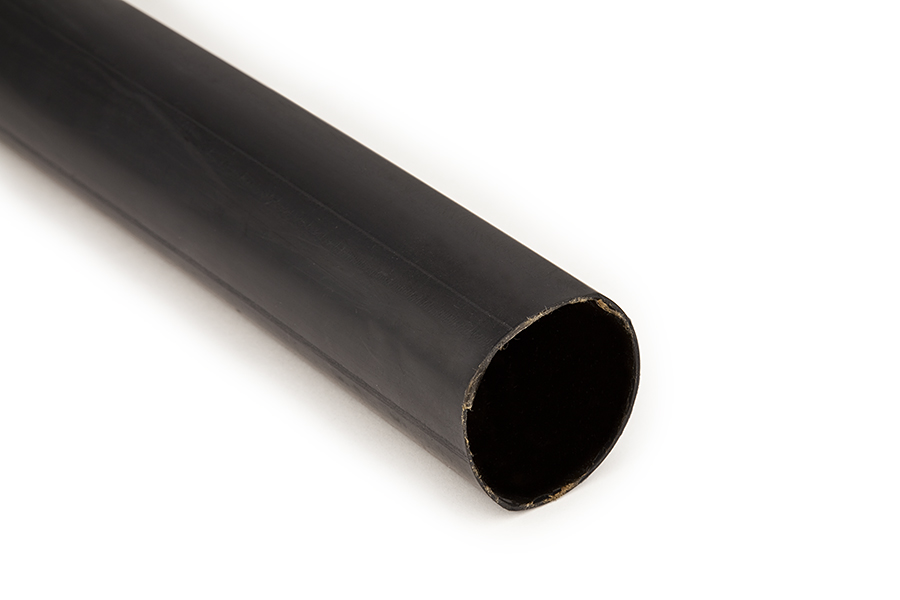

3M™ Heat Shrink Multiple-Wall, Semi-Rigid Polyolefin Tubing MW-3/16-48"-Black-250 Pcs, 48 in length sticks, 250 pieces/case - 7000133601

Sold As: 250-Pack
SKU: 7000133601
MPN: 7000133601
Stock Item: Stock items typically ship within 2-3 business days
UPC: 10051128598228
3M ID: 80611600836
5 Digit UPC: 59822
$1,268.81 ($5.08 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing MW is a multiple wall tubing offering the advantage of integral, adhesive lined construction. This tubing has a 2.5:1 shrink ratio and provides insulation for 600V rated applications. Semi rigid polyolefin construction ensures moisture seal protection for automotive and marine applications.

Features

  • Provides the advantage of integral, adhesive-lined construction
  • Multiple wall is co-extruded and cross-linked to offer a meltable inner wall
  • Made of black semi-rigid polyolefin
  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
  • Rated for 600V applications
  • Offers a skintight fit and strain-relief sealing of electrical connections, wire splices and components
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Imperial)48.0
Operating Temperature Range (Celsius)-55 °C to 110 °C
Flame RetardantNo
Operating Temperature (Fahrenheit)-67 °F to 230 °F
Overall Length (Imperial) UOMin
UL File NumberE-157227
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Overall Length (Metric) UOMmm
Inner Diameter After Shrink (Metric)1.52
Shrink Ratio2.5:1
Inner Diameter Before Shrink (Imperial) UOMin
Heat Shrink TypeAdhesive-Lined Polyolefin Heat Shrink Tubing
Inner Diameter Before Shrink (Metric)4.8
Maximum Operating Temperature (Celsius) UomDegree
Maximum Operating Temperature (Celsius)110.0
Inner Diameter Before Shrink (Imperial)0.187
Minimum Expanded Tubing I. D.0.187
Non-CorrosiveYes
Inner Diameter After Shrink (Imperial) UOMin
Tubing TypeDual Wall (Adhesive Lined)
Inner Diameter After Shrink (Metric) UOMmm
Inner Diameter After Shrink (Imperial)0.06
Elongation UOMdB
Operating Temperature Range (Fahrenheit)-67 °F to 230 °F
Overall Length (Metric)1219.0
Product ColorBlack
Maximum Operating Temperature (Fahrenheit)230.0
Inner Diameter Before Shrink (Metric) UOMmm
Minimum Expanded Tubing I. D. UOMin
MaterialPolyolefin
Operating Temperature (Celsius)-55 °C to 110 °C
