3M Products & Supplies

3M™ Heat Shrink Multiple-Wall, Semi-Rigid Polyolefin Tubing MW-3/16-48"-Gray-250 Pcs, 48 in length sticks, 250 pieces/case - 7010350213

Sold As: 1000-Pack
SKU: 7010350213
MPN: 7010350213
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128599143
3M ID: 80611601750
5 Digit UPC: 59914
$5,124.19 ($5.12 / Count)
Hurry up! Current stock:

Product Description

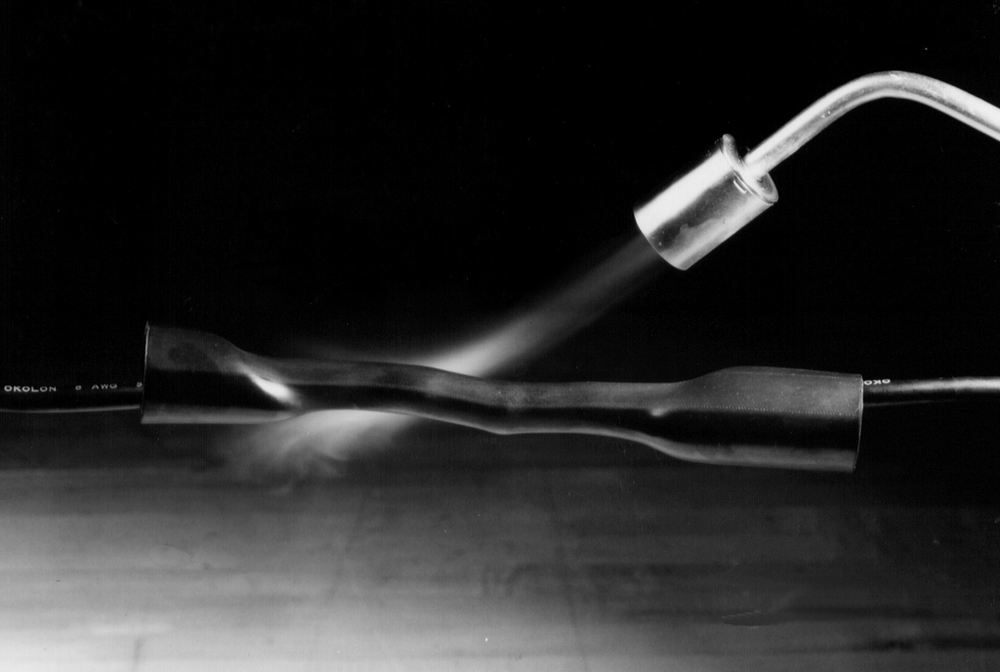

3M™ Heat Shrink Tubing MW is a multiple wall tubing offering the advantage of integral, adhesive lined construction. This tubing has a 2.5:1 shrink ratio and provides insulation for 600V rated applications. Semi rigid polyolefin construction ensures moisture seal protection for automotive and marine applications.

Features

  • Multiple wall is co-extruded and cross-linked to offer a meltable inner wall
  • Rated for 600V applications
  • Made of black semi-rigid polyolefin
  • Provides the advantage of integral, adhesive-lined construction
  • Offers a skintight fit and strain-relief sealing of electrical connections, wire splices and components
  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
MaterialPolyolefin
Inner Diameter Before Shrink (Imperial)0.187
Inner Diameter After Shrink (Metric) UOMmm
Maximum Operating Temperature (Celsius) UomDegree
Inner Diameter Before Shrink (Metric)4.8
Overall Length (Imperial) UOMin
Inner Diameter Before Shrink (Metric) UOMmm
Shrink Ratio2.5:1
Maximum Operating Temperature (Fahrenheit) UOMDegree
Inner Diameter After Shrink (Imperial) UOMin
Inner Diameter After Shrink (Imperial)0.06
Product ColorGreen
Maximum Operating Temperature (Celsius)110.0
Operating Temperature (Celsius)-55 °C to 110 °C
Flame RetardantNo
Operating Temperature (Fahrenheit)-67 °F to 230 °F
Maximum Operating Temperature (Fahrenheit)230.0
Non-CorrosiveYes
Overall Length (Imperial)48.0
UL File NumberE-157227
Tubing TypeDual Wall (Adhesive Lined)
Inner Diameter After Shrink (Metric)1.5
Minimum Expanded Tubing I. D. UOMin
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Minimum Expanded Tubing I. D.0.187
Heat Shrink TypeAdhesive-Lined Polyolefin Heat Shrink Tubing
Inner Diameter Before Shrink (Imperial) UOMin
