3M Products & Supplies

3M™ Heat Shrink Thin-Wall Tubing FP-301-1 1/2-48"-Red-24 Pcs, 48 in Length sticks, 24 pieces/case - 7100034407

Sold As: 480-Pack
SKU: 7100034407
MPN: 7100034407
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128599020
3M ID: 80611601636
5 Digit UPC: 59902
$5,417.48 ($11.29 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)

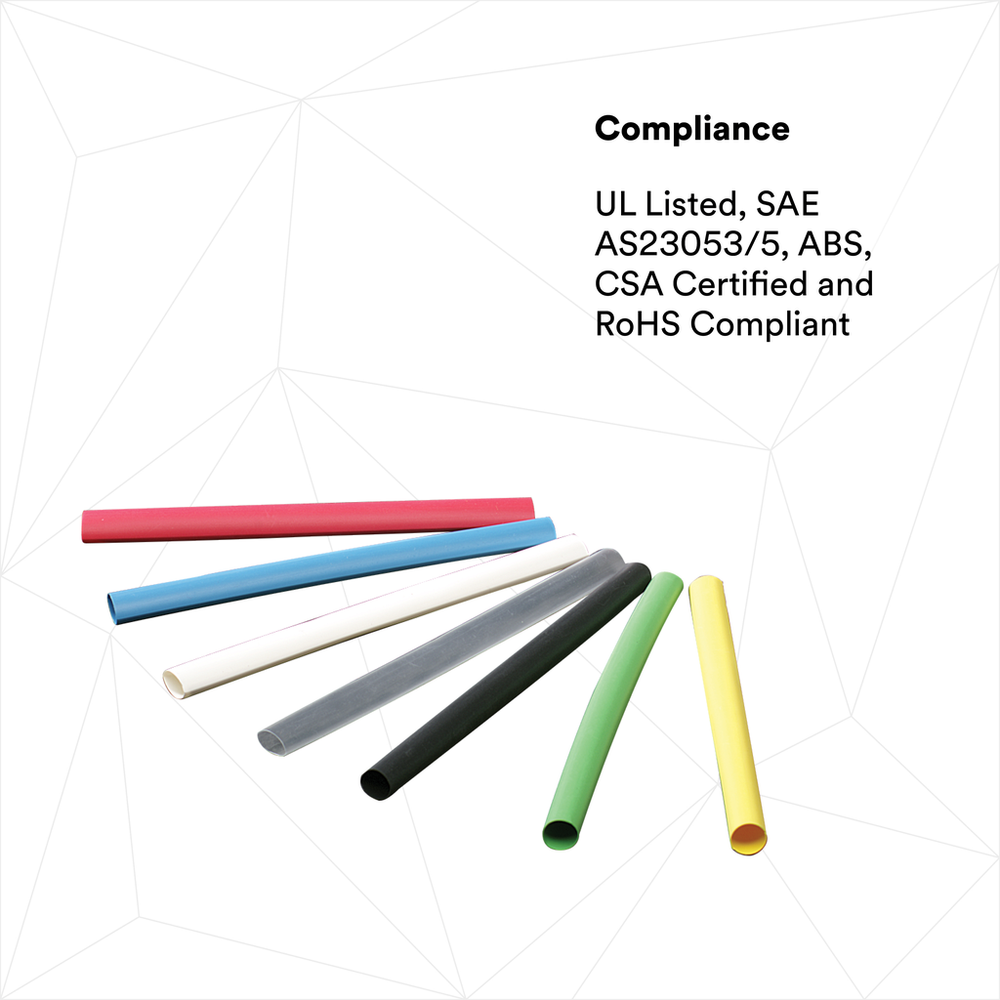

  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Inner Diameter Before Shrink (Imperial)1.5
Adhesive MaterialNone
Overall Width (Imperial)1.5
Overall Width (Metric)38.1
UL Bug Voltage600 Volt
UL ApprovalYes
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Units per Case24.0
Operating Temperature Range (Fahrenheit)-67 °F to 275 °F
Elongation UOMDecibel
Non-CorrosiveYes
MaterialPolyolefin
Operating Temperature (Fahrenheit)-67 °F to 275 °F
Minimum Shrink Temperature (Celsius)100.0
Maximum Operating Temperature (Celsius) UomDegree
Shrink Ratio2:1
Inner Diameter After Shrink (Imperial) UOMin
Overall Length (Imperial)48.0
Maximum Operating Temperature (Fahrenheit)275.0
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Inner Diameter After Shrink (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit) UOMDegree
Mil SpecAMS-DTL-23053/5, Class 1
Flame RetardantYes (except clear)
Overall Length (Metric) UOMmm
Inner Diameter Before Shrink (Metric) UOMmm
Overall Length (Metric)1220.0
Overall Width (Metric) UOMmm
Inner Diameter Before Shrink (Imperial) UOMin
Maximum Operating Temperature (Celsius)135.0
Inner Diameter Before Shrink (Metric)38.1
UL Bug Temperature (Fahrenheit)257 Degrees Fahrenheit
Overall Length (Imperial) UOMin
UL Bug Temperature (Celsius)125 Degrees Celsius
Inner Diameter After Shrink (Metric)19.05
Tubing TypeSingle (Thin) Wall
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Operating Temperature Range (Celsius)-55 °C to +135 °C
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Overall Width (Imperial) UOMin
Inner Diameter After Shrink (Imperial)0.75
