3M Products & Supplies

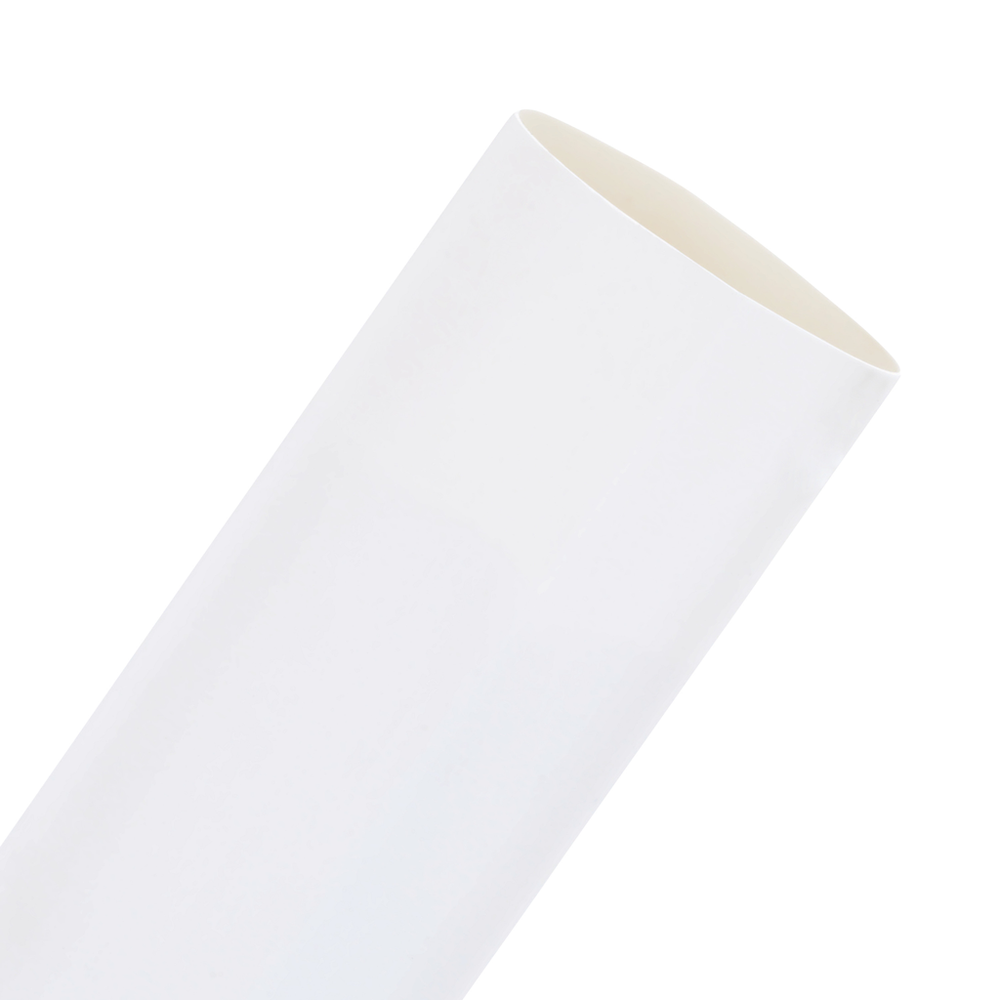

3M™ Heat Shrink Thin-Wall Tubing FP-301-1 1/2-48"-White-24 Pcs, 48 in Length sticks, 24 pieces/case - 7100089246

Sold As: 24-Pack
SKU: 7100089246
MPN: 7100089246
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128599037
3M ID: 80611601644
5 Digit UPC: 59903
$270.87 ($11.29 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Overall Length (Imperial)48.0
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Overall Width (Imperial)1.5
UL Bug Voltage600 Volt
Maximum Operating Temperature (Fahrenheit)275.0
Maximum Operating Temperature (Celsius) UomDegree
Inner Diameter Before Shrink (Imperial) UOMin
Inner Diameter Before Shrink (Metric) UOMmm
Non-CorrosiveYes
Overall Width (Imperial) UOMin
UL ApprovalYes
Overall Width (Metric)38.1
Inner Diameter Before Shrink (Imperial)1.5
Adhesive MaterialNone
Maximum Operating Temperature (Celsius)135.0
UL Bug Temperature (Fahrenheit)257 Degrees Fahrenheit
Inner Diameter After Shrink (Metric)19.05
UL Bug Temperature (Celsius)125 Degrees Celsius
Shrink Ratio2:1
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Shrink Temperature (Celsius)100.0
Inner Diameter After Shrink (Imperial)0.75
Overall Length (Metric) UOMmm
Elongation UOM%
Overall Width (Metric) UOMmm
Overall Length (Metric)1220.0
Inner Diameter After Shrink (Imperial) UOMin
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Mil SpecAMS-DTL-23053/5, Class 2
Flame RetardantYes
Operating Temperature Range (Celsius)-55 °C to +135 °C
Inner Diameter Before Shrink (Metric)38.1
Operating Temperature (Fahrenheit)-67 °F to 275 °F
MaterialPolyolefin
Inner Diameter After Shrink (Metric) UOMmm
Overall Length (Imperial) UOMin
Tubing TypeSingle Wall (Thin)
Product ColorWhite
Operating Temperature Range (Fahrenheit)-67 °F to 275 °F
