3M Products & Supplies

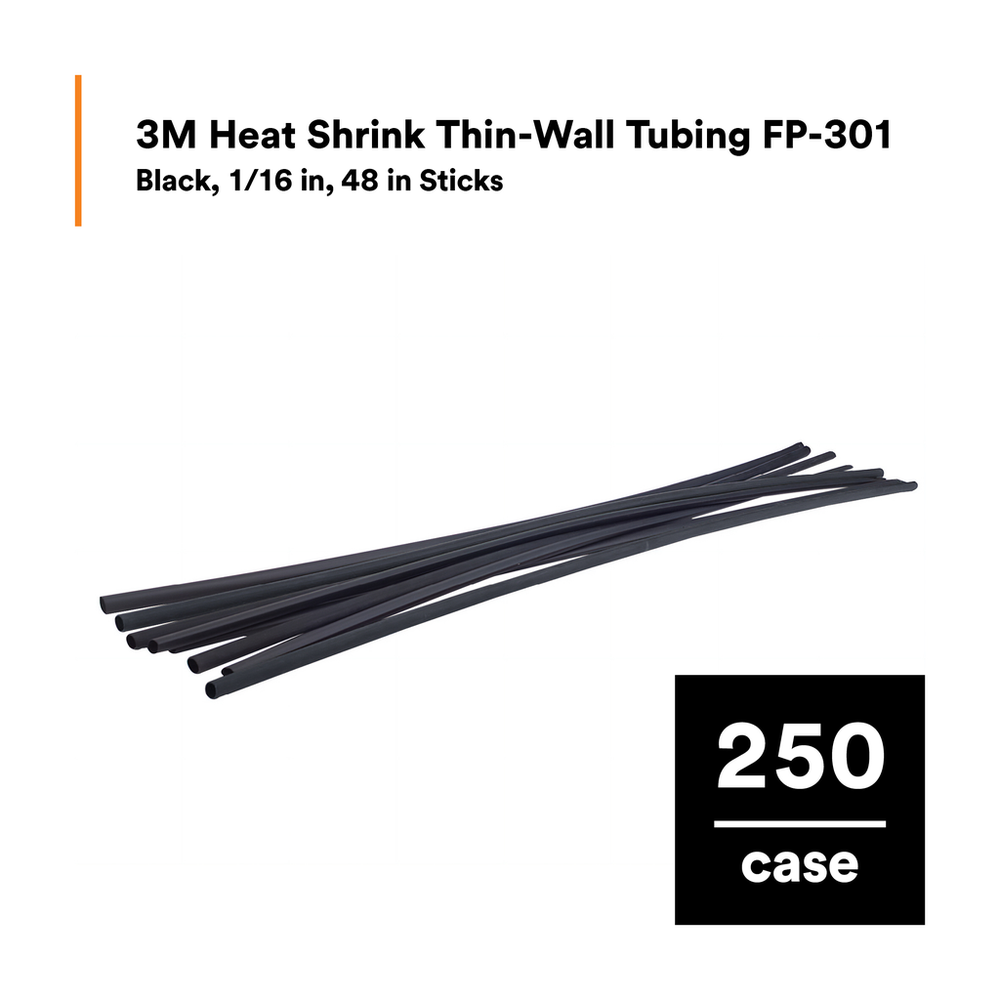

3M™ Heat Shrink Thin-Wall Tubing FP-301-1/16-48"-Black-250 Pcs, 48 in Length sticks, 250 pieces/case - 7100111120

Sold As: 250-Pack
SKU: 7100111120
MPN: 7100111120
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128598085
3M ID: 80611600695
5 Digit UPC: 59808
$512.84 ($2.05 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Inner Diameter Before Shrink (Imperial) UOMin
Operating Temperature (Fahrenheit)-67 °F to 275 °F
Overall Width (Metric)1.59
Non-CorrosiveYes
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Inner Diameter After Shrink (Imperial) UOMin
UL Bug Temperature (Celsius)125 Degrees Celsius
Overall Length (Imperial)48.0
Tubing TypeSingle (Thin) Wall
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Flame RetardantYes
Minimum Expanded Tubing I. D. UOMin
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Product ColorBlack
Adhesive MaterialNone
Overall Length (Imperial) UOMin
Units per Case250.0
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Overall Length (Metric) UOMmm
Inner Diameter After Shrink (Metric)0.79
Elongation UOM%
Inner Diameter Before Shrink (Metric) UOMmm
Maximum Operating Temperature (Celsius) UomDegree
Maximum Operating Temperature (Fahrenheit) UOMDegree
Shrink Ratio2:1
Inner Diameter Before Shrink (Imperial)0.063
Overall Length (Metric)1220.0
Mil SpecAMS-DTL-23053/5, Class 1
MaterialPolyolefin
Maximum Operating Temperature (Fahrenheit)275.0
UL Bug Temperature (Fahrenheit)257 Degrees Fahrenheit
Inner Diameter After Shrink (Imperial)0.031
Minimum Expanded Tubing I. D.1.0
Overall Width (Imperial)0.06
Overall Width (Metric) UOMmm
UL Bug Voltage600 Volt
Overall Width (Imperial) UOMin
Inner Diameter After Shrink (Metric) UOMmm
Inner Diameter Before Shrink (Metric)1.6
Maximum Operating Temperature (Celsius)135.0
