3M Products & Supplies

3M™ Heat Shrink Thin-Wall Tubing FP-301-1/16-48"-Red-250 Pcs, 48 in Length sticks, 250 pieces/case - 7010350203

Sold As: 250-Pack
SKU: 7010350203
MPN: 7010350203
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128598771
3M ID: 80611601388
5 Digit UPC: 59877
$459.71 ($1.84 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications

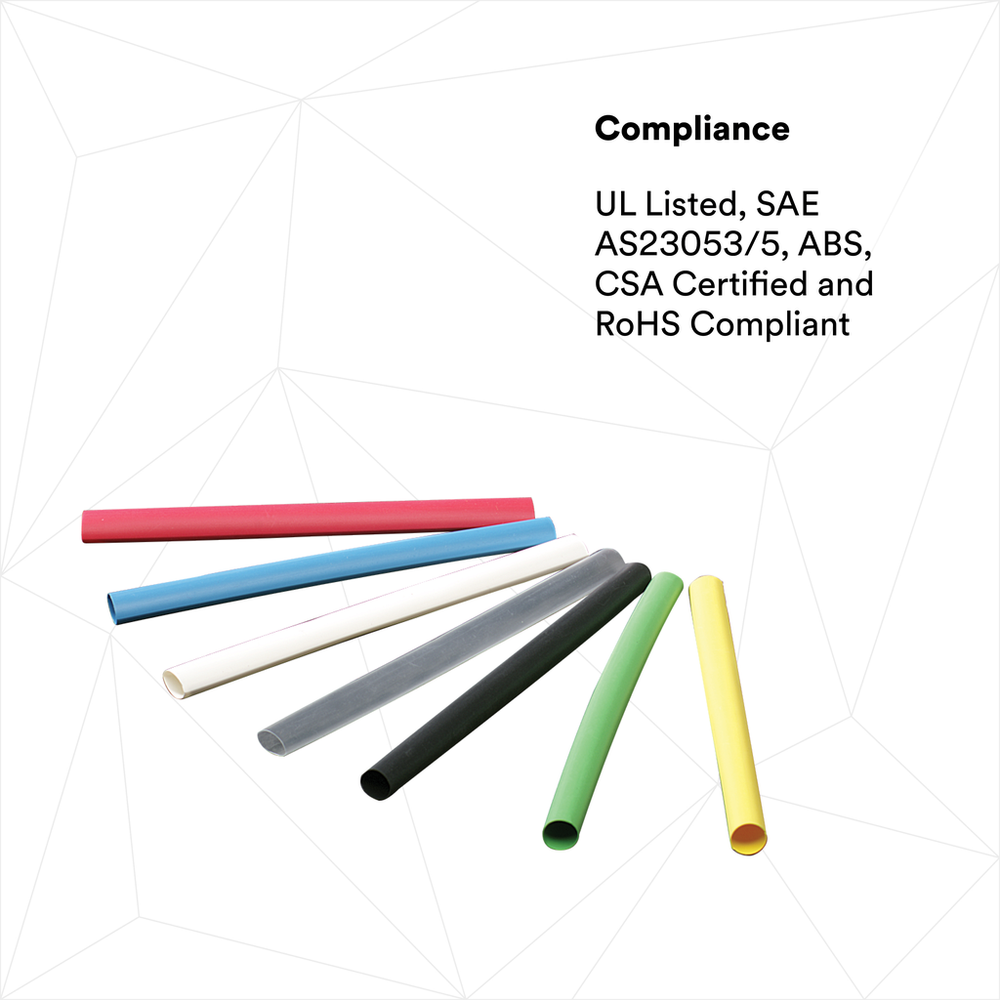

  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant

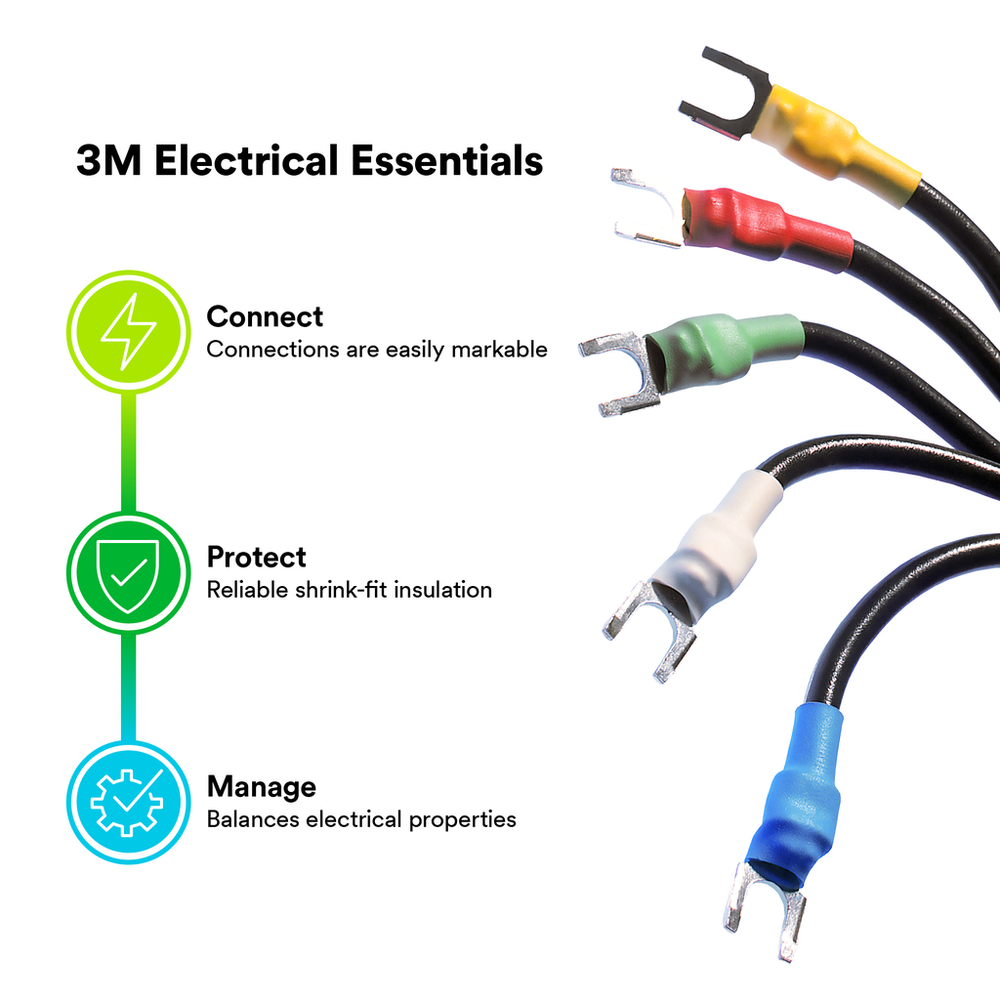

  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Inner Diameter Before Shrink (Metric) UOMmm
Inner Diameter Before Shrink (Metric)1.6
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Inner Diameter After Shrink (Metric)0.79
Overall Width (Metric)1.59
Overall Length (Metric)1220.0
Inner Diameter After Shrink (Metric) UOMmm
Inner Diameter Before Shrink (Imperial)0.063
Minimum Expanded Tubing I. D. UOMin
Overall Width (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit) UOMDegree
Tubing TypeSingle (Thin) Wall
Operating Temperature (Fahrenheit)-67 °F to 275 °F
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Overall Length (Imperial) UOMin
Shrink Ratio2:1
UL Bug Voltage600 Volt
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
MaterialPolyolefin
Elongation UOM%
Overall Length (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit)275.0
Inner Diameter After Shrink (Imperial) UOMin
Minimum Expanded Tubing I. D.1.0
Product ColorRed
Inner Diameter Before Shrink (Imperial) UOMin
Overall Length (Imperial)48.0
Mil SpecAMS-DTL-23053/5, Class 1
UL Bug Temperature (Celsius)125 Degrees Celsius
Maximum Operating Temperature (Celsius)135.0
Adhesive MaterialNone
Inner Diameter After Shrink (Imperial)0.031
Overall Width (Imperial) UOMin
Flame RetardantYes
Overall Width (Imperial)0.06
Non-CorrosiveYes
UL Bug Temperature (Fahrenheit)257 Degrees Fahrenheit
Maximum Operating Temperature (Celsius) UomDegree
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
