3M Products & Supplies

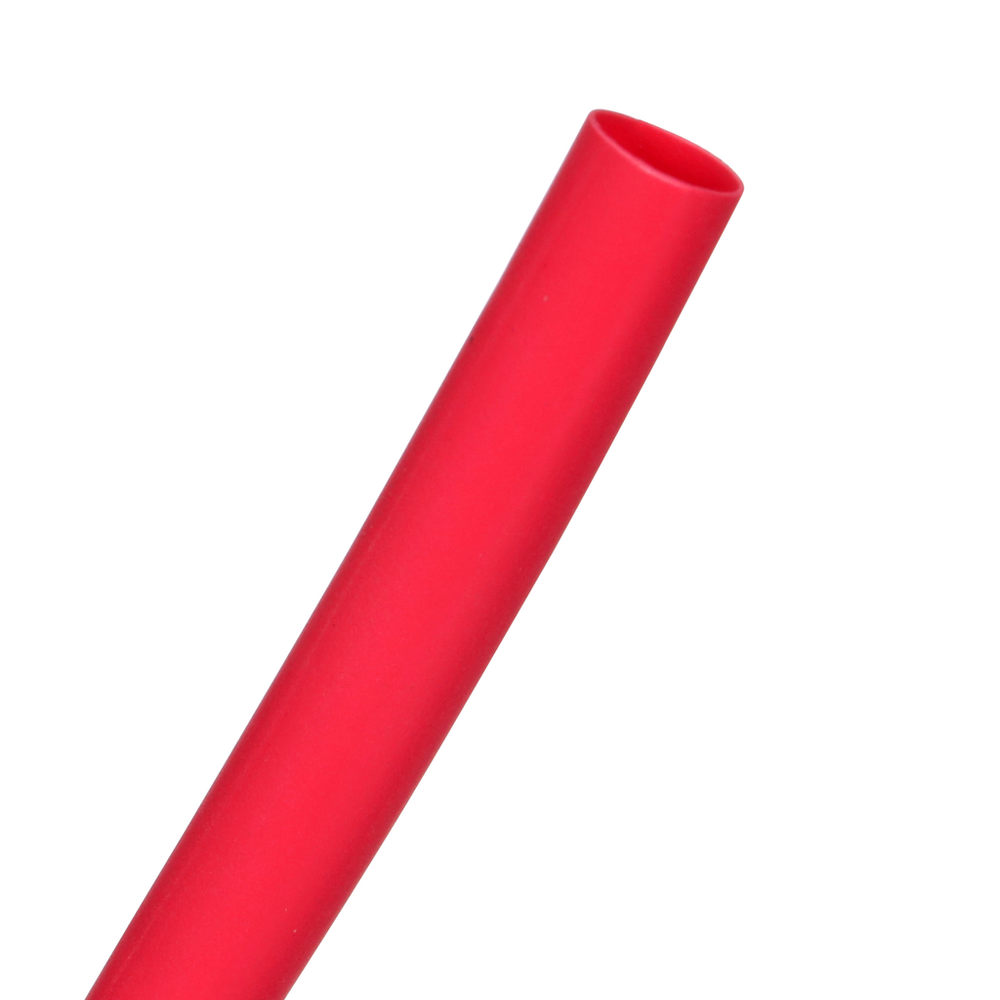

3M™ Heat Shrink Thin-Wall Tubing FP-301-1/8-48"-Red-250 Pcs, 48 in Length sticks, 250 pieces/case - 7010400811

Sold As: 250-Pack
SKU: 7010400811
MPN: 7010400811
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128598306
3M ID: 80611600919
5 Digit UPC: 59830
$610.89 ($2.44 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Overall Length (Imperial) UOMin
Overall Length (Metric) UOMmm
Overall Width (Metric) UOMmm
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Maximum Operating Temperature (Fahrenheit) UOMDegree
Inner Diameter After Shrink (Metric)1.57
Overall Width (Imperial) UOMin
UL Bug Voltage600 Volt
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Overall Width (Imperial)0.13
Maximum Operating Temperature (Fahrenheit)275.0
Inner Diameter After Shrink (Imperial)0.062
Flame RetardantYes
UL Bug Temperature (Fahrenheit)257 Degrees Fahrenheit
Elongation UOM%
Shrink Ratio2:1
Non-CorrosiveYes
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Overall Length (Imperial)48.0
Minimum Expanded Tubing I. D. UOMin
Overall Length (Metric)1220.0
MaterialPolyolefin
Product ColorRed
Inner Diameter After Shrink (Imperial) UOMin
Mil SpecAMS-DTL-23053/5, Class 1
UL Bug Temperature (Celsius)125 Degrees Celsius
Maximum Operating Temperature (Celsius) UomDegree
Inner Diameter Before Shrink (Metric) UOMmm
Adhesive MaterialNone
Overall Width (Metric)3.18
Inner Diameter After Shrink (Metric) UOMmm
Maximum Operating Temperature (Celsius)135.0
Minimum Expanded Tubing I. D.1.0
Operating Temperature (Fahrenheit)-67 °F to 275 °F
Tubing TypeSingle (Thin) Wall
Inner Diameter Before Shrink (Imperial) UOMin
Inner Diameter Before Shrink (Imperial)0.125
Inner Diameter Before Shrink (Metric)3.18
