3M Products & Supplies

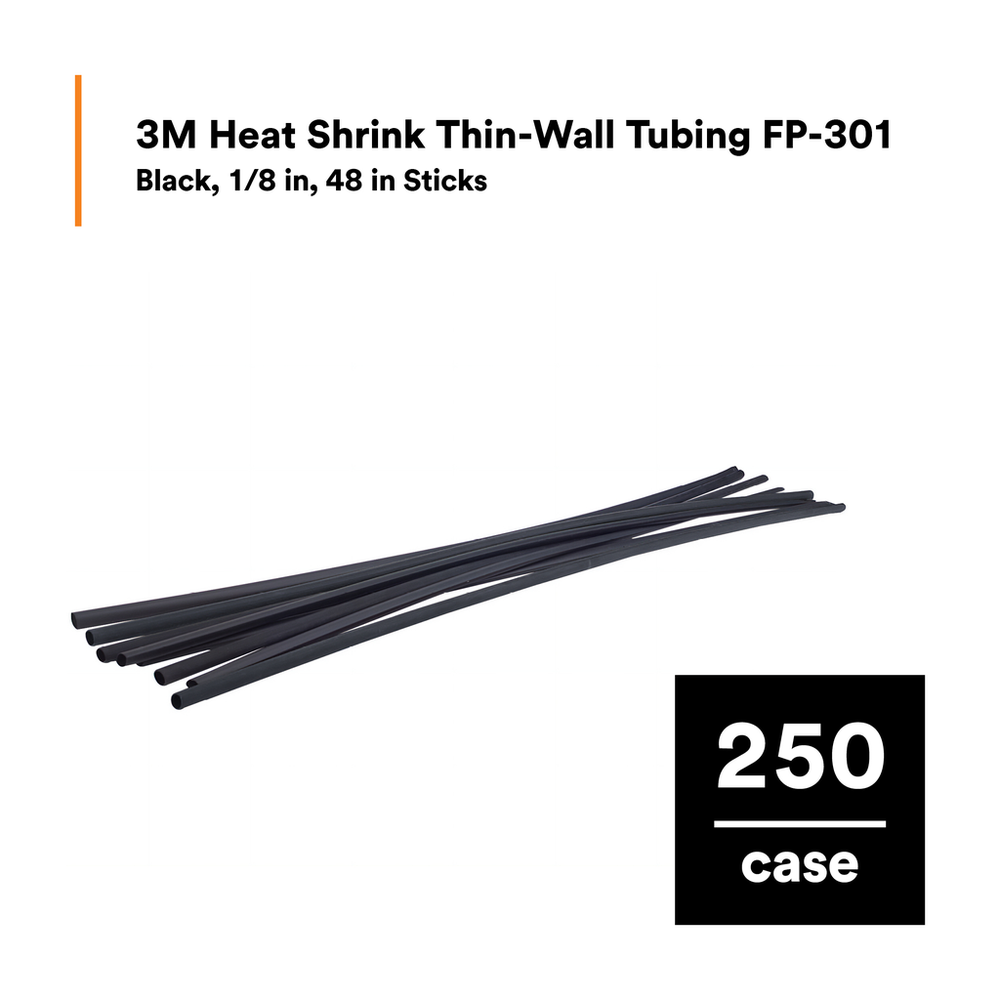

3M™ Heat Shrink Thin-Wall Tubing FP-301-1/8-48"-Black-250 Pcs, 48 in Length sticks, 250 pieces/case - 7100111119

Sold As: 250-Pack
SKU: 7100111119
MPN: 7100111119
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128598283
3M ID: 80611600893
5 Digit UPC: 59828
$588.43 ($2.35 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Inner Diameter Before Shrink (Imperial) UOMin
UL Bug Temperature (Celsius)125 Degrees Celsius
Tubing TypeSingle (Thin) Wall
Maximum Operating Temperature (Fahrenheit)275.0
Overall Length (Metric) UOMmm
Inner Diameter After Shrink (Metric) UOMmm
Inner Diameter Before Shrink (Metric) UOMmm
Product ColorBlack
Maximum Operating Temperature (Celsius)135.0
Overall Width (Imperial) UOMin
Minimum Expanded Tubing I. D.1.0
Adhesive MaterialNone
UL Bug Temperature (Fahrenheit)257 Degrees Fahrenheit
Overall Length (Imperial) UOMin
Maximum Operating Temperature (Celsius) UomDegree
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Overall Length (Imperial)48.0
Inner Diameter After Shrink (Imperial)0.062
Shrink Ratio2:1
Inner Diameter After Shrink (Metric)1.57
Overall Width (Metric) UOMmm
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Inner Diameter Before Shrink (Metric)3.18
Units per Case250.0
Overall Width (Imperial)0.13
Flame RetardantYes
Mil SpecAMS-DTL-23053/5, Class 1
UL Bug Voltage600 Volt
Overall Width (Metric)3.18
Overall Length (Metric)1220.0
Non-CorrosiveYes
MaterialPolyolefin
Maximum Operating Temperature (Fahrenheit) UOMDegree
Inner Diameter Before Shrink (Imperial)0.125
Operating Temperature (Fahrenheit)-67 °F to 275 °F
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Elongation UOM%
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Inner Diameter After Shrink (Imperial) UOMin
Minimum Expanded Tubing I. D. UOMin
