3M Products & Supplies

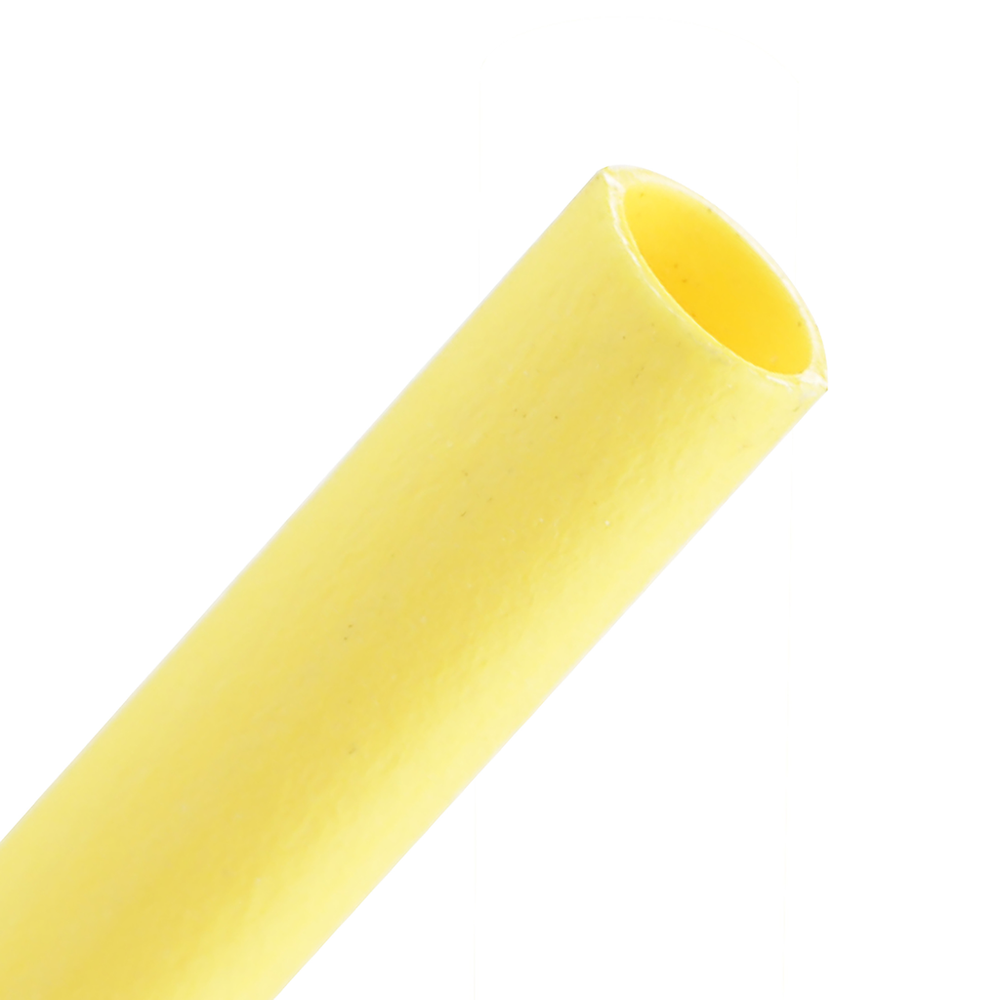

3M™ Heat Shrink Thin-Wall Tubing FP-301-1/8-48"-Yellow-250 Pcs, 48 in Length sticks, 250 pieces/case - 7010350205

Sold As: 250-Pack
SKU: 7010350205
MPN: 7010350205
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128598849
3M ID: 80611601453
5 Digit UPC: 59884
$557.79 ($2.23 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Inner Diameter Before Shrink (Imperial) UOMin
Overall Length (Imperial) UOMin
Inner Diameter After Shrink (Metric)1.57
Inner Diameter After Shrink (Metric) UOMmm
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Inner Diameter Before Shrink (Metric)3.18
Maximum Operating Temperature (Fahrenheit)275.0
Inner Diameter After Shrink (Imperial)0.062
Maximum Operating Temperature (Celsius)135.0
Tubing TypeSingle (Thin) Wall
MaterialPolyolefin
Shrink Ratio2:1
Elongation UOM%
Product ColorYellow
Overall Width (Metric) UOMmm
Overall Length (Imperial)48.0
Operating Temperature (Fahrenheit)-67 °F to 275 °F
Inner Diameter After Shrink (Imperial) UOMin
Maximum Operating Temperature (Celsius) UomDegree
Overall Width (Metric)3.18
UL Bug Voltage600 Volt
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Expanded Tubing I. D.1.0
Minimum Expanded Tubing I. D. UOMin
Overall Width (Imperial)0.13
Mil SpecAMS-DTL-23053/5, Class 1
Inner Diameter Before Shrink (Metric) UOMmm
Overall Length (Metric) UOMmm
UL Bug Temperature (Celsius)125 Degrees Celsius
UL Bug Temperature (Fahrenheit)257 Degrees Fahrenheit
Adhesive MaterialNone
Overall Width (Imperial) UOMin
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Inner Diameter Before Shrink (Imperial)0.125
Non-CorrosiveYes
Overall Length (Metric)1220.0
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Flame RetardantYes
