3M Products & Supplies

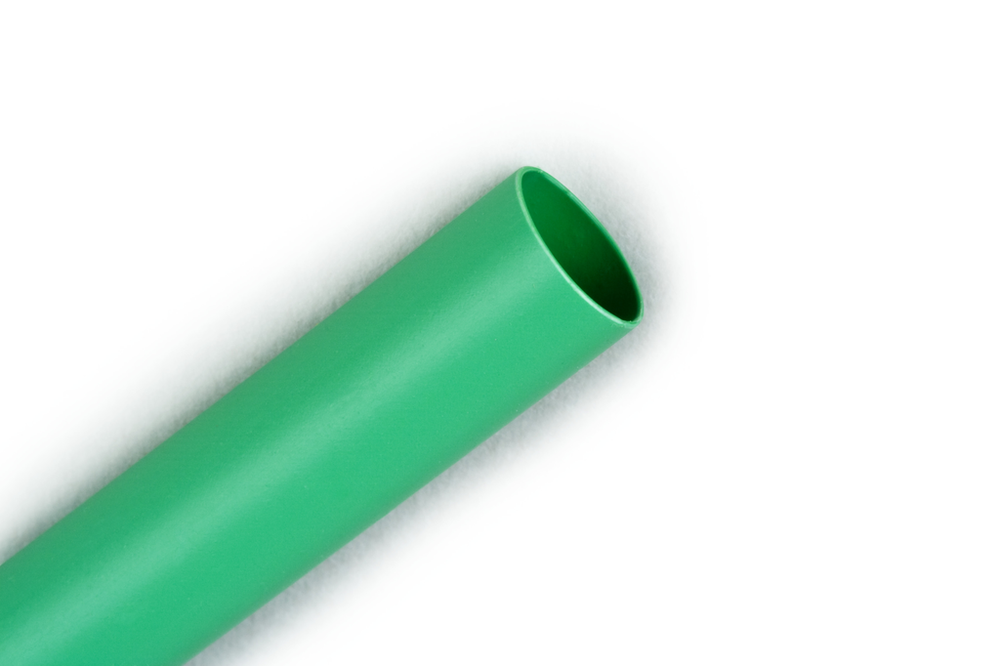

3M™ Heat Shrink Thin-Wall Tubing FP-301-1/16-48"-Green-250 Pcs, 48 in Length sticks, 250 pieces/case - 7010350222

Sold As: 250-Pack
SKU: 7010350222
MPN: 7010350222
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128599488
3M ID: 80611602097
5 Digit UPC: 59948
$512.84 ($2.05 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)

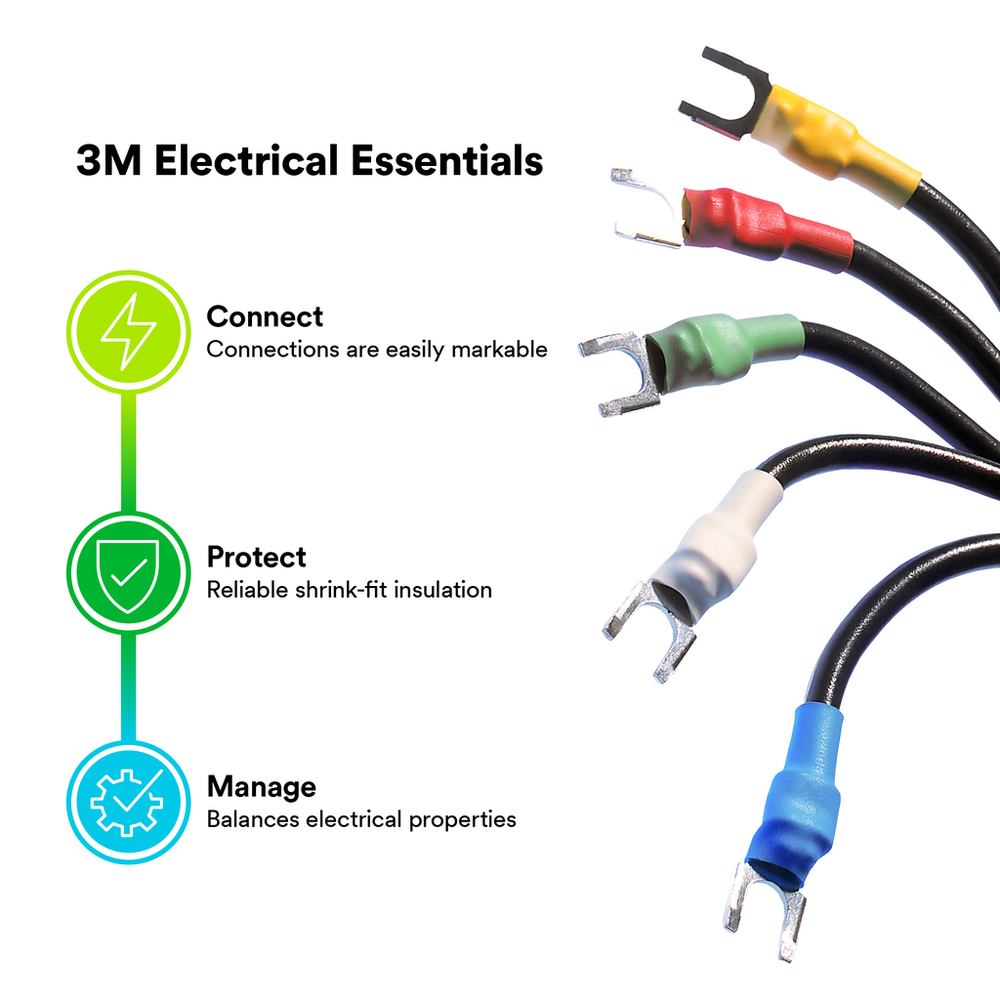

  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
MaterialPolyolefin
Mil SpecAMS-DTL-23053/5, Class 1
Overall Width (Metric)1.59
Non-CorrosiveYes
Inner Diameter Before Shrink (Metric)1.6
Overall Width (Imperial)0.06
Flame RetardantYes
Tubing TypeSingle (Thin) Wall
Overall Length (Metric)1220.0
Maximum Operating Temperature (Celsius)135.0
Inner Diameter After Shrink (Imperial) UOMin
Inner Diameter After Shrink (Metric)0.79
Inner Diameter After Shrink (Metric) UOMmm
Inner Diameter Before Shrink (Imperial)0.063
Operating Temperature (Fahrenheit)-67 °F to 275 °F
Inner Diameter After Shrink (Imperial)0.031
Elongation UOM%
Overall Length (Metric) UOMmm
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Overall Width (Metric) UOMmm
UL Bug Temperature (Fahrenheit)257 Degrees Fahrenheit
Minimum Expanded Tubing I. D.1.0
Minimum Expanded Tubing I. D. UOMin
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Maximum Operating Temperature (Fahrenheit)275.0
UL Bug Voltage600 Volt
Product ColorGreen
UL Bug Temperature (Celsius)125 Degrees Celsius
Overall Length (Imperial) UOMin
Overall Width (Imperial) UOMin
Overall Length (Imperial)48.0
Inner Diameter Before Shrink (Imperial) UOMin
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Adhesive MaterialNone
Maximum Operating Temperature (Celsius) UomDegree
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Shrink Ratio2:1
Inner Diameter Before Shrink (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit) UOMDegree
