3M Products & Supplies

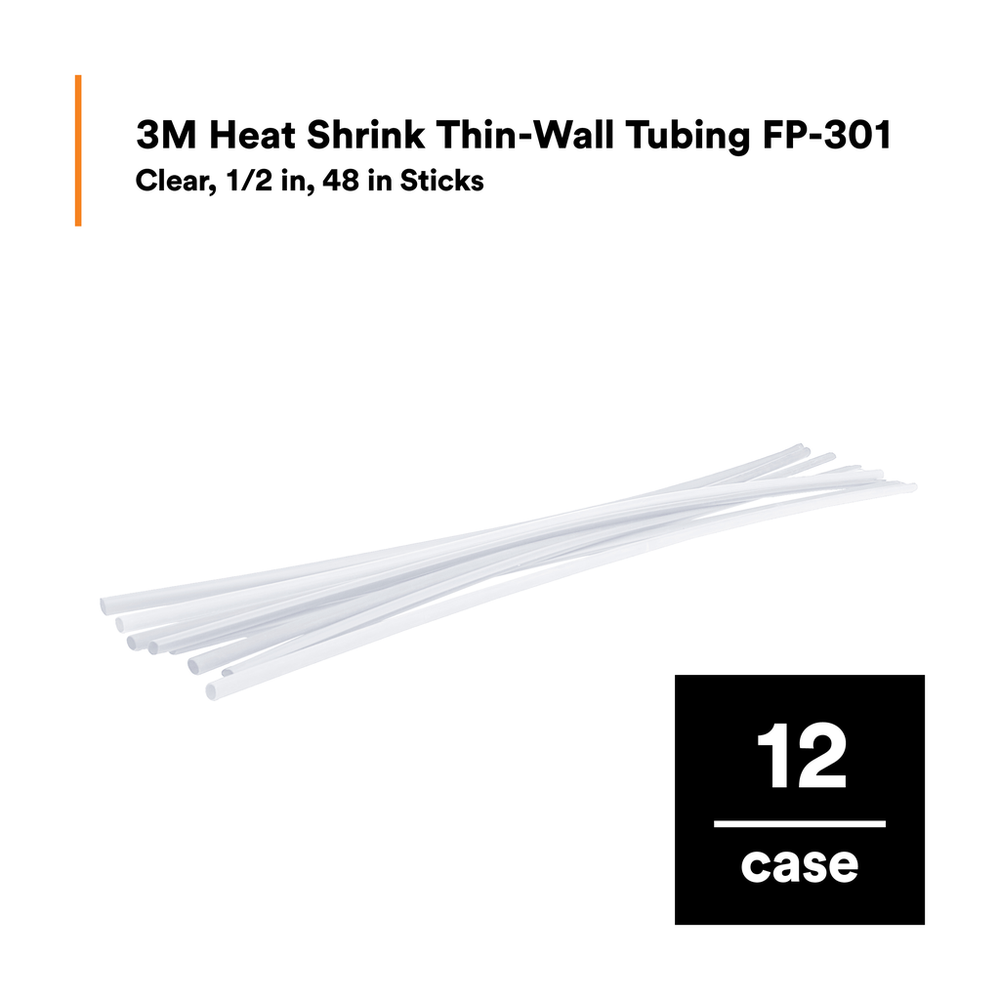

3M™ Heat Shrink Thin-Wall Tubing FP-301-1/2-48"-Clear-12 Pcs, 48 in Length sticks, 12 pieces/case - 7100083074

Sold As: 12-Pack
SKU: 7100083074
MPN: 7100083074
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128595923
3M ID: 80611472533
5 Digit UPC: 59592
$52.86 ($4.41 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Overall Width (Imperial)0.5
Mil SpecAMS-DTL-23053/5, Class 1
Minimum Expanded Tubing I. D.1.0
Tubing TypeSingle (Thin) Wall
Units per Case12.0
Operating Temperature (Fahrenheit)-67 °F to 275 °F
Overall Width (Imperial) UOMin
Inner Diameter After Shrink (Imperial) UOMin
Elongation UOM%
Minimum Expanded Tubing I. D. UOMin
UL Bug Temperature (Celsius)125 Degrees Celsius
Maximum Operating Temperature (Fahrenheit)275.0
Inner Diameter Before Shrink (Imperial) UOMin
Inner Diameter Before Shrink (Imperial)0.5
Overall Length (Metric)1220.0
Flame RetardantNo
Overall Width (Metric) UOMmm
Shrink Ratio2:1
Inner Diameter Before Shrink (Metric) UOMmm
Overall Length (Imperial) UOMin
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Product ColorTransparent
MaterialPolyolefin
Overall Length (Imperial)48.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Inner Diameter Before Shrink (Metric)12.7
Inner Diameter After Shrink (Metric)6.35
Maximum Operating Temperature (Celsius)135.0
Inner Diameter After Shrink (Imperial)0.25
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
UL Bug Voltage600 Volt
Adhesive MaterialNone
Overall Length (Metric) UOMmm
Inner Diameter After Shrink (Metric) UOMmm
Non-CorrosiveYes
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
UL Bug Temperature (Fahrenheit)257 Degrees Fahrenheit
Overall Width (Metric)12.7
Maximum Operating Temperature (Celsius) UomDegree
