3M Products & Supplies

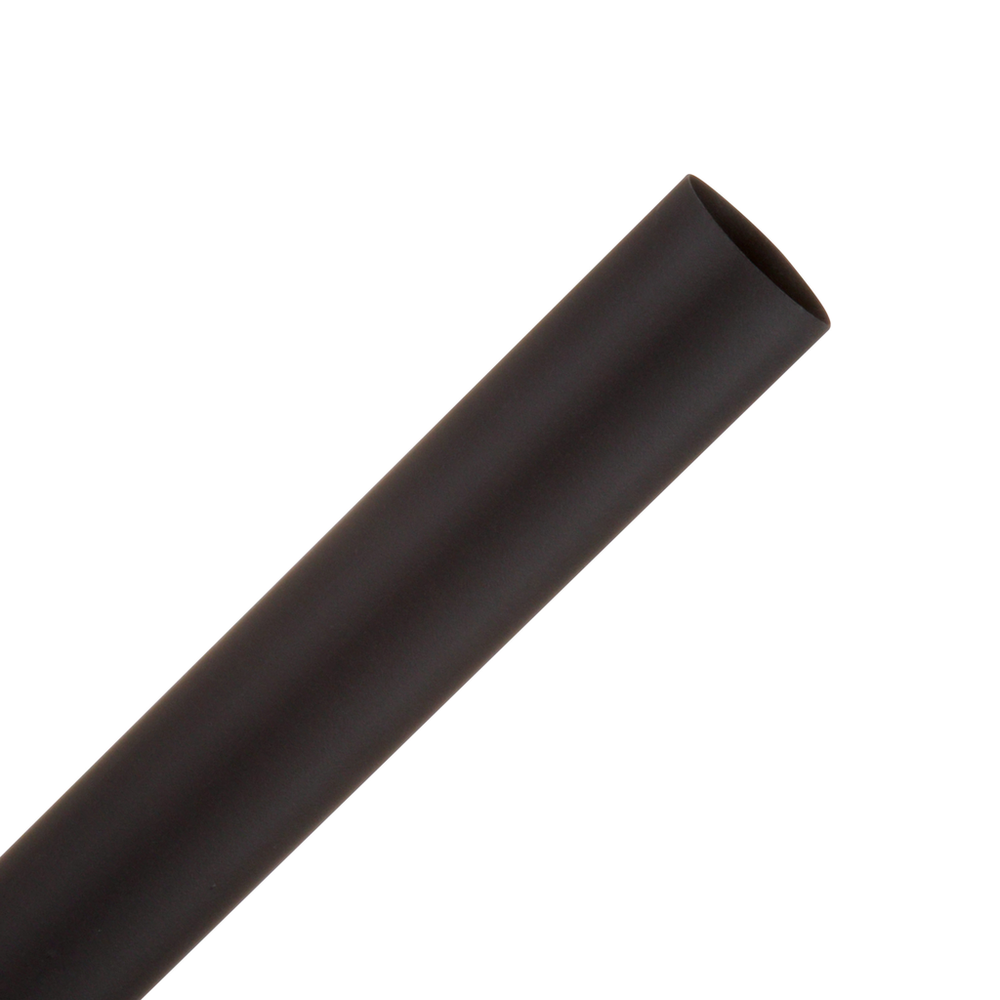

3M™ Heat Shrink Thin-Wall Tubing FP-301-1/2-48"-Black-12 Pcs, 48 in Length sticks, 12 pieces/case - 7000133508

Sold As: 12-Pack
SKU: 7000133508
MPN: 7000133508
For an accurate lead time please contact us
UPC: 00051128595916
3M ID: 80611472525
5 Digit UPC: 59591
$52.86 ($4.41 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Inner Diameter After Shrink (Metric) UOMmm
Inner Diameter After Shrink (Imperial) UOMin
Minimum Expanded Tubing I. D. UOMin
MaterialPolyolefin
Operating Temperature Range (Celsius)-55 °C to +135 °C
Inner Diameter Before Shrink (Imperial) UOMin
Overall Width (Metric)12.7
Inner Diameter Before Shrink (Imperial)0.5
Operating Temperature (Fahrenheit)-67 °F to 275 °F
Maximum Operating Temperature (Celsius)135.0
Overall Length (Metric)1220.0
Overall Length (Metric) UOMmm
Overall Width (Metric) UOMmm
Minimum Expanded Tubing I. D.1.0
Mil SpecAMS-DTL-23053/5, Class 1
Overall Length (Imperial)48.0
Overall Length (Imperial) UOMin
UL Bug Voltage600 Volt
Inner Diameter After Shrink (Metric)6.35
Non-CorrosiveYes
Units per Case12.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Elongation UOM%
Overall Width (Imperial) UOMin
UL ApprovalYes
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Overall Width (Imperial)0.5
Shrink Ratio2:1
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Operating Temperature Range (Fahrenheit)-67 °F to 275 °F
Inner Diameter After Shrink (Imperial)0.25
Inner Diameter Before Shrink (Metric)12.7
Maximum Operating Temperature (Fahrenheit)275.0
UL Bug Temperature (Celsius)125 Degrees Celsius
Maximum Operating Temperature (Celsius) UomDegree
Adhesive MaterialNone
Product ColorBlack
Minimum Shrink Temperature (Celsius)100.0
Tubing TypeSingle Wall (Thin)
UL Bug Temperature (Fahrenheit)257 Degrees Fahrenheit
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Inner Diameter Before Shrink (Metric) UOMmm
Flame RetardantYes
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
