3M Products & Supplies

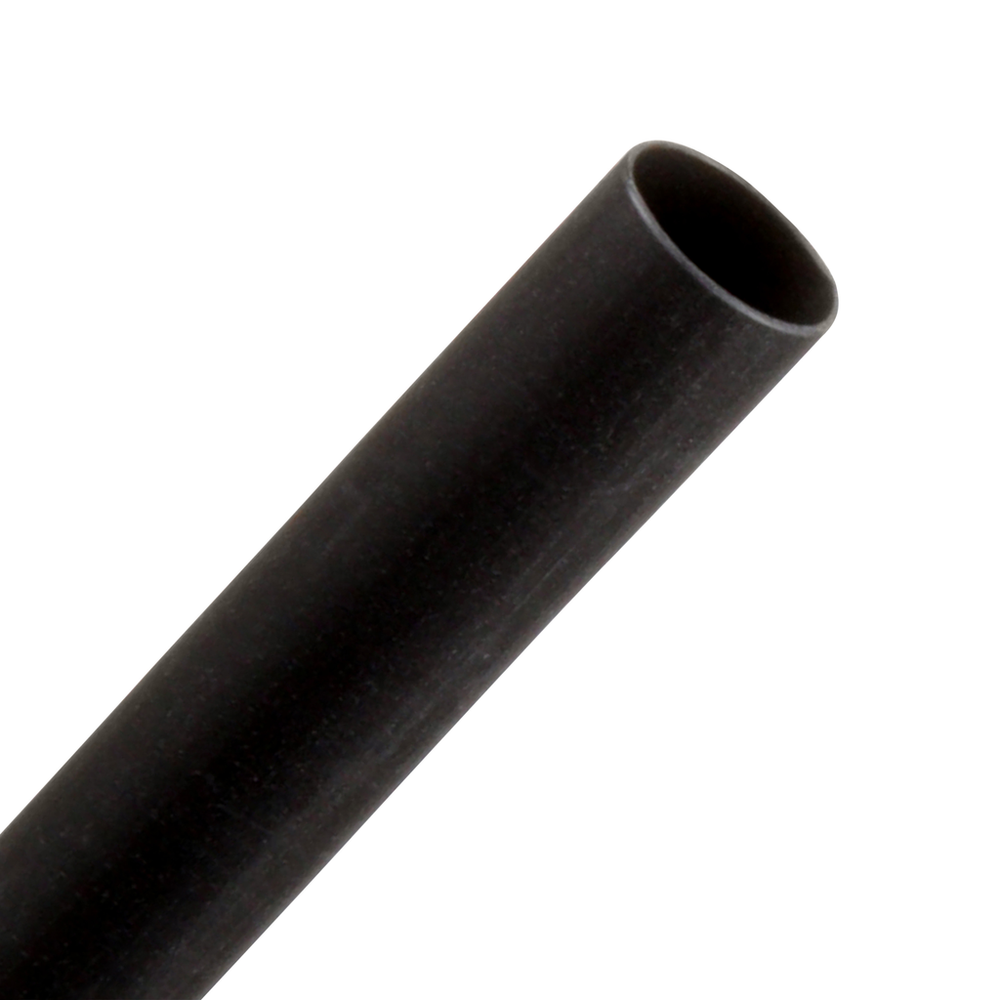

3M™ Heat Shrink Thin-Wall Tubing FP-301-1/4-48"-Black-12 Pcs, 48 in Length sticks, 12 pieces/case - 7100007366

Sold As: 12-Pack
SKU: 7100007366
MPN: 7100007366
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128595770
3M ID: 80611472384
5 Digit UPC: 59577
$42.07 ($3.51 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Inner Diameter Before Shrink (Imperial) UOMin
Non-CorrosiveYes
Inner Diameter Before Shrink (Metric)6.35
Overall Width (Imperial)0.25
Tubing TypeSingle Wall (Thin)
Maximum Operating Temperature (Celsius)135.0
MaterialPolyolefin
UL Bug Voltage600 Volt
Minimum Expanded Tubing I. D. UOMin
Units per Case12.0
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Inner Diameter After Shrink (Imperial) UOMin
Flame RetardantYes
Maximum Operating Temperature (Celsius) UomDegree
Operating Temperature Range (Fahrenheit)-67 °F to 275 °F
Product ColorBlack
Maximum Operating Temperature (Fahrenheit) UOMDegree
Operating Temperature Range (Celsius)-55 °C to +135 °C
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Overall Length (Metric)1220.0
Operating Temperature (Fahrenheit)-67 °F to 275 °F
Mil SpecAMS-DTL-23053/5, Class 1
Overall Length (Imperial) UOMin
Inner Diameter After Shrink (Imperial)0.125
Minimum Shrink Temperature (Celsius)100.0
Adhesive MaterialNone
Overall Width (Metric) UOMmm
UL ApprovalYes
Inner Diameter Before Shrink (Imperial)0.25
UL Bug Temperature (Celsius)125 Degrees Celsius
Inner Diameter After Shrink (Metric) UOMmm
Overall Width (Imperial) UOMin
UL Bug Temperature (Fahrenheit)257 Degrees Fahrenheit
Elongation UOM%
Overall Length (Imperial)48.0
Minimum Expanded Tubing I. D.1.0
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Overall Length (Metric) UOMmm
Overall Width (Metric)6.35
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Maximum Operating Temperature (Fahrenheit)275.0
Inner Diameter After Shrink (Metric)3.18
Inner Diameter Before Shrink (Metric) UOMmm
Shrink Ratio2:1
