3M Products & Supplies

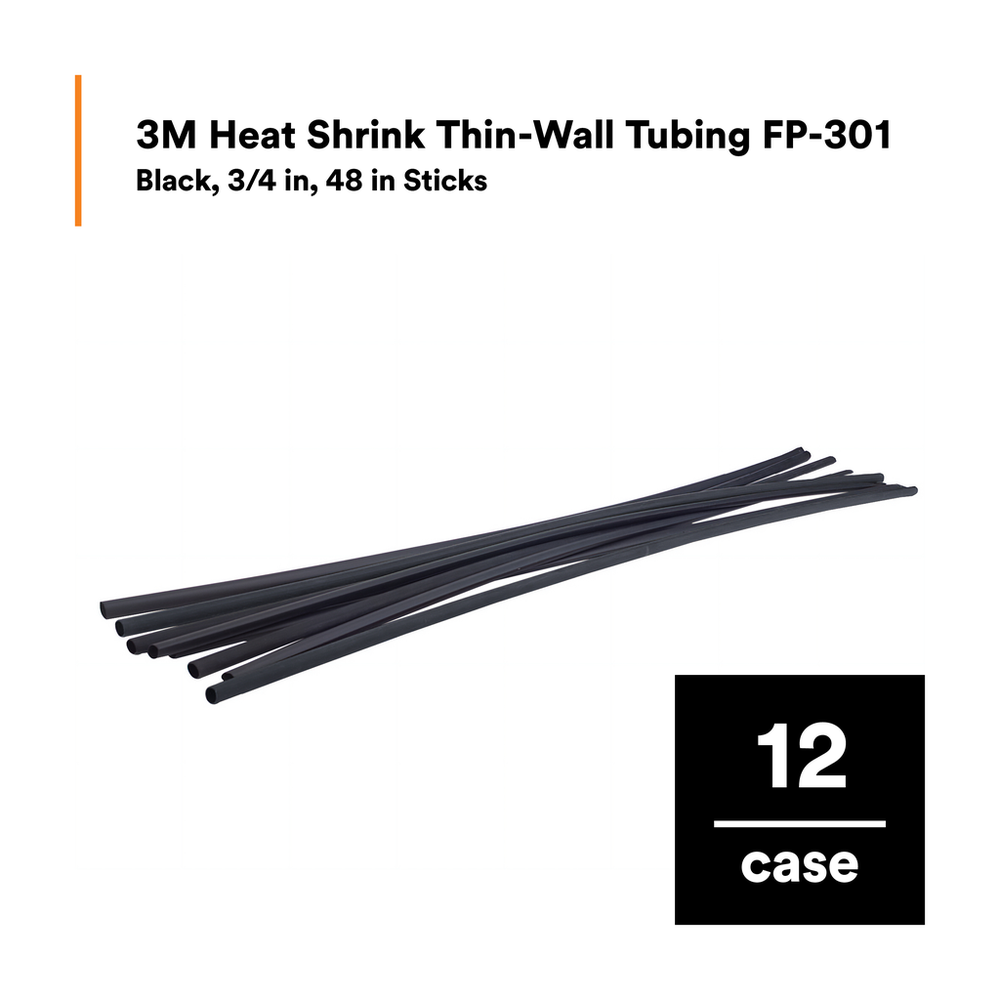

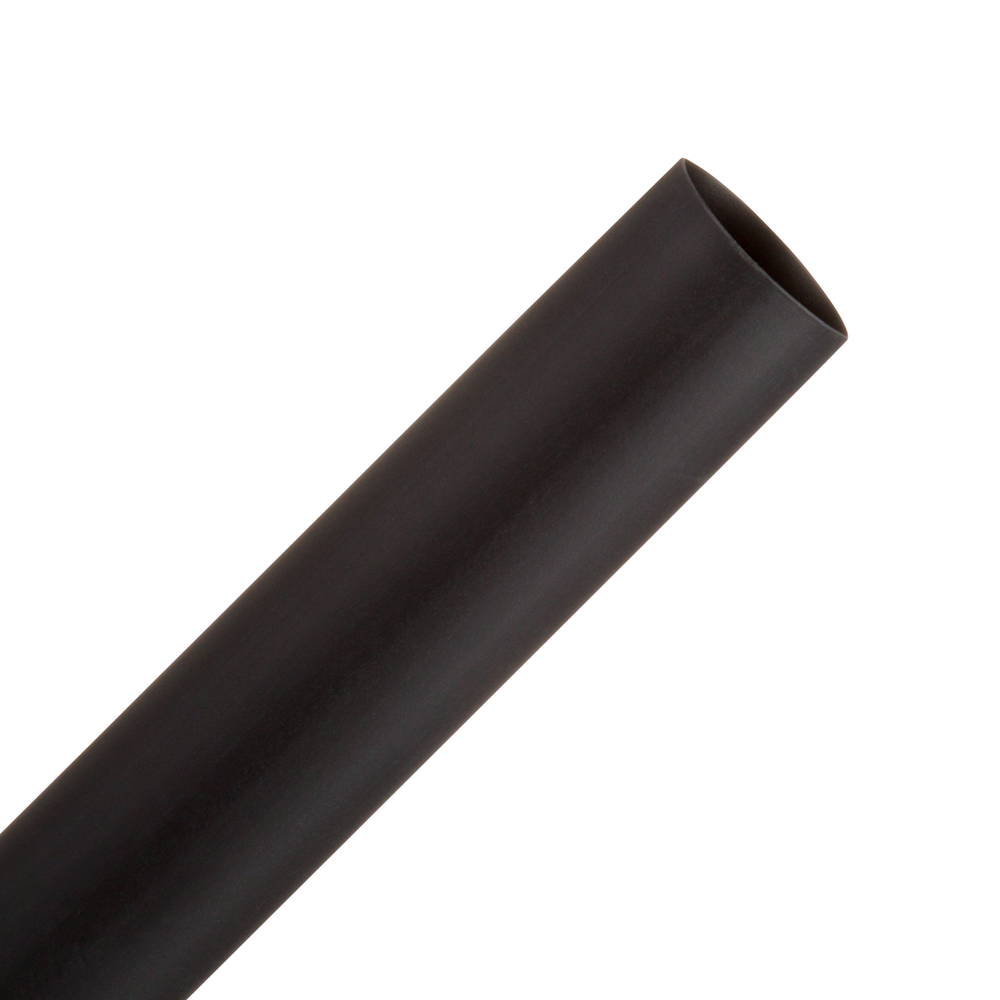

3M™ Heat Shrink Thin-Wall Tubing FP-301-3/4-48"-Black-12 Pcs, 48 in Length sticks, 12 pieces/case - 7000133514

Sold As: 12-Pack
SKU: 7000133514
MPN: 7000133514
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128595985
3M ID: 80611472590
5 Digit UPC: 59598
$73.65 ($6.14 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Elongation UOM%
Maximum Operating Temperature (Celsius) UomDegree
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Maximum Operating Temperature (Fahrenheit) UOMDegree
Inner Diameter After Shrink (Imperial)0.375
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Inner Diameter Before Shrink (Imperial)0.75
Maximum Operating Temperature (Celsius)135.0
Maximum Operating Temperature (Fahrenheit)275.0
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Tubing TypeSingle Wall (Thin)
Minimum Expanded Tubing I. D.3.0
Overall Length (Imperial)48.0
Mil SpecAMS-DTL-23053/5, Class 1
Units per Case12.0
Operating Temperature Range (Fahrenheit)-67 °F to 275 °F
UL Bug Temperature (Fahrenheit)257 Degrees Fahrenheit
Non-CorrosiveYes
Minimum Shrink Temperature (Celsius)100.0
Overall Width (Imperial)0.75
UL Bug Voltage600 Volt
Inner Diameter After Shrink (Imperial) UOMin
Inner Diameter Before Shrink (Imperial) UOMin
Inner Diameter Before Shrink (Metric)19.05
Operating Temperature Range (Celsius)-55 °C to +135 °C
Overall Length (Imperial) UOMin
Overall Width (Metric) UOMmm
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Overall Width (Metric)19.05
Inner Diameter Before Shrink (Metric) UOMmm
Inner Diameter After Shrink (Metric)9.53
MaterialPolyolefin
Operating Temperature (Fahrenheit)-67 °F to 275 °F
Overall Length (Metric) UOMmm
Inner Diameter After Shrink (Metric) UOMmm
Overall Width (Imperial) UOMin
Flame RetardantYes
UL ApprovalYes
Minimum Expanded Tubing I. D. UOMin
Overall Length (Metric)1220.0
UL Bug Temperature (Celsius)125 Degrees Celsius
Adhesive MaterialNone
Shrink Ratio2:1
Product ColorBlack
