3M Products & Supplies

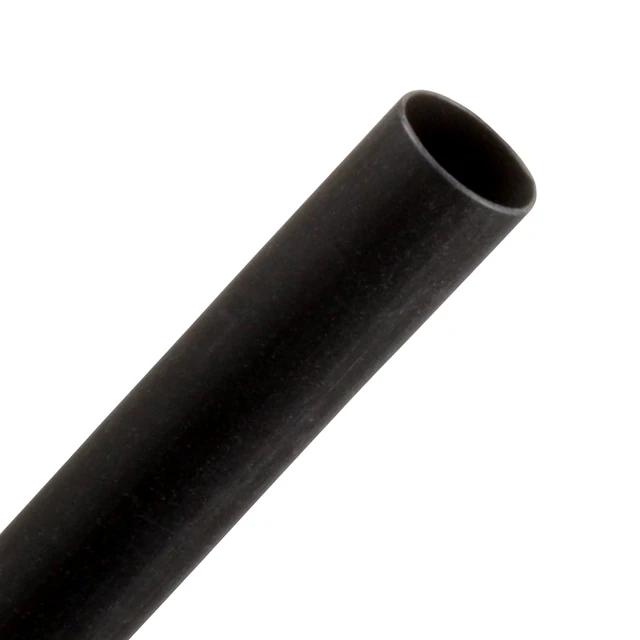

3M™ Heat Shrink Thin-Wall Tubing FP-301-4-48"-Black-12 Pcs, 48 in Length sticks, 12 pieces/case - 7100083141

Sold As: 12-Pack
SKU: 7100083141
MPN: 7100083141
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128599099
3M ID: 80611601701
5 Digit UPC: 59909
$604.02 ($50.34 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Overall Width (Imperial)4.0
UL Bug Temperature (Celsius)125 Degrees Celsius
Inner Diameter Before Shrink (Metric)101.6
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
MaterialPolyolefin
UL ApprovalYes
Inner Diameter Before Shrink (Metric) UOMmm
Non-CorrosiveYes
Adhesive MaterialNone
Elongation UOM%
Operating Temperature Range (Celsius)-55 °C to +135 °C
Overall Width (Imperial) UOMin
Minimum Expanded Tubing I. D.4.0
Inner Diameter After Shrink (Metric)50.8
Inner Diameter After Shrink (Imperial) UOMin
UL Bug Temperature (Fahrenheit)257 Degrees Fahrenheit
Overall Length (Metric)1220.0
Overall Length (Metric) UOMmm
Overall Length (Imperial) UOMin
Overall Width (Metric)101.6
Mil SpecAMS-DTL-23053/5, Class 1
Inner Diameter Before Shrink (Imperial)4.0
Flame RetardantYes
Maximum Operating Temperature (Fahrenheit)275.0
Product ColorBlack
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Operating Temperature (Celsius) UomDegree
Maximum Operating Temperature (Fahrenheit) UOMDegree
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Minimum Expanded Tubing I. D. UOMin
Operating Temperature Range (Fahrenheit)-67 °F to 275 °F
Units per Case12.0
Inner Diameter Before Shrink (Imperial) UOMin
Overall Length (Imperial)48.0
Tubing TypeSingle Wall (Thin)
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
UL Bug Voltage600 Volt
Operating Temperature (Fahrenheit)-67 °F to 275 °F
Inner Diameter After Shrink (Imperial)2.0
Shrink Ratio2:1
Inner Diameter After Shrink (Metric) UOMmm
Minimum Shrink Temperature (Celsius)100.0
Maximum Operating Temperature (Celsius)135.0
Overall Width (Metric) UOMmm
