3M Products & Supplies

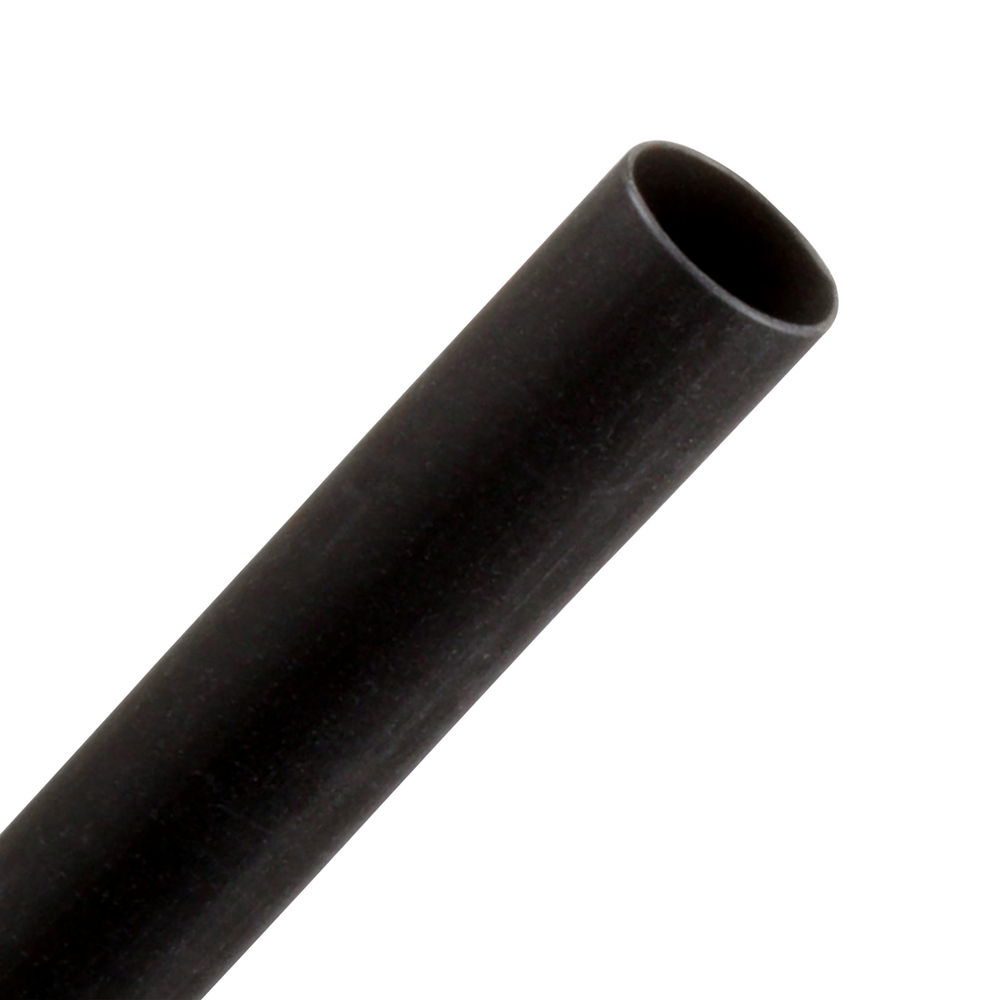

3M™ Heat Shrink Thin-Wall Tubing FP-301-1/4-48"-Black-200 Pcs, 48 in Length sticks, 200 pieces/case - 7000133603

Sold As: 200-Pack
SKU: 7000133603
MPN: 7000133603
For an accurate lead time please contact us
UPC: 00051128598351
3M ID: 80611600968
5 Digit UPC: 59835
$514.87 ($2.57 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Overall Width (Metric) UOMmm
Operating Temperature (Fahrenheit)-67 °F to 275 °F
Maximum Operating Temperature (Celsius) UomDegree
Minimum Shrink Temperature (Celsius)100.0
Product ColorBlack
Tubing TypeSingle Wall (Thin)
Overall Width (Imperial) UOMin
UL Bug Temperature (Celsius)125 Degrees Celsius
Overall Length (Imperial) UOMin
Inner Diameter Before Shrink (Metric)6.35
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Mil SpecAMS-DTL-23053/5, Class 1
Overall Width (Metric)6.35
Elongation UOM%
MaterialPolyolefin
Maximum Operating Temperature (Fahrenheit)275.0
Units per Case200.0
UL ApprovalYes
Shrink Ratio2:1
Inner Diameter After Shrink (Metric)3.18
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Operating Temperature Range (Fahrenheit)-67 °F to 275 °F
Adhesive MaterialNone
Inner Diameter Before Shrink (Metric) UOMmm
Maximum Operating Temperature (Celsius)135.0
Minimum Expanded Tubing I. D. UOMin
Overall Length (Imperial)48.0
Overall Length (Metric)1220.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Inner Diameter Before Shrink (Imperial)0.25
UL Bug Temperature (Fahrenheit)257 Degrees Fahrenheit
Operating Temperature Range (Celsius)-55 °C to +135 °C
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Inner Diameter After Shrink (Imperial)0.125
UL Bug Voltage600 Volt
Overall Width (Imperial)0.25
Minimum Expanded Tubing I. D.1.0
Inner Diameter After Shrink (Metric) UOMmm
Inner Diameter After Shrink (Imperial) UOMin
Flame RetardantYes
Inner Diameter Before Shrink (Imperial) UOMin
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Overall Length (Metric) UOMmm
Non-CorrosiveYes
