3M Products & Supplies

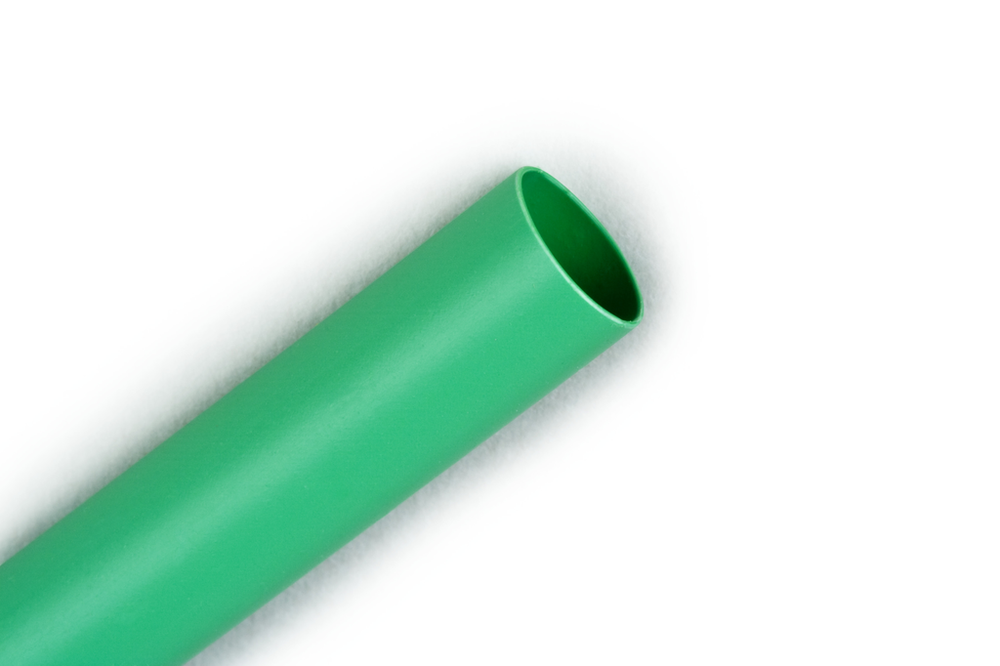

3M™ Heat Shrink Thin-Wall Tubing FP-301-1/4-48"-Green-200 Pcs, 48 in Length sticks, 200 pieces/case - 7000133624

Sold As: 200-Pack
SKU: 7000133624
MPN: 7000133624
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 10051128599430
3M ID: 80611602048
5 Digit UPC: 59943
$534.48 ($2.67 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Flame RetardantYes
Overall Length (Imperial)48.0
Operating Temperature Range (Celsius)-55 °C to +135 °C
Overall Width (Metric)6.35
Inner Diameter Before Shrink (Imperial)0.25
Operating Temperature (Fahrenheit)-67 °F to 275 °F
UL Bug Temperature (Fahrenheit)257 Degrees Fahrenheit
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Overall Length (Imperial) UOMin
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
UL ApprovalYes
Overall Width (Imperial)0.25
Maximum Operating Temperature (Fahrenheit)275.0
Overall Width (Imperial) UOMin
Minimum Expanded Tubing I. D. UOMin
Inner Diameter After Shrink (Metric)3.18
Product ColorGreen
Inner Diameter After Shrink (Imperial) UOMin
Non-CorrosiveYes
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Metric) UOMmm
Inner Diameter Before Shrink (Metric) UOMmm
Minimum Shrink Temperature (Celsius)100.0
MaterialPolyolefin
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
UL Bug Temperature (Celsius)125 Degrees Celsius
Tubing TypeSingle Wall (Thin)
Inner Diameter After Shrink (Metric) UOMmm
Overall Length (Metric)1220.0
Maximum Operating Temperature (Celsius)135.0
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Mil SpecAMS-DTL-23053/5, Class 1
Minimum Expanded Tubing I. D.1.0
Shrink Ratio2:1
Adhesive MaterialNone
Overall Width (Metric) UOMmm
Inner Diameter Before Shrink (Metric)6.35
Operating Temperature Range (Fahrenheit)-67 °F to 275 °F
Inner Diameter Before Shrink (Imperial) UOMin
Maximum Operating Temperature (Celsius) UomDegree
Elongation UOM%
UL Bug Voltage600 Volt
Units per Case200.0
Inner Diameter After Shrink (Imperial)0.125
