3M Products & Supplies

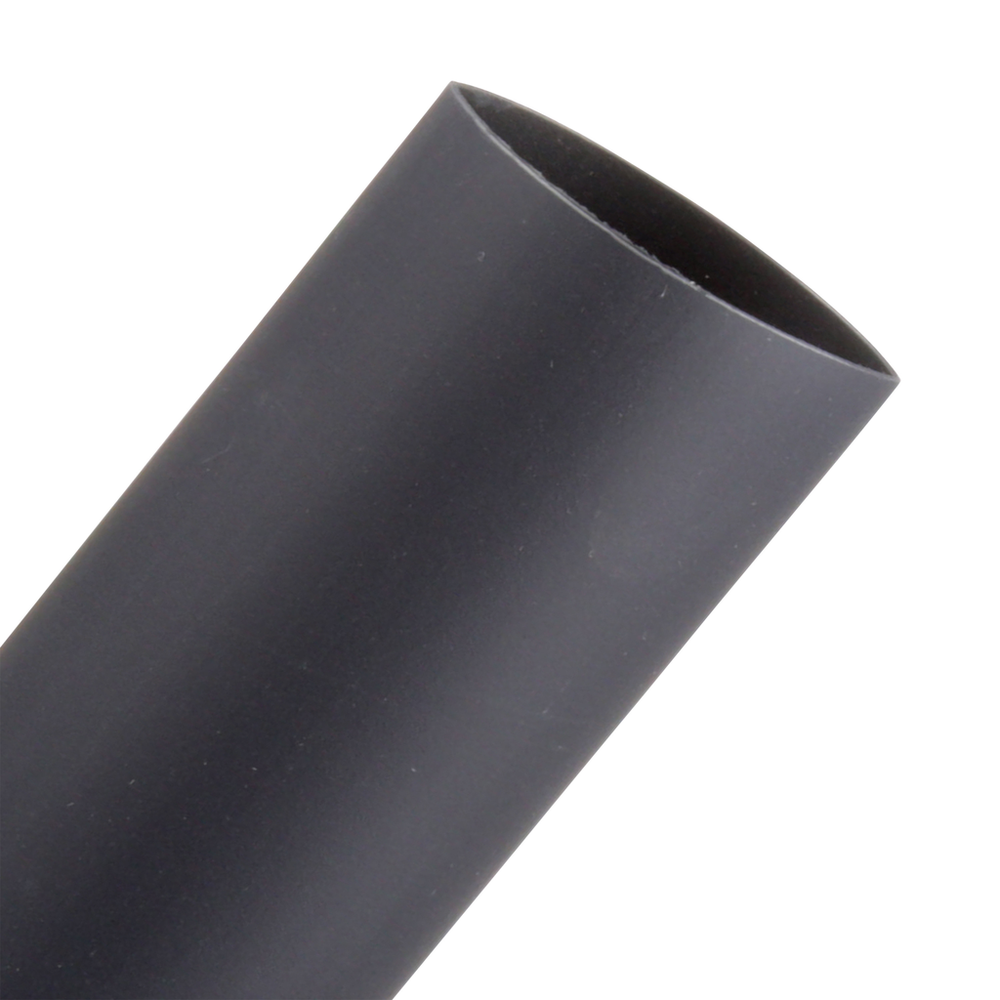

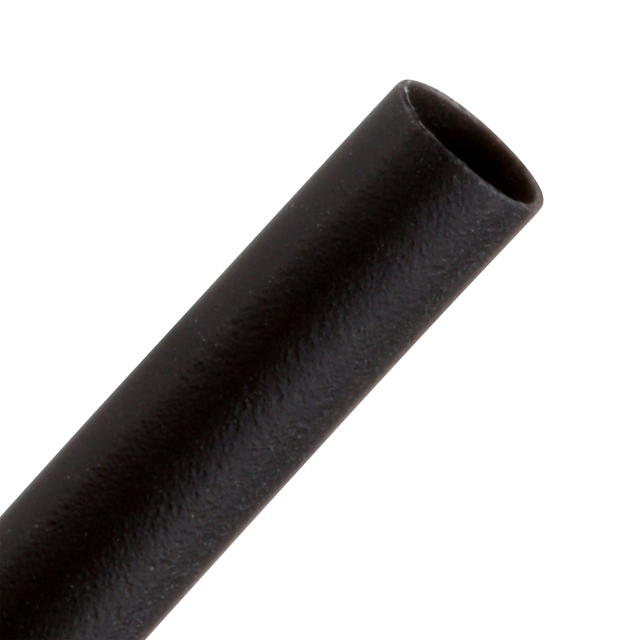

3M™ Heat Shrink Thin-Wall Tubing FP-301-1-6"-Black-10-10 Pc Pks, 6 in Length pieces, 10 pieces/pack, 10 packs/case - 7000133691

Sold As: 10-Pack
SKU: 7000133691
MPN: 7000133691
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128601181
3M ID: 80611603806
5 Digit UPC: 60118
$201.29 ($20.13 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Tubing TypeSingle Wall (Thin)
Maximum Operating Temperature (Celsius)135.0
UL Bug Voltage600 Volt
Overall Length (Imperial)6.0
Minimum Expanded Tubing I. D. UOMin
Overall Length (Metric)152.4
Overall Width (Metric) UOMmm
UL Bug Temperature (Fahrenheit)257 Degrees Fahrenheit
Non-CorrosiveYes
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Inner Diameter After Shrink (Metric) UOMmm
Inner Diameter Before Shrink (Imperial)1.0
UL Bug Temperature (Celsius)125 Degrees Celsius
MaterialPolyolefin
Inner Diameter After Shrink (Imperial) UOMin
Shrink Ratio2:1
Inner Diameter After Shrink (Imperial)0.5
Flame RetardantYes
Overall Width (Imperial)1.0
Operating Temperature Range (Fahrenheit)-67 °F to 275 °F
Product ColorBlack
Minimum Expanded Tubing I. D.1.0
Minimum Shrink Temperature (Celsius)100.0
Inner Diameter Before Shrink (Imperial) UOMin
Operating Temperature Range (Celsius)-55 °C to +135 °C
Overall Width (Imperial) UOMin
Overall Width (Metric)25.4
Overall Length (Metric) UOMmm
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Maximum Operating Temperature (Celsius) UomDegree
Maximum Operating Temperature (Fahrenheit)275.0
Inner Diameter Before Shrink (Metric)25.4
Adhesive MaterialNone
Elongation UOM%
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Maximum Operating Temperature (Fahrenheit) UOMDegree
UL File NumberE-39100
Units per Case10.0
Overall Length (Imperial) UOMin
Inner Diameter After Shrink (Metric)12.7
Mil SpecSAE-AMS-DTL-23053/5, Class 1
Operating Temperature (Fahrenheit)-67 °F to 275 °F
UL ApprovalYes
Inner Diameter Before Shrink (Metric) UOMmm
