3M Products & Supplies

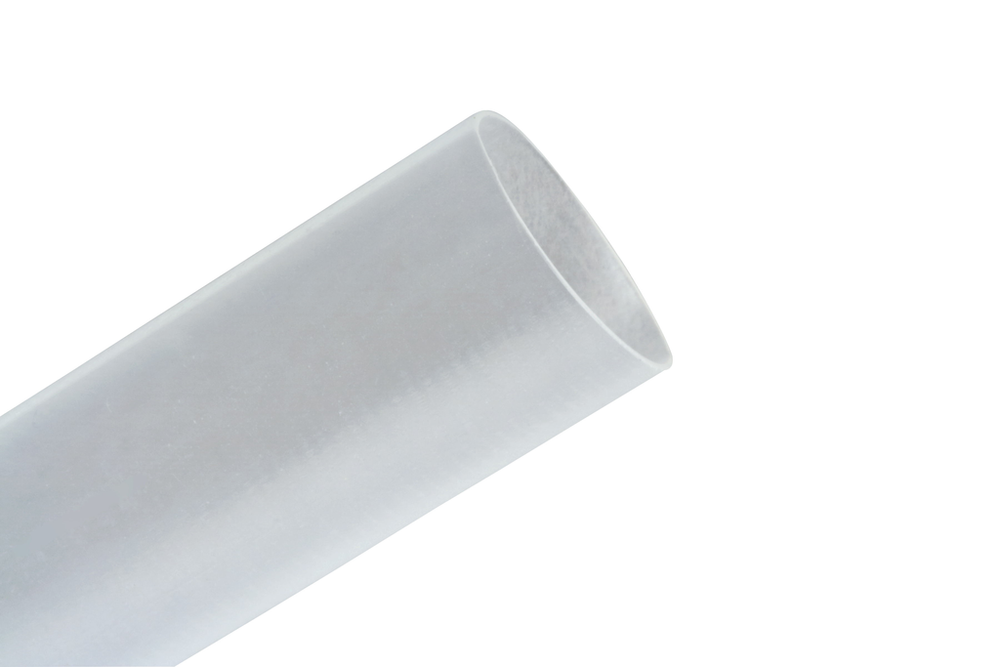

3M™ Heat Shrink Thin-Wall Tubing FP-301-1-6"-Clear-10-10 Pc Pks, 6 in Length pieces, 10 pieces/pack, 10 packs/case - 7010399003

Sold As: 10-Pack
SKU: 7010399003
MPN: 7010399003
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128601198
3M ID: 80611603814
5 Digit UPC: 60119
$201.29 ($20.13 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Inner Diameter After Shrink (Imperial)0.5
Overall Width (Imperial)1.0
UL Bug Temperature (Celsius)125 Degrees Celsius
Units per Case10.0
Minimum Expanded Tubing I. D. UOMin
Maximum Operating Temperature (Celsius) UomDegree
Adhesive MaterialNone
Overall Length (Imperial) UOMin
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Inner Diameter After Shrink (Metric)12.7
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Metric)25.4
Operating Temperature (Fahrenheit)-67 °F to 275 °F
Maximum Operating Temperature (Fahrenheit)275.0
Overall Length (Imperial)6.0
Elongation UOM%
Flame RetardantNo
Inner Diameter After Shrink (Imperial) UOMin
Mil SpecAMS-DTL-23053/5, Class 1
Minimum Expanded Tubing I. D.1.0
Inner Diameter Before Shrink (Imperial) UOMin
MaterialPolyolefin
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Overall Length (Metric)152.4
Product ColorTransparent
Overall Width (Metric) UOMmm
Inner Diameter Before Shrink (Metric) UOMmm
Non-CorrosiveYes
Inner Diameter Before Shrink (Metric)25.4
UL Bug Voltage600 Volt
Inner Diameter Before Shrink (Imperial)1.0
Overall Length (Metric) UOMmm
Maximum Operating Temperature (Celsius)135.0
Overall Width (Imperial) UOMin
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Tubing TypeSingle (Thin) Wall
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
UL Bug Temperature (Fahrenheit)257 Degrees Fahrenheit
Inner Diameter After Shrink (Metric) UOMmm

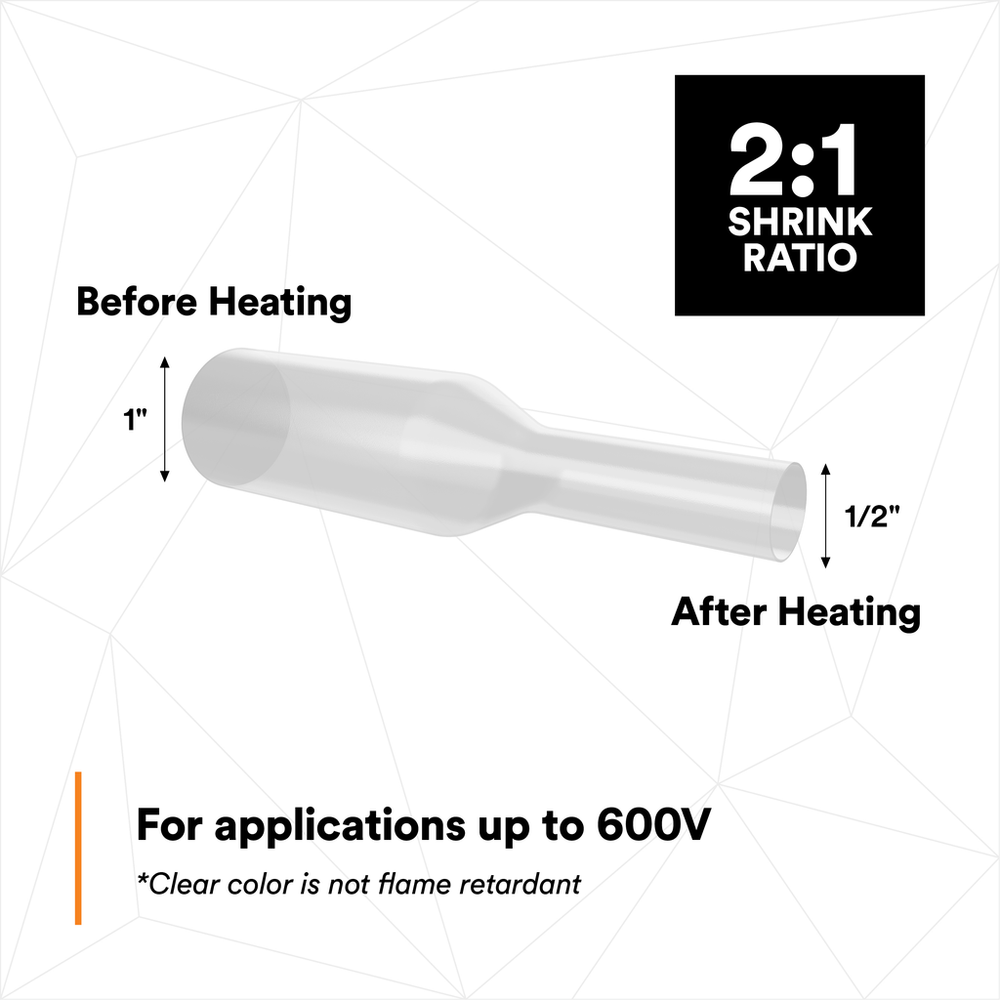

Shrink Ratio2:1
