3M Products & Supplies

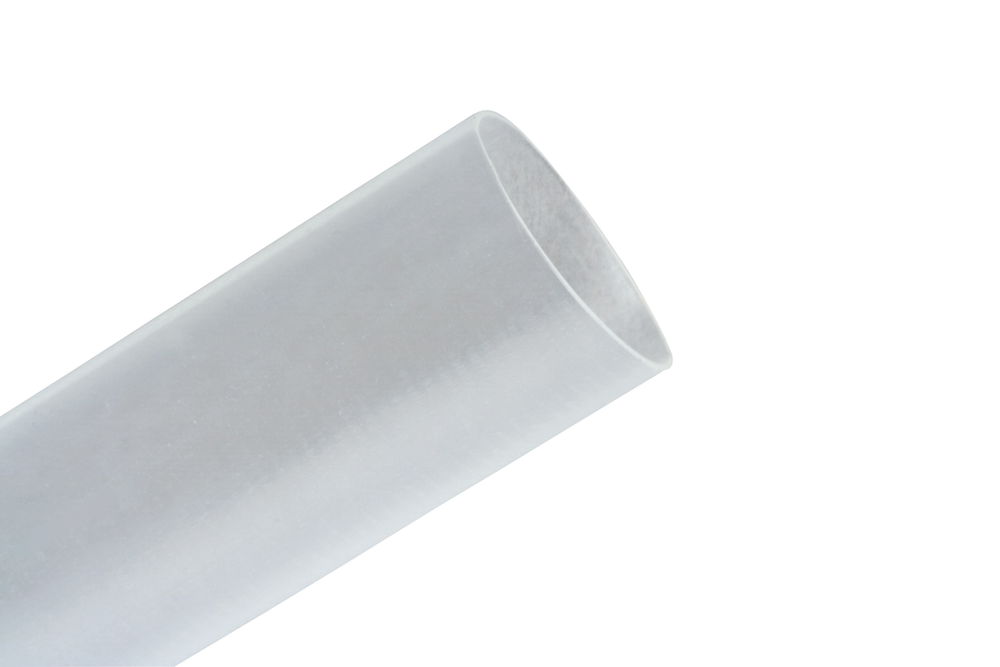

3M™ Heat Shrink Thin-Wall Tubing FP-301-3/4-6"-Clear-10-10 Pc Pks, 6 in Length pieces, 10 pieces/pack, 10 packs/case - 7000133695

Sold As: 10-Pack
SKU: 7000133695
MPN: 7000133695
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128601259
3M ID: 80611603871
5 Digit UPC: 60125
$144.33 ($14.43 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Operating Temperature Range (Celsius)-55 °C to +135 °C
Shrink Ratio2:1
Inner Diameter Before Shrink (Metric) UOMmm
Inner Diameter Before Shrink (Imperial)0.75
Maximum Operating Temperature (Fahrenheit) UOMDegree
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Overall Length (Imperial)6.0
Inner Diameter After Shrink (Imperial)0.375
Tubing TypeSingle Wall (Thin)
Overall Width (Imperial)0.75
Inner Diameter After Shrink (Metric)9.53
Inner Diameter Before Shrink (Metric)19.05
Maximum Operating Temperature (Fahrenheit)275.0
Non-CorrosiveYes
Operating Temperature (Fahrenheit)-67 °F to 275 °F
Minimum Expanded Tubing I. D.0.75
Overall Width (Metric) UOMmm
Maximum Operating Temperature (Celsius) UomDegree
Inner Diameter After Shrink (Metric) UOMmm
Adhesive MaterialNone
UL ApprovalYes
Overall Length (Imperial) UOMin
Minimum Expanded Tubing I. D. UOMin
Operating Temperature Range (Fahrenheit)-67 °F to 275 °F
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Elongation UOM%
Inner Diameter After Shrink (Imperial) UOMin
Overall Width (Imperial) UOMin
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Flame RetardantNo
MaterialPolyolefin
Inner Diameter Before Shrink (Imperial) UOMin
UL Bug Temperature (Celsius)125 Degrees Celsius
Minimum Shrink Temperature (Celsius)100.0
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Mil SpecSAE-AMS-DTL-23053/5, Class 2
UL Bug Temperature (Fahrenheit)257 Degrees Fahrenheit
Overall Length (Metric) UOMmm
Product ColorTransparent
Overall Length (Metric)152.4
UL Bug Voltage600 Volt
Overall Width (Metric)19.05
Maximum Operating Temperature (Celsius)135.0
Units per Case10.0
