3M Products & Supplies

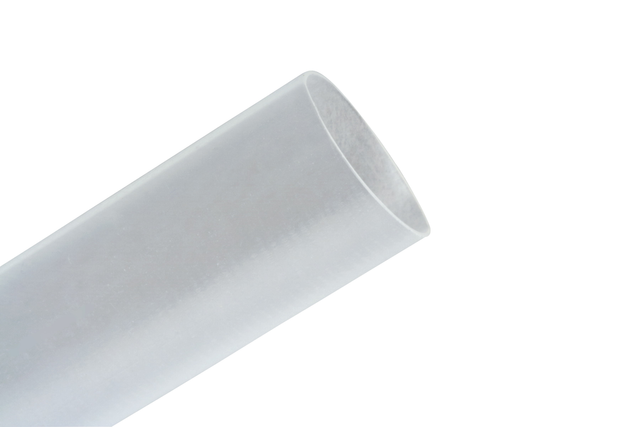

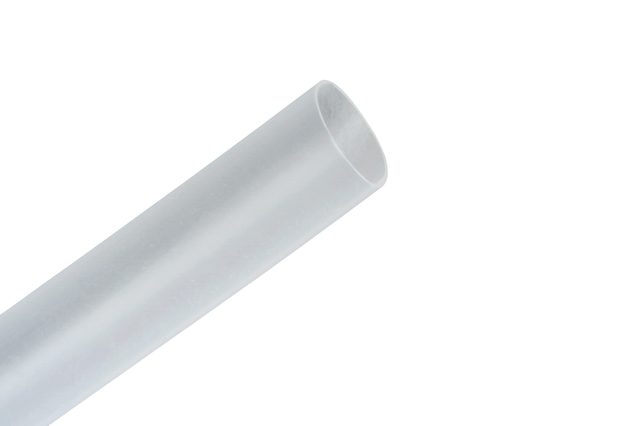

3M™ Heat Shrink Thin-Wall Tubing FP-301-3/16-6"-Clear-10-10 Pc Pks, 6 in Length pieces, 10 pieces/pack, 10 packs/case - 7000133693

Sold As: 10-Pack
SKU: 7000133693
MPN: 7000133693
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128601211
3M ID: 80611603830
5 Digit UPC: 60121
$67.59 ($6.76 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)

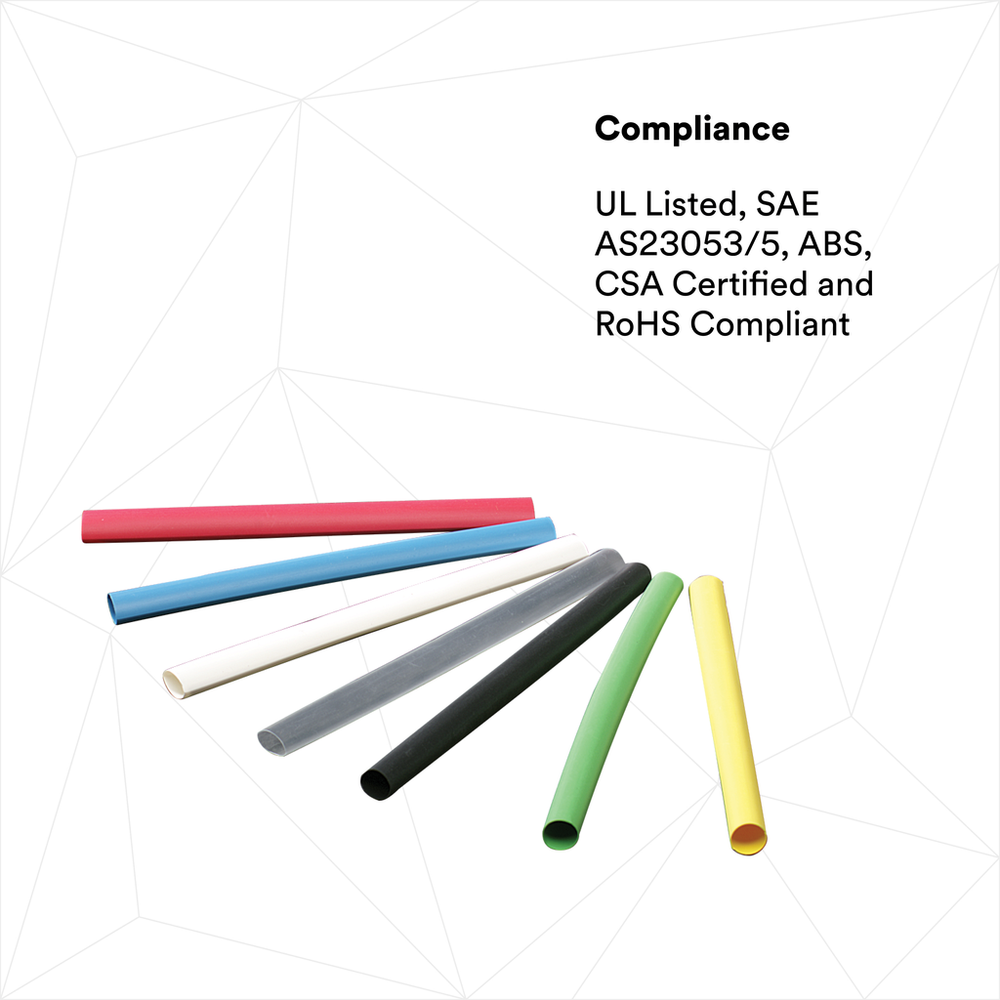

  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Inner Diameter After Shrink (Metric)2.36
Maximum Operating Temperature (Fahrenheit) UOMDegree
Inner Diameter After Shrink (Imperial)0.093
Minimum Expanded Tubing I. D.0.187
Elongation UOM%
Inner Diameter After Shrink (Metric) UOMmm
Mil SpecSAE-AMS-DTL-23053/5, Class 2
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
MaterialPolyolefin
UL Bug Voltage600 Volt
Overall Width (Metric) UOMmm
UL Bug Temperature (Fahrenheit)257 Degrees Fahrenheit
Shrink Ratio2:1
Operating Temperature Range (Celsius)-55 °C to +135 °C
Operating Temperature Range (Fahrenheit)-67 °F to 275 °F
Minimum Shrink Temperature (Celsius)100.0
Overall Width (Imperial)0.19
Units per Case10.0
Inner Diameter Before Shrink (Metric)4.75
UL Bug Temperature (Celsius)125 Degrees Celsius
Product ColorTransparent
Flame RetardantNo
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Operating Temperature (Celsius) UomDegree
Inner Diameter Before Shrink (Imperial) UOMin
Operating Temperature (Fahrenheit)-67 °F to 275 °F
Overall Length (Imperial) UOMin
Overall Width (Imperial) UOMin
UL ApprovalYes
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Overall Width (Metric)4.75
Non-CorrosiveYes
Maximum Operating Temperature (Celsius)135.0
Overall Length (Imperial)6.0
Inner Diameter Before Shrink (Metric) UOMmm
Tubing TypeSingle Wall (Thin)
Maximum Operating Temperature (Fahrenheit)275.0
Adhesive MaterialNone
Inner Diameter After Shrink (Imperial) UOMin
Inner Diameter Before Shrink (Imperial)0.187
Overall Length (Metric)152.4
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Overall Length (Metric) UOMmm
Minimum Expanded Tubing I. D. UOMin
