3M Products & Supplies

3M™ Heat Shrink Thin-Wall Tubing FP-301-3/16-6"-Black-10-10 Pc Pks, 6 in Length pieces, 10 pieces/pack, 10 packs/case - 7000133692

Sold As: 10-Pack
SKU: 7000133692
MPN: 7000133692
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128601204
3M ID: 80611603822
5 Digit UPC: 60120
$67.59 ($6.76 / Count)
Hurry up! Current stock:

Product Description

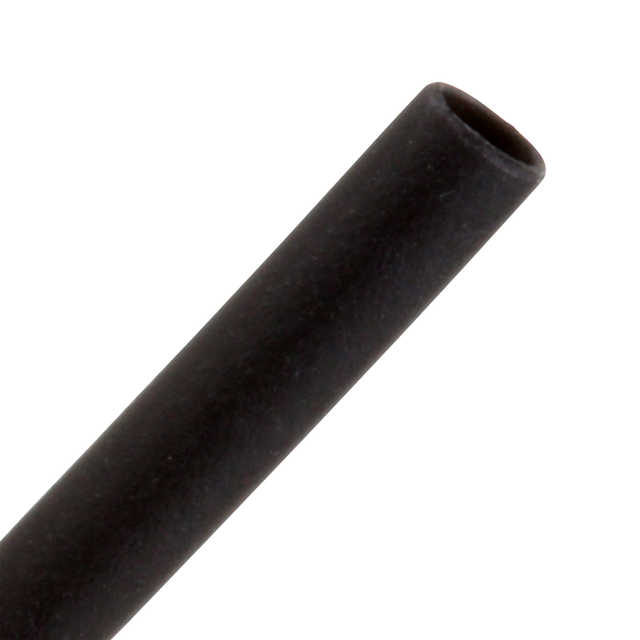

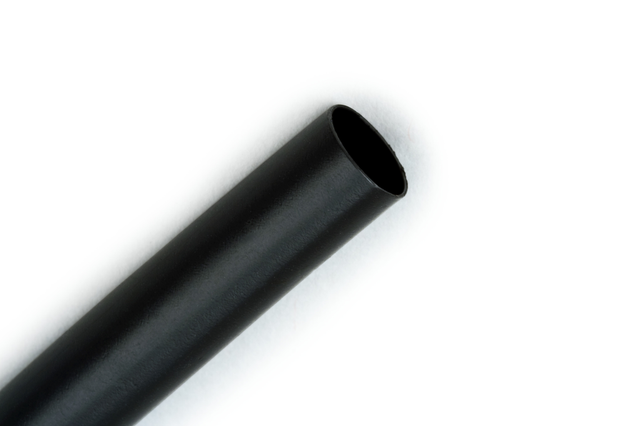

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)

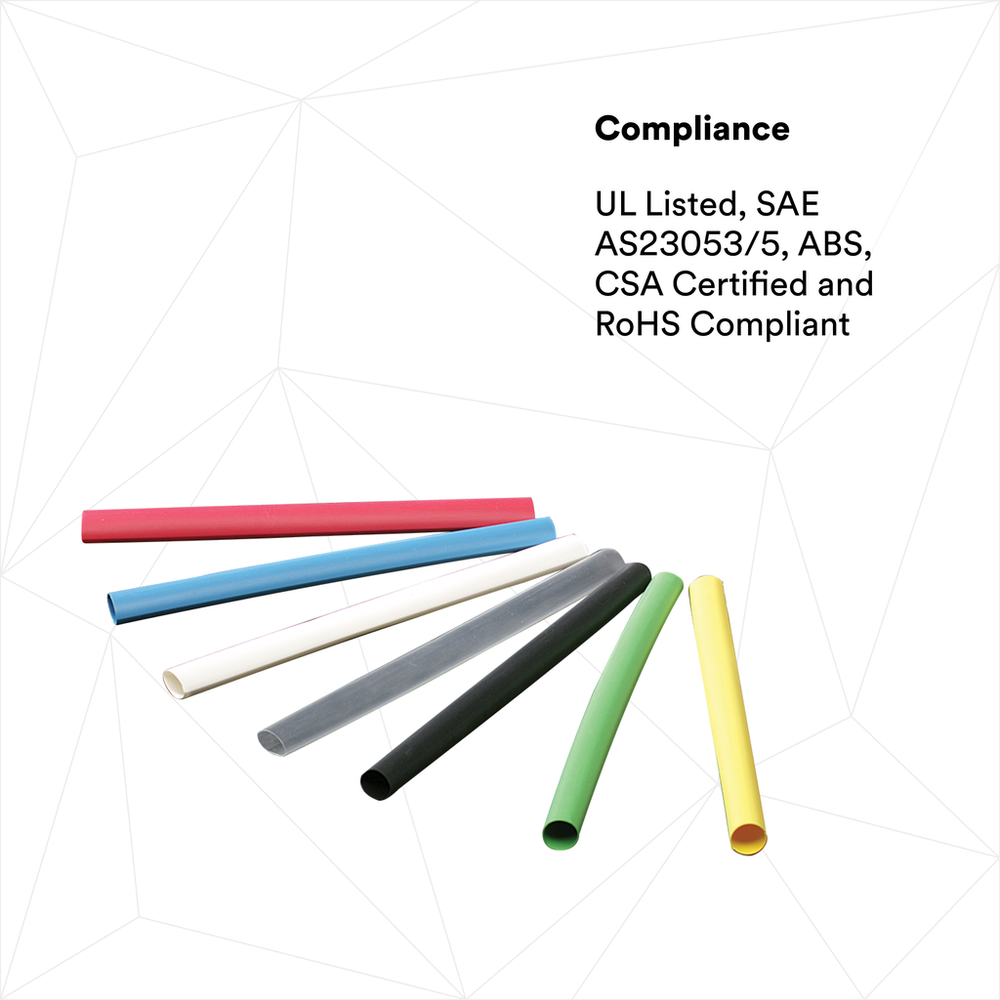

  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Overall Length (Metric) UOMmm
Operating Temperature Range (Celsius)-55 °C to +135 °C
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Overall Length (Imperial)6.0
UL Bug Temperature (Fahrenheit)257 Degrees Fahrenheit
Overall Length (Metric)152.4
UL Bug Temperature (Celsius)125 Degrees Celsius
UL Bug Voltage600 Volt
Maximum Operating Temperature (Fahrenheit) UOMDegree

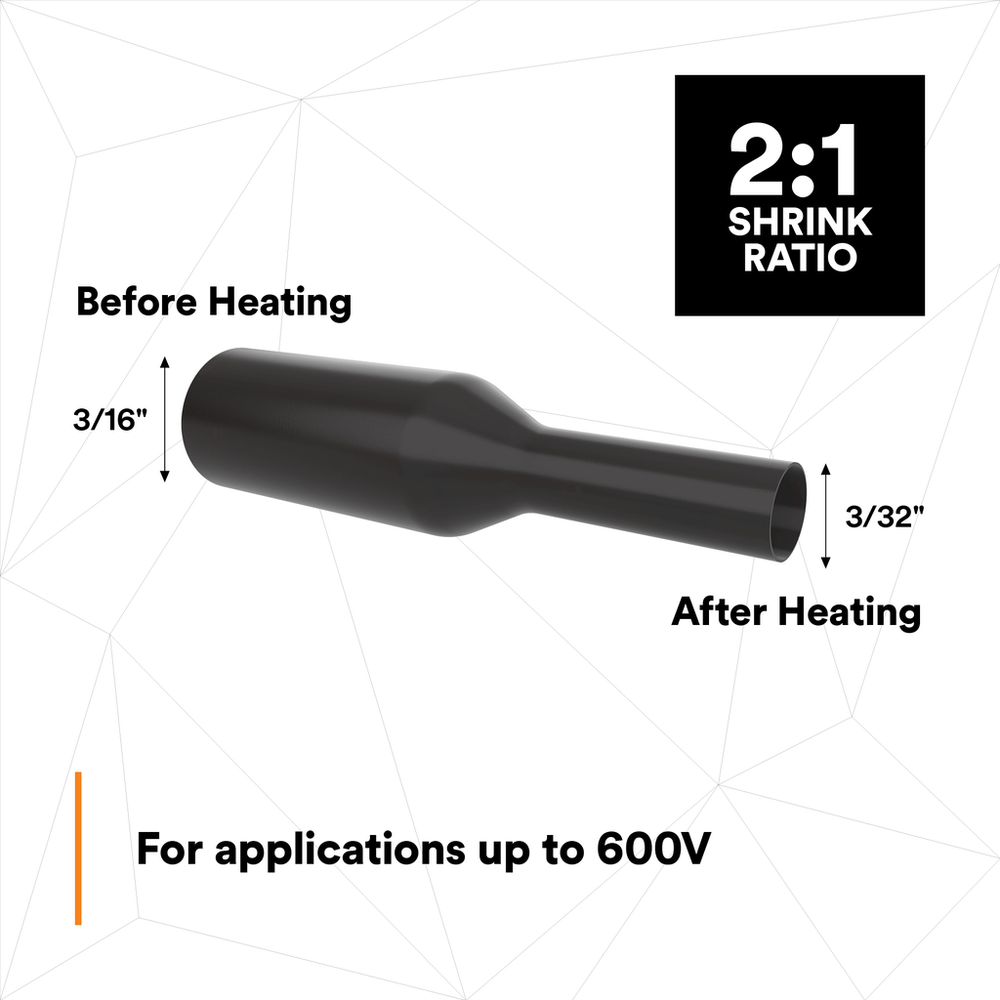

Shrink Ratio2:1
Tubing TypeSingle Wall (Thin)
Maximum Operating Temperature (Celsius)135.0
Minimum Expanded Tubing I. D.0.187
Inner Diameter After Shrink (Imperial)0.093
Mil SpecSAE-AMS-DTL-23053/5, Class 1
Maximum Operating Temperature (Celsius) UomDegree
Inner Diameter Before Shrink (Metric)4.75
Overall Width (Imperial)0.19
Overall Width (Metric)4.75
UL File NumberE-39100
Elongation UOM%
Adhesive MaterialNone
Inner Diameter After Shrink (Metric) UOMmm
Minimum Expanded Tubing I. D. UOMin
Units per Case10.0
Inner Diameter After Shrink (Imperial) UOMin
Operating Temperature Range (Fahrenheit)-67 °F to 275 °F
Inner Diameter Before Shrink (Metric) UOMmm
Inner Diameter Before Shrink (Imperial) UOMin
Inner Diameter Before Shrink (Imperial)0.187
Overall Width (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit)275.0
Product ColorBlack
Overall Length (Imperial) UOMin
MaterialPolyolefin
UL ApprovalYes
Flame RetardantYes
Inner Diameter After Shrink (Metric)2.36
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Operating Temperature (Fahrenheit)-67 °F to 275 °F
Minimum Shrink Temperature (Celsius)100.0
Overall Width (Metric) UOMmm
Non-CorrosiveYes
