3M Products & Supplies

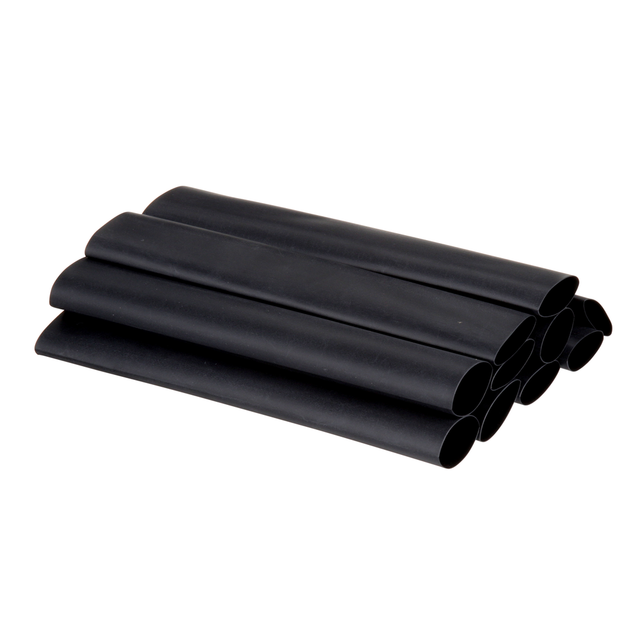

3M™ Heat Shrink Thin-Wall Tubing FP-301-3/64-6"-Black-10-10 Pc Pks, 6 in Length pieces, 10 pieces/pack, 10 packs/case - 7010399006

Sold As: 10-Pack
SKU: 7010399006
MPN: 7010399006
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128601266
3M ID: 80611603889
5 Digit UPC: 60126
$55.98 ($5.60 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Inner Diameter Before Shrink (Metric)1.17
Product ColorBlack
Inner Diameter Before Shrink (Imperial) UOMin
Adhesive MaterialNone
Maximum Operating Temperature (Celsius)135.0
MaterialPolyolefin
Shrink Ratio2:1
Inner Diameter After Shrink (Metric) UOMmm
Minimum Expanded Tubing I. D.3.0
Inner Diameter After Shrink (Imperial) UOMin
Units per Case10.0
Overall Length (Imperial)6.0
Maximum Operating Temperature (Celsius) UomDegree
Flame RetardantYes
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Expanded Tubing I. D. UOMin
Inner Diameter After Shrink (Metric)0.58
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Maximum Operating Temperature (Fahrenheit)275.0
Overall Length (Imperial) UOMin
Overall Width (Imperial) UOMin
Non-CorrosiveYes
Overall Length (Metric) UOMmm
Overall Length (Metric)152.4
Overall Width (Metric)1.17
Overall Width (Metric) UOMmm
Tubing TypeSingle (Thin) Wall
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Overall Width (Imperial)0.05
UL Bug Temperature (Celsius)125 Degrees Celsius
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
UL Bug Temperature (Fahrenheit)257 Degrees Fahrenheit
Operating Temperature (Fahrenheit)-67 °F to 275 °F
UL Bug Voltage600 Volt
Inner Diameter Before Shrink (Imperial)0.046
Inner Diameter Before Shrink (Metric) UOMmm
Mil SpecAMS-DTL-23053/5, Class 1
Inner Diameter After Shrink (Imperial)0.023
Elongation UOM%
