3M Products & Supplies

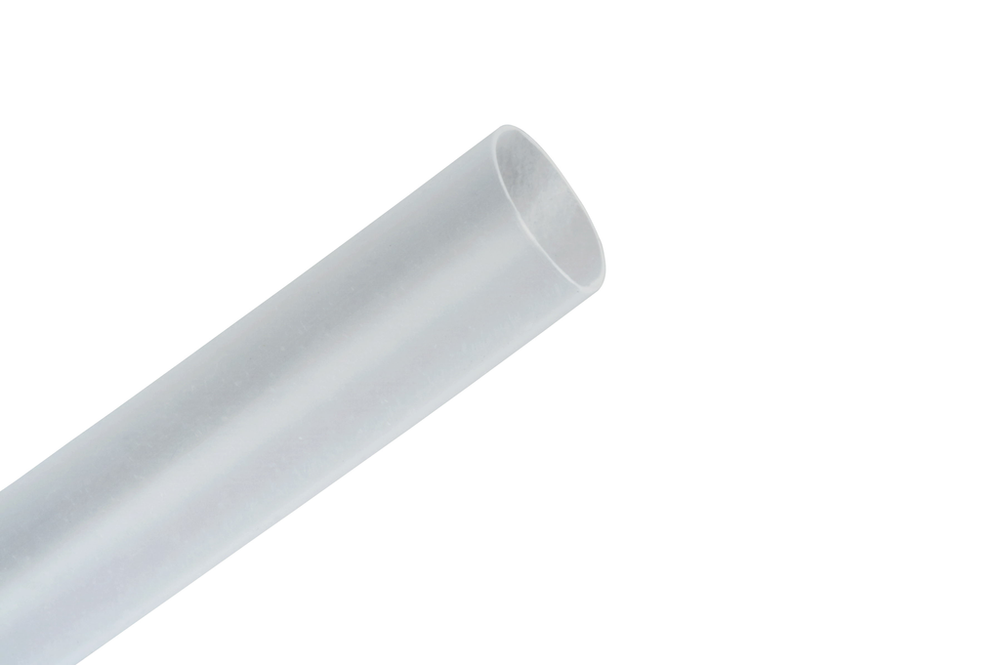

3M™ Heat Shrink Thin-Wall Tubing FP-301-1/2-6"-Clear-10-10 Pc Pks, 6 in Length pieces, 10 pieces/pack, 10 packs/case - 7100028820

Sold As: 10-Pack
SKU: 7100028820
MPN: 7100028820
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128601136
3M ID: 80611603756
5 Digit UPC: 60113
$102.73 ($10.27 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Maximum Operating Temperature (Fahrenheit)275.0
Tubing TypeSingle Wall (Thin)
Operating Temperature Range (Celsius)-55 °C to +135 °C
Flame RetardantNo
Mil SpecSAE-AMS-DTL-23053/5, Class 2
Non-CorrosiveYes
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Inner Diameter Before Shrink (Metric) UOMmm
Overall Length (Imperial)6.0
Inner Diameter After Shrink (Imperial) UOMin
Minimum Expanded Tubing I. D.0.5
Maximum Operating Temperature (Celsius) UomDegree
Elongation UOM%
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Inner Diameter Before Shrink (Metric)12.7
Shrink Ratio2:1
Maximum Operating Temperature (Celsius)135.0
Overall Width (Imperial)0.5
Overall Width (Imperial) UOMin
UL Bug Voltage600 Volt
Inner Diameter After Shrink (Imperial)0.25
Overall Width (Metric)12.7
Maximum Operating Temperature (Fahrenheit) UOMDegree
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Inner Diameter After Shrink (Metric)6.35
UL ApprovalYes
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Overall Length (Imperial) UOMin
UL Bug Temperature (Celsius)125 Degrees Celsius
Inner Diameter After Shrink (Metric) UOMmm
Inner Diameter Before Shrink (Imperial) UOMin
Minimum Shrink Temperature (Celsius)100.0
UL Bug Temperature (Fahrenheit)257 Degrees Fahrenheit
Inner Diameter Before Shrink (Imperial)0.5
Units per Case10.0
Operating Temperature Range (Fahrenheit)-67 °F to 275 °F
Minimum Expanded Tubing I. D. UOMin
MaterialPolyolefin
Overall Width (Metric) UOMmm
Adhesive MaterialNone
Overall Length (Metric)152.4
Operating Temperature (Fahrenheit)-67 °F to 275 °F
Product ColorTransparent
Overall Length (Metric) UOMmm
