3M Products & Supplies

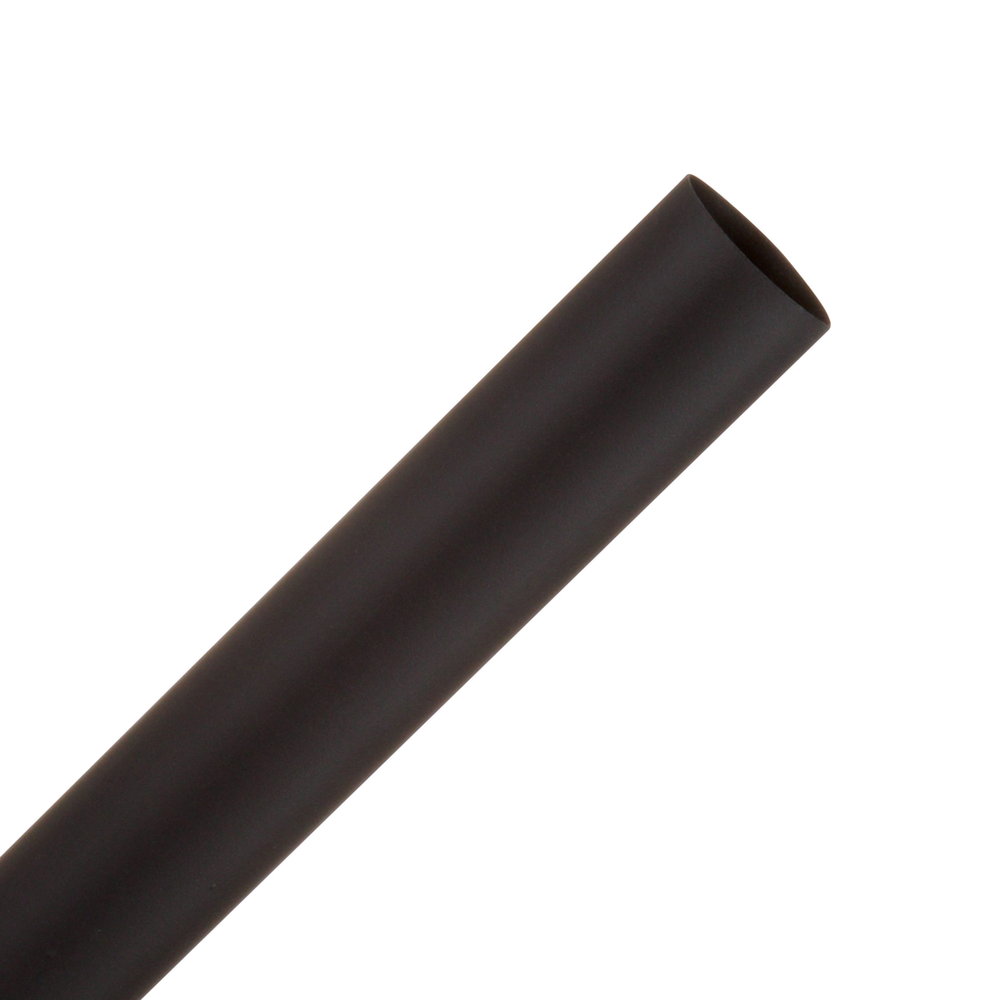

3M™ Heat Shrink Thin-Wall Tubing FP-301-1/2-6"-Black-10-10 Pc Pks, 6 in Length pieces, 10 pieces/pack, 10 packs/case - 7000133687

Sold As: 10-Pack
SKU: 7000133687
MPN: 7000133687
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128601129
3M ID: 80611603749
5 Digit UPC: 60112
$100.85 ($10.08 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
UL Bug Temperature (Celsius)125 Degrees Celsius
Inner Diameter Before Shrink (Imperial)0.5
Minimum Expanded Tubing I. D. UOMin
Non-CorrosiveYes
Inner Diameter After Shrink (Imperial) UOMin
Inner Diameter After Shrink (Metric) UOMmm
UL ApprovalYes
UL Bug Voltage600 Volt
Mil SpecSAE-AMS-DTL-23053/5, Class 1
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Minimum Expanded Tubing I. D.0.5
Overall Width (Imperial) UOMin
Inner Diameter Before Shrink (Metric)12.7
Inner Diameter Before Shrink (Metric) UOMmm
Overall Length (Metric)152.4
UL File NumberE-39100
Maximum Operating Temperature (Fahrenheit) UOMDegree
Adhesive MaterialNone
Maximum Operating Temperature (Fahrenheit)275.0
Overall Width (Imperial)0.5
Maximum Operating Temperature (Celsius) UomDegree
Minimum Shrink Temperature (Celsius)100.0
UL Bug Temperature (Fahrenheit)257 Degrees Fahrenheit
Overall Length (Imperial)6.0
Overall Width (Metric) UOMmm
Overall Length (Metric) UOMmm
Inner Diameter After Shrink (Imperial)0.25
Flame RetardantYes
Operating Temperature Range (Fahrenheit)-67 °F to 275 °F
Elongation UOMdB
Units per Case10.0
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Operating Temperature (Celsius)135.0
Product ColorBlack
Operating Temperature (Fahrenheit)-67 °F to 275 °F
Shrink Ratio2:1
Overall Length (Imperial) UOMin
Operating Temperature Range (Celsius)-55 °C to +135 °C
MaterialPolyolefin
Inner Diameter After Shrink (Metric)6.35
Inner Diameter Before Shrink (Imperial) UOMin
Tubing TypeSingle Wall (Thin)
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
