3M Products & Supplies

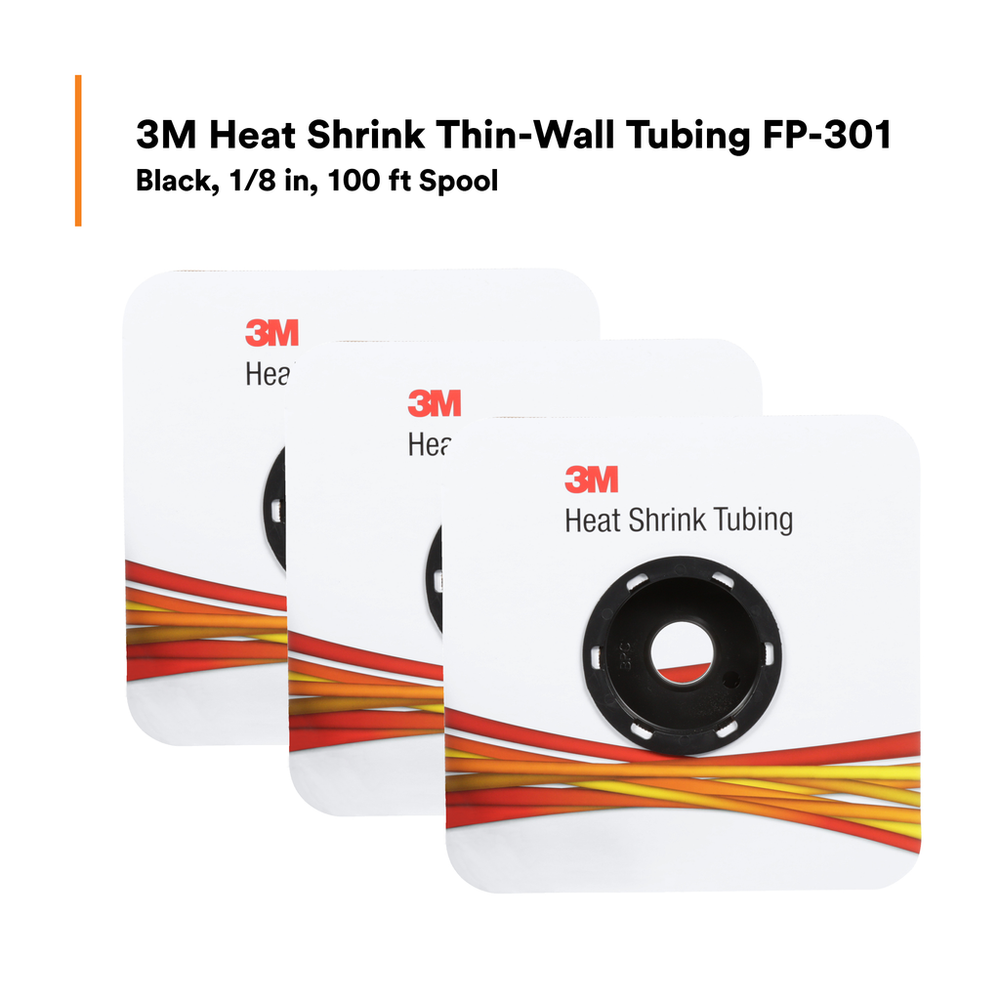

3M™ Heat Shrink Thin-Wall Tubing FP-301-1/8-Black-100': 100 ft spool length, 300 linear ft/box, 3 Rolls/Case - 7100029984

Sold As: 300-Pack
SKU: 7100029984
MPN: 7100029984
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00076308624118
3M ID: 80610752208
5 Digit UPC: 62411
$197.11 ($0.66 / Count)
Hurry up! Current stock:

Product Description

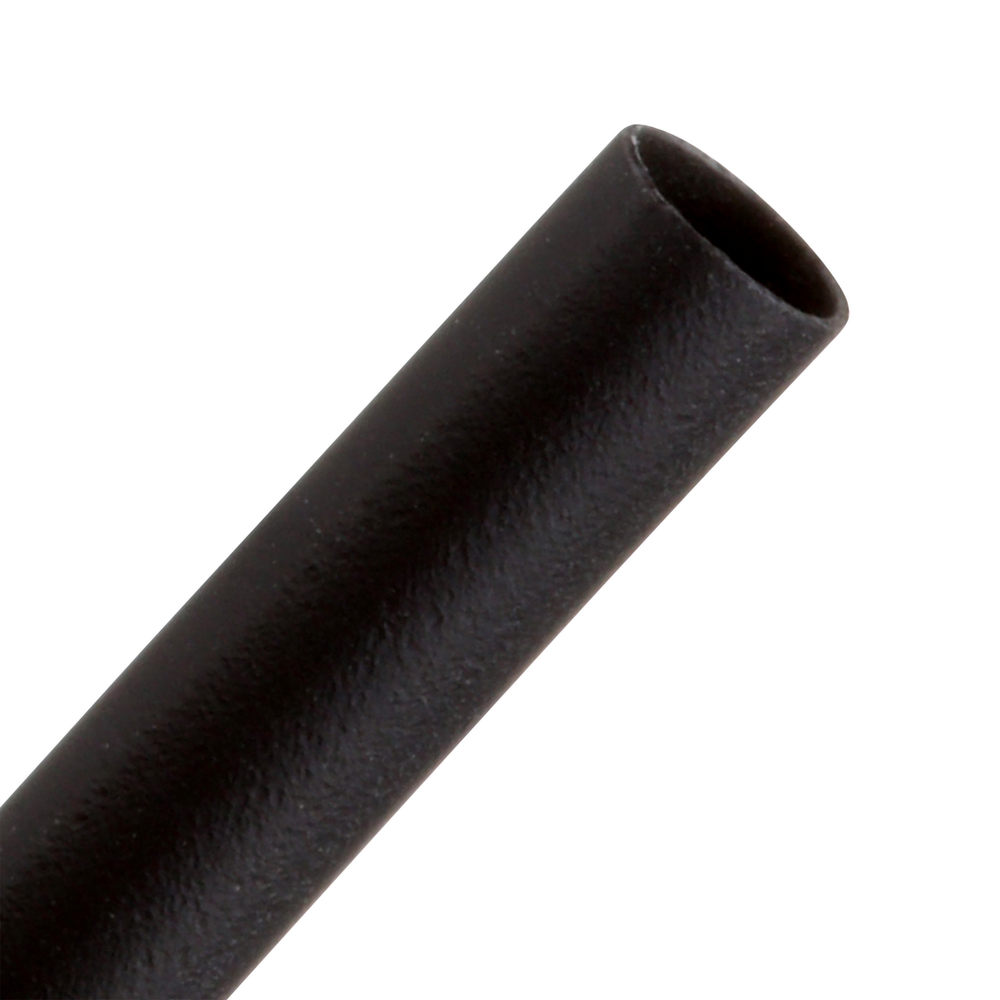

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Inner Diameter Before Shrink (Metric)3.18
Inner Diameter Before Shrink (Imperial) UOMin
Inner Diameter Before Shrink (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Expanded Tubing I. D.1.0
Maximum Operating Temperature (Celsius) UomDegree
MaterialFlexible Polyolefin
Overall Length (Metric)30.5
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Inner Diameter After Shrink (Metric) UOMmm
Inner Diameter After Shrink (Imperial)0.062
Shrink Ratio2:1
Inner Diameter After Shrink (Imperial) UOMin
Adhesive MaterialNone
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Non-CorrosiveYes
Overall Length (Imperial) UOMft
Operating Temperature Range (Celsius)-55 °C to +135 °C
Maximum Operating Temperature (Fahrenheit)275.0
Maximum Operating Temperature (Celsius)135.0
Inner Diameter Before Shrink (Imperial)0.125
Overall Length (Metric) UOMm
Flame RetardantYes
Tubing TypeSingle Wall (Thin)
Inner Diameter After Shrink (Metric)1.57
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Operating Temperature Range (Fahrenheit)-67 °F to 275 °F
Elongation UOMDecibel
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Overall Length (Imperial)100.0
UL ApprovalYes
Mil SpecAMS-DTL-23053/5, Class 1
Units per Case3.0
UL File NumberE-39100
Minimum Shrink Temperature (Celsius)100.0
Minimum Expanded Tubing I. D. UOMin
