3M Products & Supplies

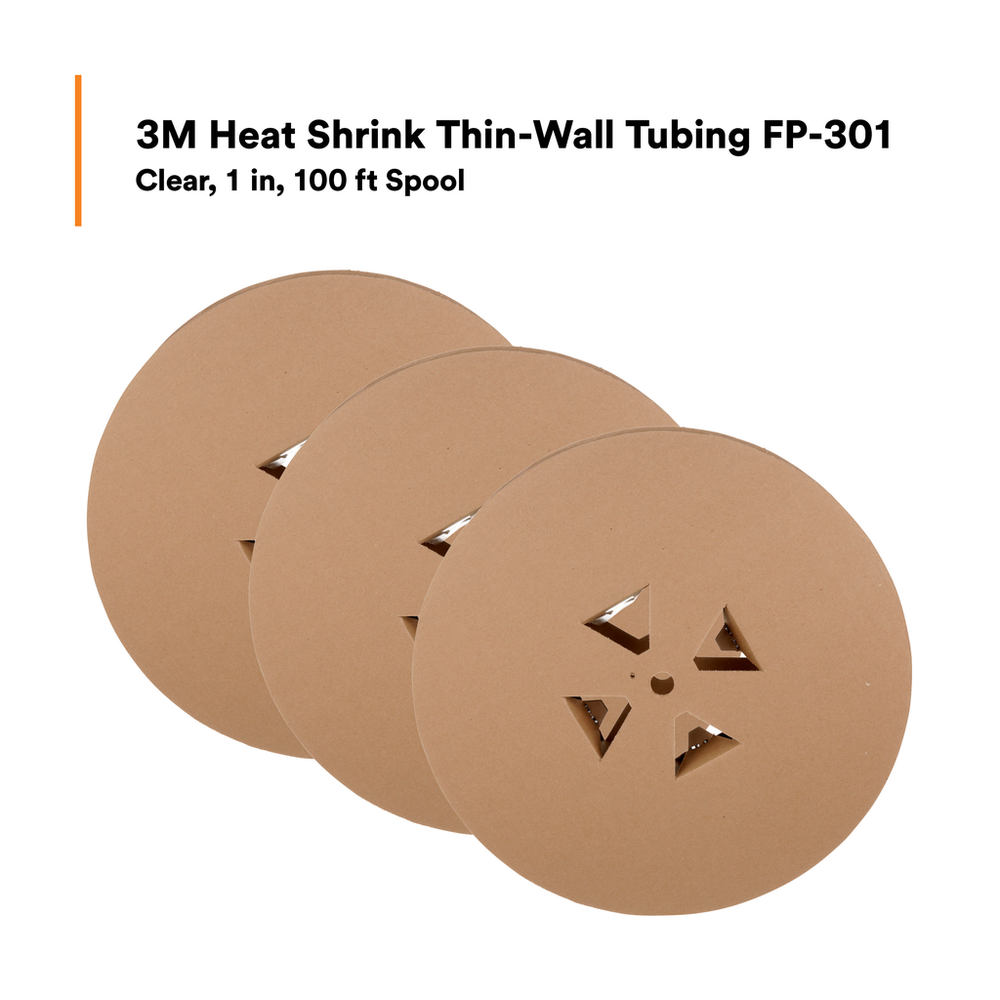

3M™ Heat Shrink Thin-Wall Tubing FP-301-1-Clear-100`: 100 ft spool length, 300 linear ft/box, 3 Rolls/Case - 7100019710

Sold As: 300-Pack
SKU: 7100019710
MPN: 7100019710
For an accurate lead time please contact us
UPC: 10054007085321
3M ID: 80610220008
5 Digit UPC: 8532
$399.65 ($1.33 / Count)
Hurry up! Current stock:

Product Description

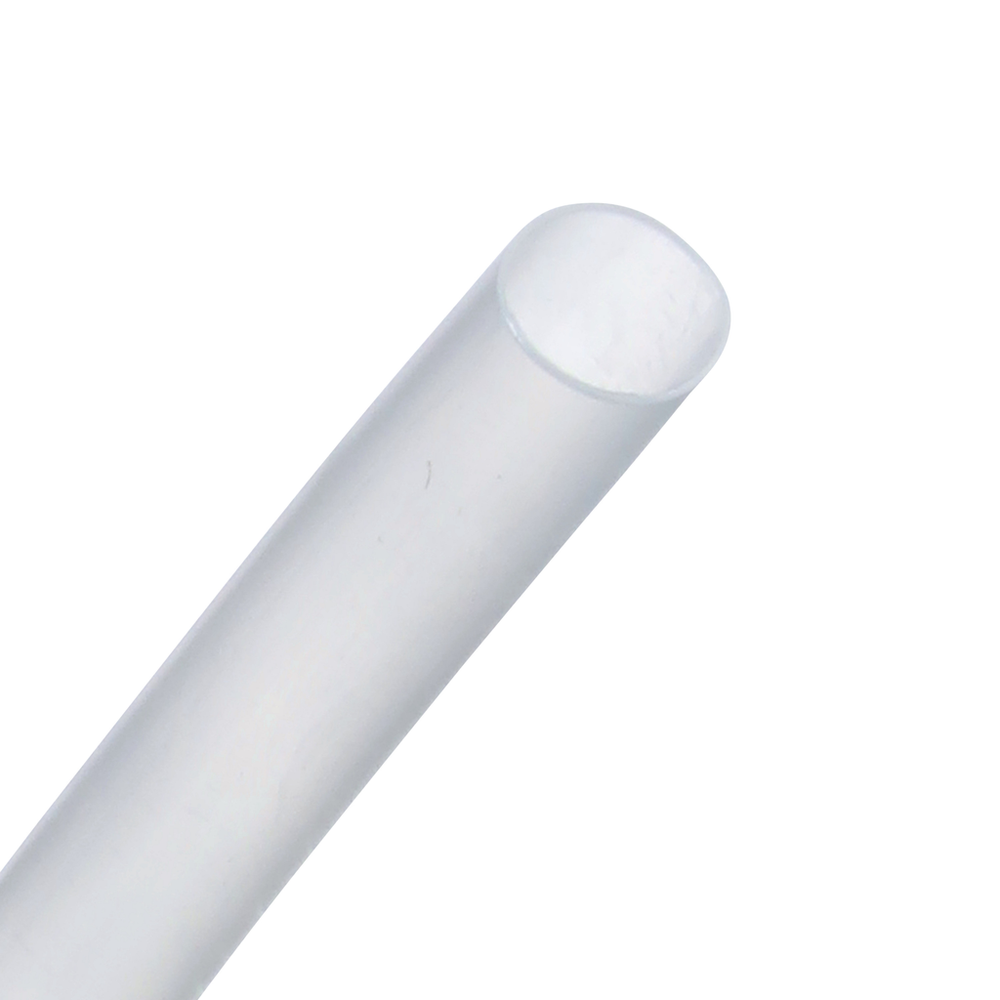

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Minimum Expanded Tubing I. D.1.0
Non-CorrosiveYes
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
UL ApprovalYes
Overall Length (Imperial)100.0
Tubing TypeSingle Wall (Thin)
Inner Diameter After Shrink (Metric) UOMmm
Minimum Expanded Tubing I. D. UOMin
Operating Temperature Range (Celsius)-55 °C to +135 °C
Units per Case3.0
Adhesive MaterialNone
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Elongation UOMdB
Product ColorTransparent
Minimum Shrink Temperature (Celsius)100.0
Maximum Operating Temperature (Fahrenheit)275.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Celsius)135.0
Inner Diameter Before Shrink (Imperial) UOMin
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Mil SpecAMS-DTL-23053/5, Class 2
Overall Length (Imperial) UOMft
Flame RetardantNo
Inner Diameter Before Shrink (Metric) UOMmm
Inner Diameter After Shrink (Imperial)0.5
Inner Diameter Before Shrink (Metric)25.4
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Maximum Operating Temperature (Celsius) UomDegree
MaterialFlexible Polyolefin
UL File NumberE-39100
Inner Diameter After Shrink (Metric)12.7
Shrink Ratio2:1
Operating Temperature Range (Fahrenheit)-67 °F to 275 °F
Inner Diameter Before Shrink (Imperial)1.0
Product FormStick
Inner Diameter After Shrink (Imperial) UOMin
