3M Products & Supplies

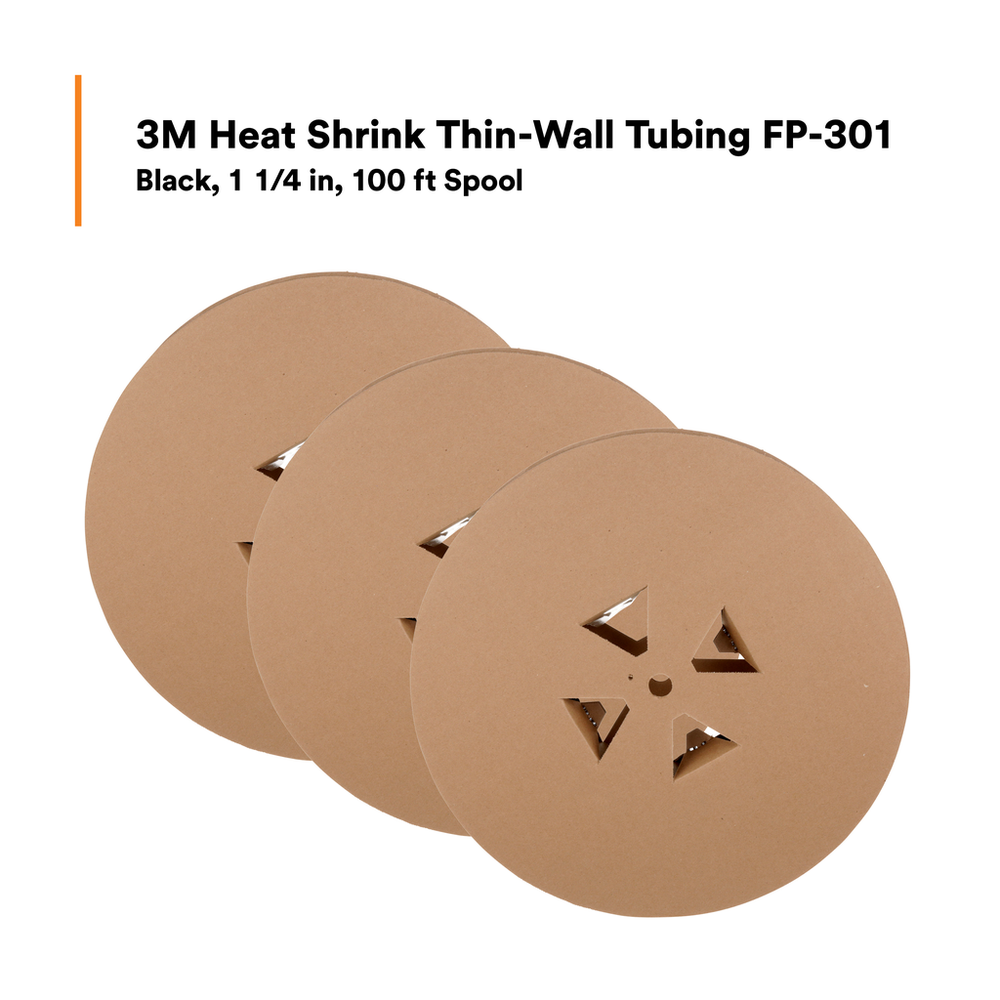

3M™ Heat Shrink Thin-Wall Tubing FP-301-1.25-Black-100': 100 ft spool length, 300 linear ft/box, 3 Rolls/Case - 7100019840

Sold As: 300-Pack
SKU: 7100019840
MPN: 7100019840
For an accurate lead time please contact us
UPC: 10054007412394
3M ID: 80610335699
5 Digit UPC: 41239
$772.31 ($2.57 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Inner Diameter After Shrink (Metric)16.0
Minimum Shrink Temperature (Celsius)100.0
Operating Temperature Range (Celsius)-55 °C to +135 °C
UL ApprovalYes
Inner Diameter Before Shrink (Metric) UOMmm
Operating Temperature Range (Fahrenheit)-67 °F to 275 °F
UL File NumberE-39100
Elongation UOM%
Inner Diameter Before Shrink (Imperial) UOMin
Inner Diameter Before Shrink (Imperial)1.25
Maximum Operating Temperature (Fahrenheit)275.0
Non-CorrosiveYes
Tubing TypeSingle Wall (Thin)
Product ColorBlack
Mil SpecAMS-DTL-23053/5, Class 1
MaterialFlexible Polyolefin
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Shrink Ratio2:1
Adhesive MaterialNone
Inner Diameter After Shrink (Metric) UOMmm
Flame RetardantYes
Maximum Operating Temperature (Celsius) UomDegree
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Inner Diameter After Shrink (Imperial)0.63
Overall Length (Imperial)100.0
Inner Diameter After Shrink (Imperial) UOMin
Inner Diameter Before Shrink (Metric)31.75
Overall Length (Imperial) UOMft
Maximum Operating Temperature (Celsius)135.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
