3M Products & Supplies

3M™ Heat Shrink Thin-Wall Tubing FP-301-3/16-Black-100`: 100 ft spool length, 300 linear ft/box, 3 Rolls/Case - 7100030001

Sold As: 300-Pack
SKU: 7100030001
MPN: 7100030001
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051135355688
3M ID: 80610752265
5 Digit UPC: 35568
$197.11 ($0.66 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications

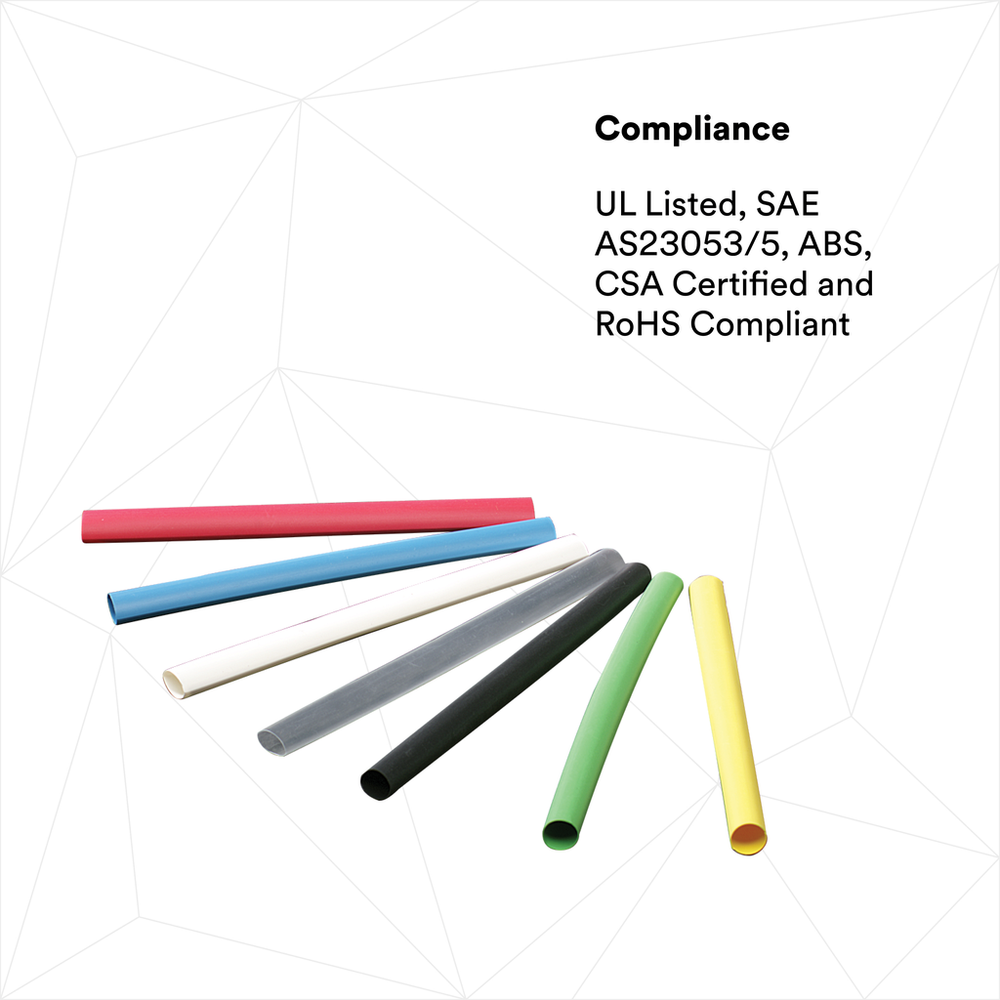

  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
Spec Sheet



Downloads

Specifications

Shelf Life3650
Country of OriginUnited States
Minimum Expanded Tubing I. D.3.0
Overall Length (Metric)30.5
Mil SpecAMS-DTL-23053/5, Class 1
Overall Length (Metric) UOMm
Maximum Operating Temperature (Fahrenheit)275.0
Overall Length (Imperial) UOMft
Maximum Operating Temperature (Fahrenheit) UOMDegree
Inner Diameter Before Shrink (Metric)4.75
Non-CorrosiveYes
UL ApprovalYes
Flame RetardantYes
Shrink Ratio2:1
Minimum Shrink Temperature (Celsius)100.0
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Maximum Operating Temperature (Celsius) UomDegree
Tubing TypeSingle Wall (Thin)
Inner Diameter Before Shrink (Imperial)0.187
Inner Diameter After Shrink (Metric) UOMmm
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Adhesive MaterialNone
Elongation UOM%
Inner Diameter Before Shrink (Imperial) UOMin
Inner Diameter Before Shrink (Metric) UOMmm
MaterialFlexible Polyolefin
Inner Diameter After Shrink (Imperial) UOMin
Maximum Operating Temperature (Celsius)135.0
Product ColorBlack
Overall Length (Imperial)100.0
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Operating Temperature Range (Celsius)-55 °C to +135 °C
Minimum Expanded Tubing I. D. UOMin
Units per Case3.0
Operating Temperature Range (Fahrenheit)-67 °F to 275 °F
UL File NumberE-39100
Inner Diameter After Shrink (Metric)2.36
Inner Diameter After Shrink (Imperial)0.093
