3M Products & Supplies

3M™ Heat Shrink Thin-Wall Tubing FP-301-1-Green-100`: 100 ft spool length, 300 ft/box, 3 Rolls/Case - 7100019711

Sold As: 900-Pack
SKU: 7100019711
MPN: 7100019711
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 10051135377656
3M ID: 80610856629
5 Digit UPC: 37765
$1,198.94 ($1.33 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)

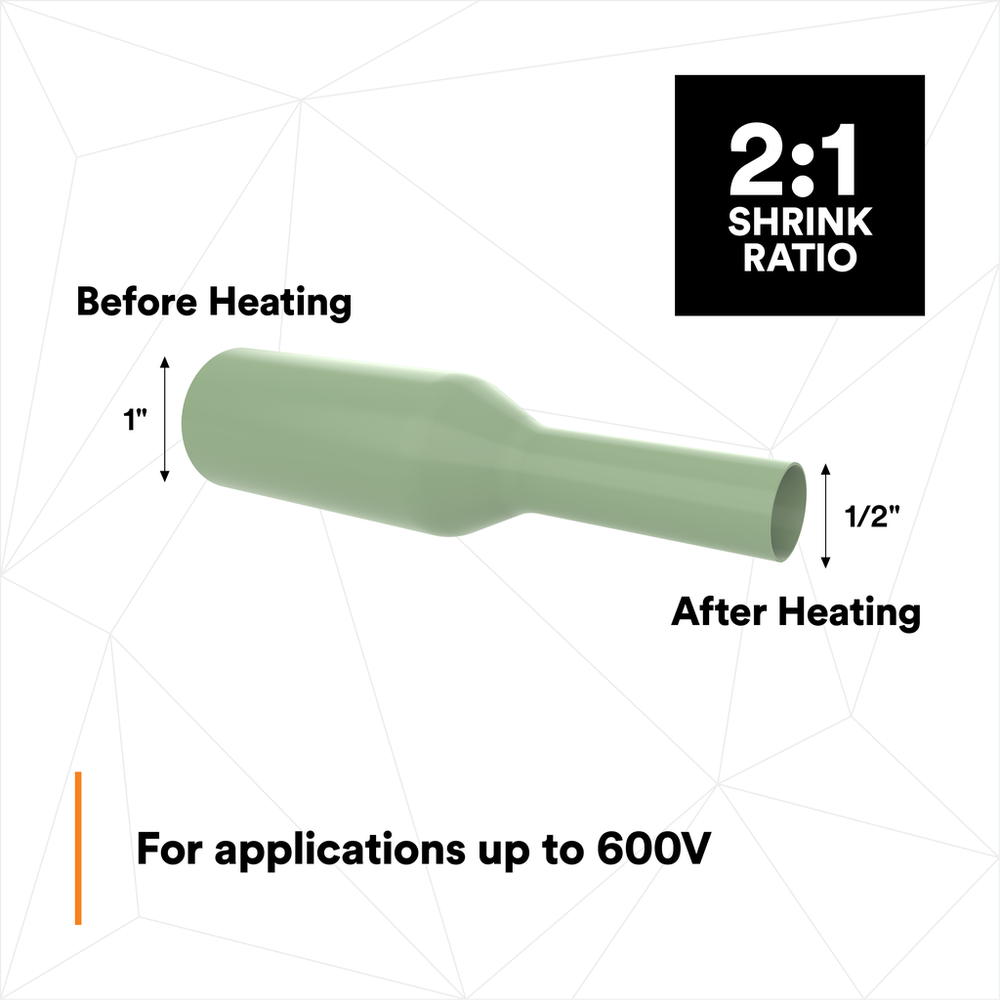

  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Overall Length (Imperial) UOMft
Inner Diameter After Shrink (Metric)12.7
Inner Diameter Before Shrink (Imperial)1.0
Adhesive MaterialNone
Inner Diameter Before Shrink (Imperial) UOMin
Inner Diameter Before Shrink (Metric) UOMmm
UL File NumberE-39100
Non-CorrosiveYes
Overall Length (Imperial)100.0
Maximum Operating Temperature (Celsius)135.0
Minimum Expanded Tubing I. D. UOMin
Minimum Expanded Tubing I. D.1.0
Operating Temperature Range (Celsius)-55 °C to +135 °C
Inner Diameter Before Shrink (Metric)25.4
Mil SpecAMS-DTL-23053/5, Class 1
Inner Diameter After Shrink (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit)275.0
Tubing TypeSingle Wall (Thin)
Shrink Ratio2:1
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Operating Temperature Range (Fahrenheit)-67 °F to 275 °F
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Inner Diameter After Shrink (Imperial)0.5
Minimum Shrink Temperature (Celsius)100.0
Elongation UOM%
Inner Diameter After Shrink (Metric) UOMmm
UL ApprovalYes
Product ColorGreen
Flame RetardantYes
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
MaterialFlexible Polyolefin
Maximum Operating Temperature (Celsius) UomDegree
Maximum Operating Temperature (Fahrenheit) UOMDegree
Product FormStick
