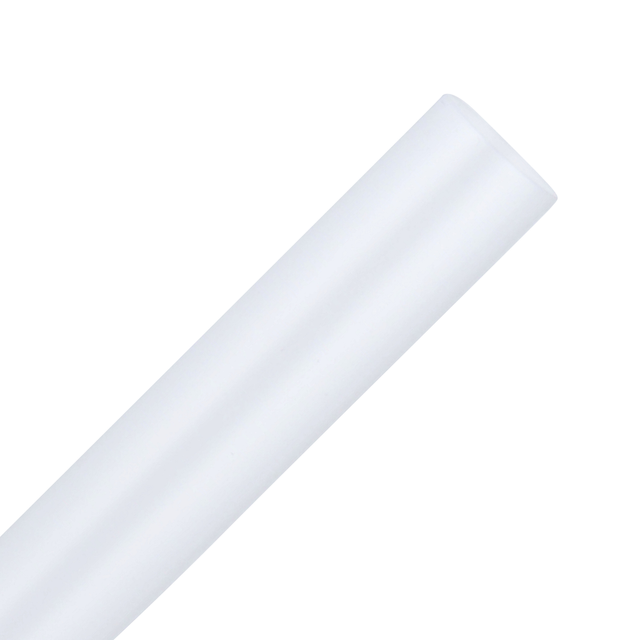

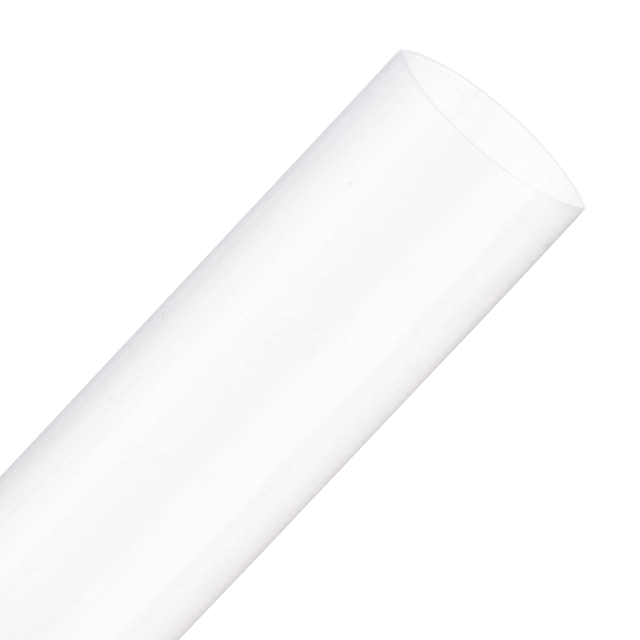

3M™ Heat Shrink Thin-Wall Tubing FP-301-1-Clear-48", 5/Case - 7000133521

Name: 3M™ Heat Shrink Thin-Wall Tubing FP-301-1-Clear-48", 5/Case - 7000133521
Brand: 3M Products & Supplies
SKU: 7000133521
Price: 40.54 USD
Availability: InStock

Sold As: 5-Pack

SKU: 7000133521

MPN: 7000133521

For an accurate lead time please contact us

UPC: 00051128596050

3M ID: 80611472665

5 Digit UPC: 59605

$40.54 ($8.11 / Count)

Hurry up! Current stock:

Quantity:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)

Spec Sheet

Downloads

Spec Sheet

Product Selection Guides

Document Brochures

Specifications

Shelf Life	3600
Country of Origin	United States
Overall Length (Imperial) UOM	in
Operating Temperature Range (Fahrenheit)	-67 °F to 275 °F
UL Approval	Yes
Shrink Ratio	2:1
Units per Case	5.0
Inner Diameter Before Shrink (Metric)	25.4
Operating Temperature (Celsius)	-55 to 135 Degrees Celsius
Inner Diameter After Shrink (Imperial) UOM	in
Operating Temperature Range (Celsius)	-55 °C to +135 °C
Tubing Type	Single Wall (Thin)
Inner Diameter Before Shrink (Metric) UOM	mm
Inner Diameter After Shrink (Metric)	12.7
Operating Temperature (Fahrenheit)	-67 °F to 275 °F
Heat Shrink Type	Single-Wall Polyolefin Heat Shrink Tubing
Flame Retardant	No
Minimum Expanded Tubing I. D.	1.0
Inner Diameter Before Shrink (Imperial)	1.0
Inner Diameter After Shrink (Imperial)	0.5
Product Color	Transparent
Overall Length (Imperial)	48.0
Minimum Expanded Tubing I. D. UOM	in
Adhesive Material	None
RoHS EU Comments	RoHS 2011/65/EU compliant without exemption
UL Bug Voltage	600 Volt
Material	Polyolefin
UL Bug Temperature (Celsius)	125 Degrees Celsius
Non-Corrosive	Yes
Minimum Shrink Temperature (Celsius)	100.0
Overall Length (Metric)	1220.0
Application	Electrical Insulation; High-tenacity and chemically resistant tubing
Overall Length (Metric) UOM	mm
UL Bug Temperature (Fahrenheit)	257 Degrees Fahrenheit
Inner Diameter After Shrink (Metric) UOM	mm
Maximum Operating Temperature (Fahrenheit) UOM	Degree
Overall Width (Imperial) UOM	in
Maximum Operating Temperature (Fahrenheit)	275.0
Overall Width (Metric)	25.4
Overall Width (Metric) UOM	mm
Elongation UOM	%
Overall Width (Imperial)	1.0
Mil Spec	AMS-DTL-23053/5, Class 1
Maximum Operating Temperature (Celsius)	135.0
Maximum Operating Temperature (Celsius) Uom	Degree
Inner Diameter Before Shrink (Imperial) UOM	in
