3M™ Heat Shrink Thin-Wall Tubing FP-301-3/8-Clear-48, 12/Case - 7000133502

Name: 3M™ Heat Shrink Thin-Wall Tubing FP-301-3/8-Clear-48, 12/Case - 7000133502
Brand: 3M Products & Supplies
SKU: 7000133502
Price: 47.27 USD
Availability: InStock

Sold As: 12-Pack

SKU: 7000133502

MPN: 7000133502

Stock Item: Stock items typically ship within 2-3 business days

UPC: 00051128595855

3M ID: 80611472467

5 Digit UPC: 59585

$47.27 ($3.94 / Count)

Hurry up! Current stock:

Quantity:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)

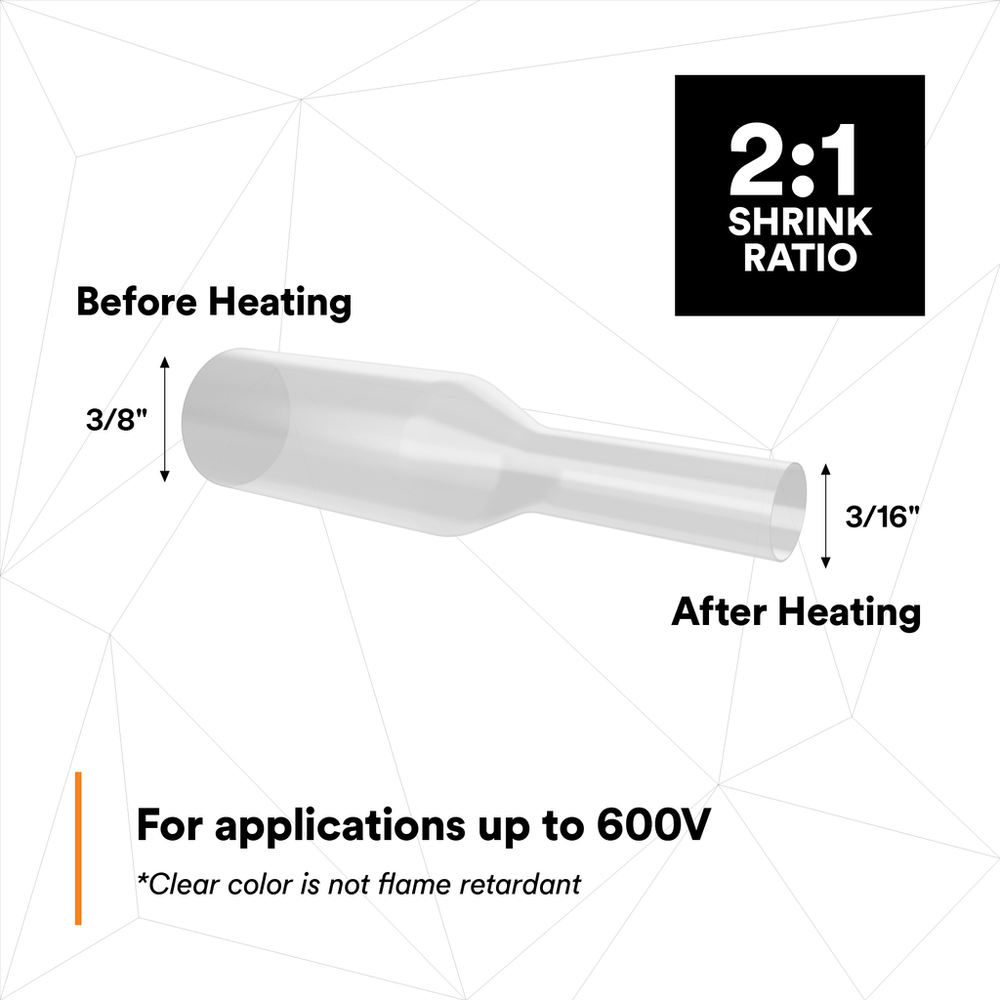

A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant

Spec Sheet

Downloads

Document Brochures

Spec Sheet

Product Selection Guides

Specifications

Shelf Life	3600
Country of Origin	United States
RoHS EU Comments	RoHS 2011/65/EU compliant without exemption
Flame Retardant	No
Maximum Operating Temperature (Fahrenheit) UOM	Degree
Inner Diameter After Shrink (Metric)	4.75
Shrink Ratio	2:1
Non-Corrosive	Yes
UL Bug Voltage	600 Volt
Operating Temperature Range (Celsius)	-55 °C to +135 °C
Overall Width (Imperial) UOM	in
Overall Width (Imperial)	0.37
Minimum Expanded Tubing I. D.	3.0
Inner Diameter After Shrink (Metric) UOM	mm
Maximum Operating Temperature (Fahrenheit)	275.0
Inner Diameter Before Shrink (Imperial)	0.375
Elongation UOM	%
Application	Electrical Insulation; High-tenacity and chemically resistant tubing
Inner Diameter After Shrink (Imperial)	0.187
Operating Temperature (Fahrenheit)	-67 °F to 275 °F
Minimum Shrink Temperature (Celsius)	100.0
Inner Diameter Before Shrink (Metric) UOM	mm
Operating Temperature Range (Fahrenheit)	-67 °F to 275 °F
Heat Shrink Type	Single-Wall Polyolefin Heat Shrink Tubing
Maximum Operating Temperature (Celsius)	135.0
Inner Diameter Before Shrink (Imperial) UOM	in
Minimum Expanded Tubing I. D. UOM	in
UL Approval	Yes
Overall Length (Imperial)	48.0
Units per Case	12.0
Material	Polyolefin
Mil Spec	AMS-DTL-23053/5, Class 1
Tubing Type	Single Wall (Thin)
Overall Length (Metric) UOM	mm
Overall Length (Imperial) UOM	in
Operating Temperature (Celsius)	-55 to 135 Degrees Celsius
Adhesive Material	None
UL Bug Temperature (Celsius)	125 Degrees Celsius
Overall Width (Metric)	9.52
Product Color	Transparent
Inner Diameter Before Shrink (Metric)	9.53
Overall Width (Metric) UOM	mm
Maximum Operating Temperature (Celsius) Uom	Degree
Overall Length (Metric)	1220.0
Inner Diameter After Shrink (Imperial) UOM	in
UL Bug Temperature (Fahrenheit)	257 Degrees Fahrenheit
