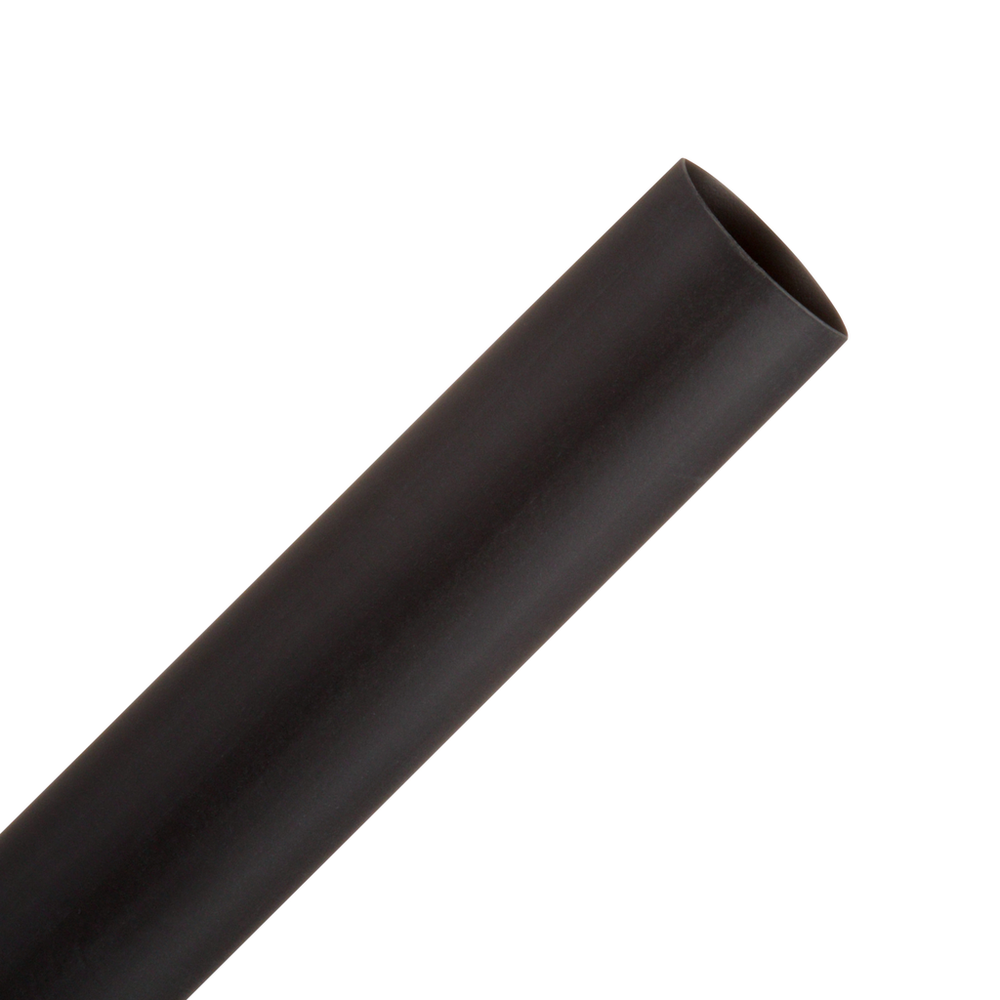

3M™ Heat Shrink Thin-Wall Tubing FP-301-3/4-Black-48", 50/Case - 7000133612

Name: 3M™ Heat Shrink Thin-Wall Tubing FP-301-3/4-Black-48", 50/Case - 7000133612
Brand: 3M Products & Supplies
SKU: 7000133612
Price: 228.83 USD
Availability: InStock

Sold As: 50-Pack

SKU: 7000133612

MPN: 7000133612

Stock Item: Stock items typically ship within 2-3 business days

UPC: 10051128598648

3M ID: 80611601255

5 Digit UPC: 59864

$228.83 ($4.58 / Count)

Hurry up! Current stock:

Quantity:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications

Spec Sheet

Downloads

Document Brochures

Product Selection Guides

Spec Sheet

Safety Data Sheet

Specifications

Shelf Life	3600
Country of Origin	United States
Operating Temperature (Fahrenheit)	-67 °F to 275 °F
UL Approval	Yes
Maximum Operating Temperature (Fahrenheit)	275.0
Overall Length (Imperial)	48.0
Inner Diameter After Shrink (Metric)	9.53
Minimum Shrink Temperature (Celsius)	100.0
Inner Diameter After Shrink (Imperial) UOM	in
Material	Polyolefin
Maximum Operating Temperature (Fahrenheit) UOM	Degree
Mil Spec	AMS-DTL-23053/5, Class 1
Overall Width (Metric)	19.05
Maximum Operating Temperature (Celsius) Uom	Degree
Inner Diameter Before Shrink (Imperial)	0.75
Inner Diameter Before Shrink (Metric)	19.05
Minimum Expanded Tubing I. D. UOM	in
Operating Temperature Range (Fahrenheit)	-67 °F to 275 °F
UL Bug Temperature (Fahrenheit)	257 Degrees Fahrenheit
UL Bug Temperature (Celsius)	125 Degrees Celsius
RoHS EU Comments	RoHS 2011/65/EU compliant without exemption
Adhesive Material	None
Maximum Operating Temperature (Celsius)	135.0
Overall Length (Metric) UOM	mm
Overall Width (Metric) UOM	mm
Inner Diameter Before Shrink (Metric) UOM	mm
Non-Corrosive	Yes
Application	Electrical Insulation; High-tenacity and chemically resistant tubing
Overall Length (Metric)	1220.0
Shrink Ratio	2:1
Operating Temperature Range (Celsius)	-55 °C to +135 °C
Operating Temperature (Celsius)	-55 to 135 Degrees Celsius
UL Bug Voltage	600 Volt
Overall Width (Imperial) UOM	in
Heat Shrink Type	Single-Wall Polyolefin Heat Shrink Tubing
Flame Retardant	Yes
Units per Case	50.0
Inner Diameter Before Shrink (Imperial) UOM	in
Overall Width (Imperial)	0.75
Inner Diameter After Shrink (Imperial)	0.375
Elongation UOM	%
Minimum Expanded Tubing I. D.	3.0
Product Color	Black
Tubing Type	Single Wall (Thin)
Overall Length (Imperial) UOM	in
Inner Diameter After Shrink (Metric) UOM	mm
