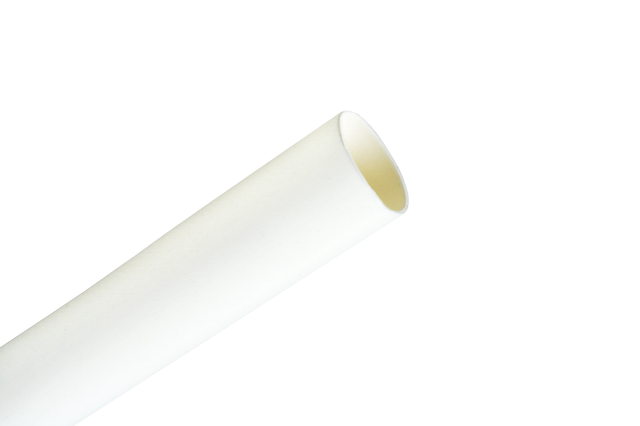

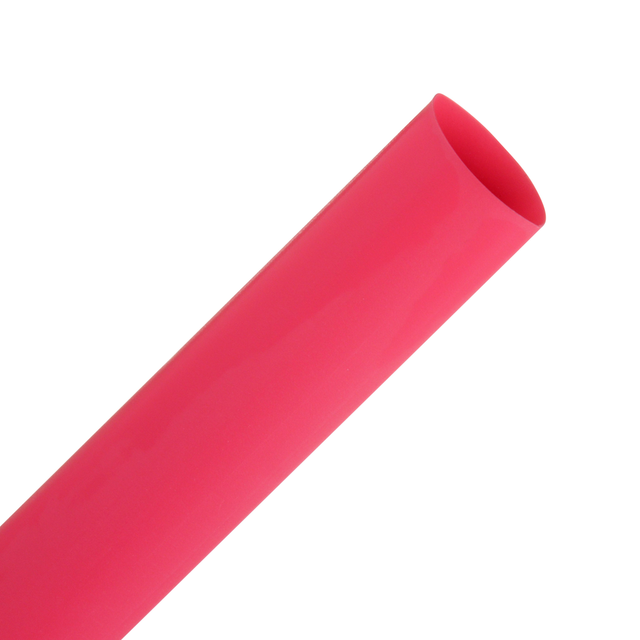

3M™ Heat Shrink Thin-Wall Flexible Polyolefin Tubing FP-301, 50/Case - 7100199705

Name: 3M™ Heat Shrink Thin-Wall Flexible Polyolefin Tubing FP-301, 50/Case - 7100199705
Brand: 3M Products & Supplies
SKU: 7100199705
Price: 306.88 USD
Availability: InStock

Sold As: 50-Pack

SKU: 7100199705

MPN: 7100199705

Made to Order: For a lead time estimate, please send your request to [email protected]

UPC: 00638060290248

3M ID: 80000216426

5 Digit UPC: 29024

$306.88 ($6.14 / Count)

Hurry up! Current stock:

Quantity:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

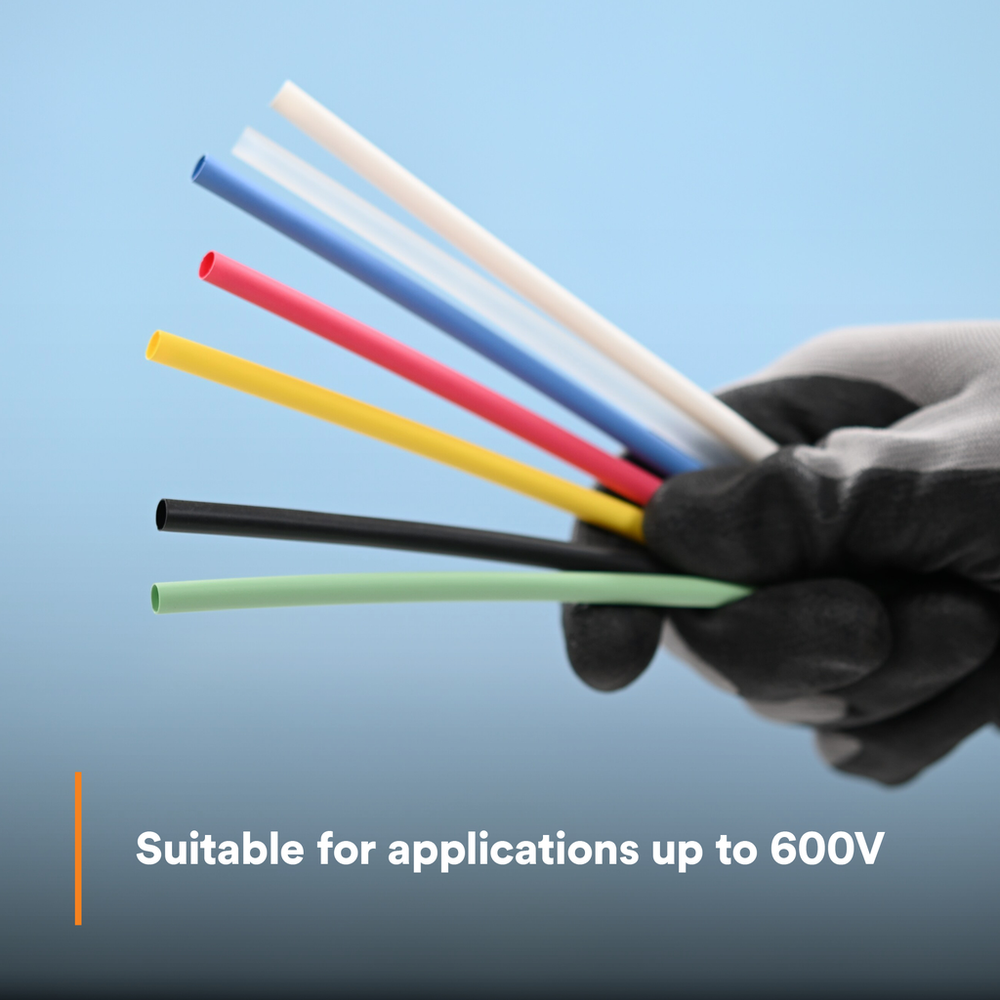

FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications

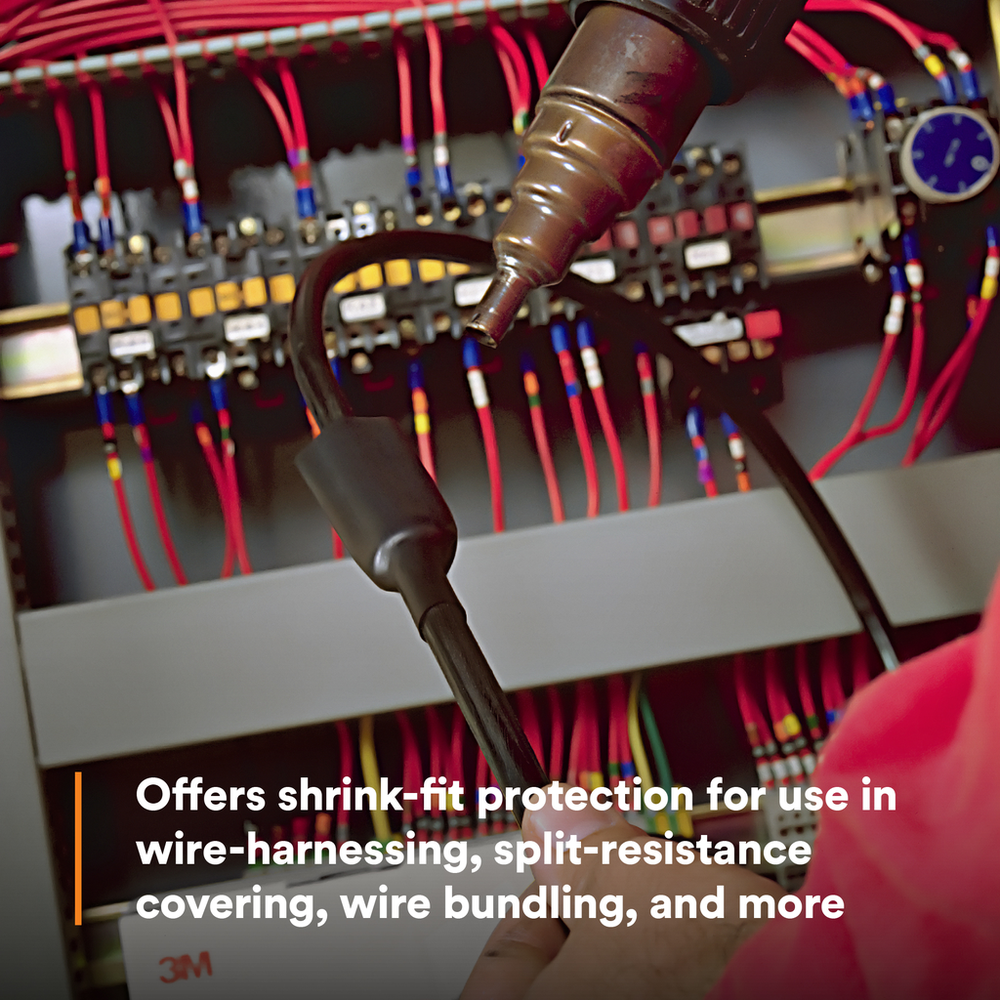

A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)

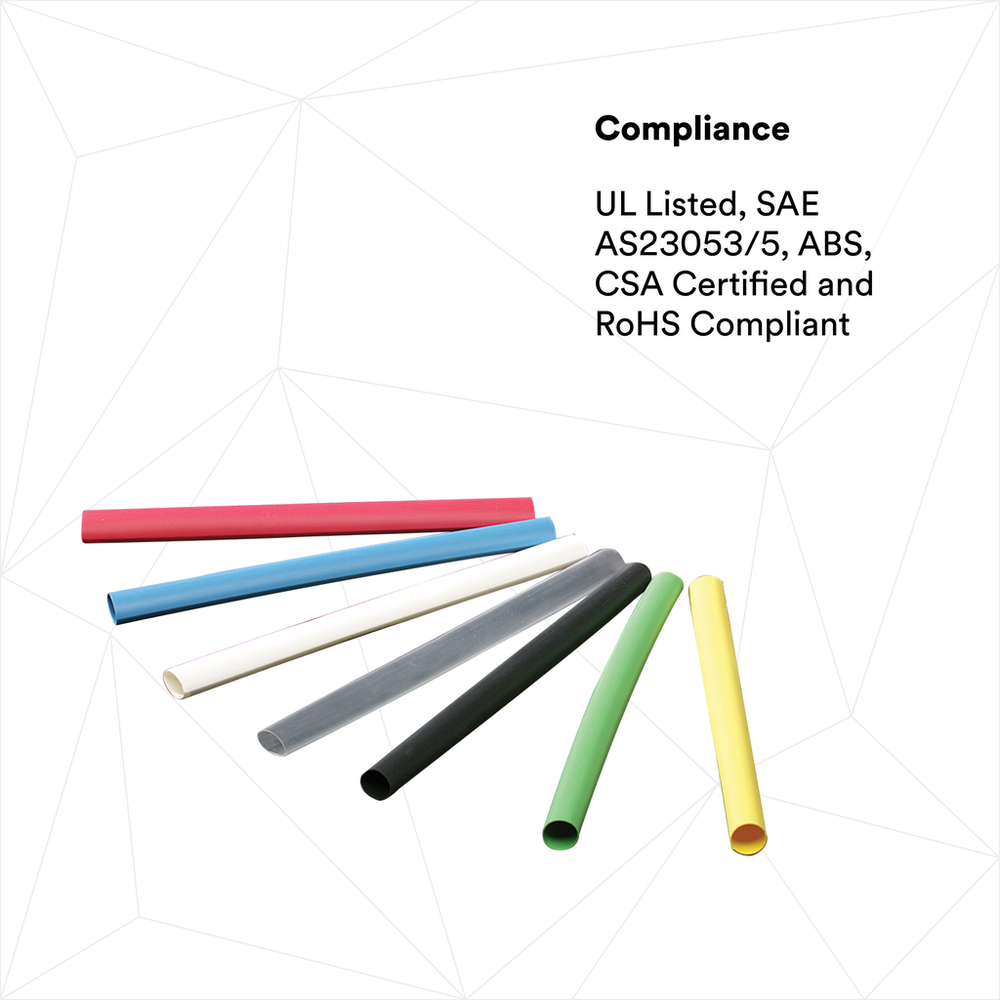

KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant

Spec Sheet

Downloads

Spec Sheet

Specifications

Shelf Life	3600
Country of Origin	United States
Application	Electrical Insulation; High-tenacity and chemically resistant tubing
Adhesive Material	None
Non-Corrosive	Yes
Elongation UOM	%
