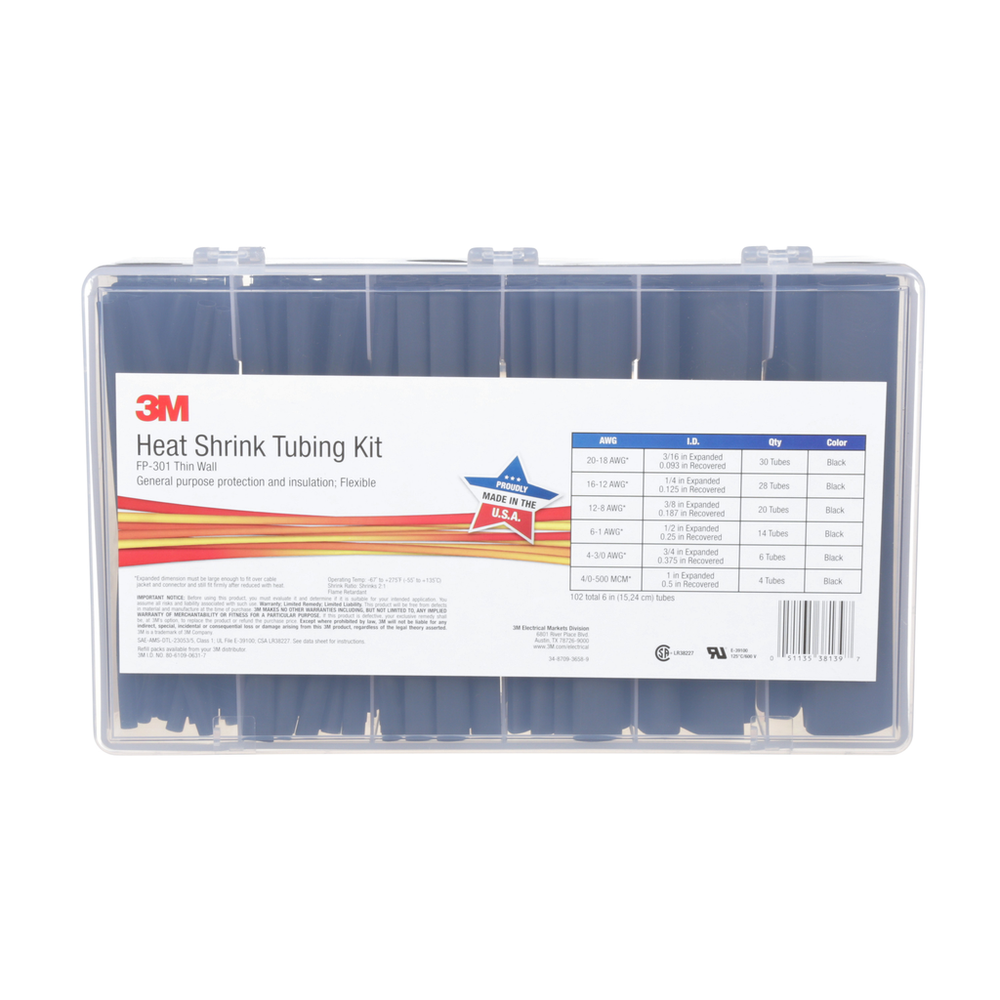

3M™ Heat Shrink Thin-Wall Tubing FP-301-Black Assorted Kit, 102 total 6 in tubes of flexible polyolefin heat shrink, 5 Kits / Case - 7000031598

Name: 3M™ Heat Shrink Thin-Wall Tubing FP-301-Black Assorted Kit, 102 total 6 in tubes of flexible polyolefin heat shrink, 5 Kits / Case - 7000031598
Brand: 3M Products & Supplies
SKU: 7000031598
Price: 717.23 USD
Availability: InStock

Sold As: 5-Pack

SKU: 7000031598

MPN: 7000031598

Stock Item: Stock items typically ship within 2-3 business days

UPC: 00051135381397

3M ID: 80610906317

5 Digit UPC: 38139

$717.23 ($143.45 / Count)

Hurry up! Current stock:

Quantity:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging

Spec Sheet

Downloads

Tech Data Sheet 1

Spec Sheet

Specifications

Country of Origin	United States
Shelf Life	3600
Material	Flexible Polyolefin
UL Approval	Yes
Application	Electrical Insulation; High-tenacity and chemically resistant tubing
Maximum Operating Temperature (Celsius)	135.0
Elongation UOM	%
Operating Temperature (Fahrenheit)	-67 °F to 275 °F
Overall Length (Metric) UOM	mm
Overall Length (Imperial) UOM	in
Maximum Operating Temperature (Celsius) Uom	Degree
Overall Length (Metric)	152.0
Dielectric Strength UOM	V/mil
Flame Retardant	Yes (except clear)
Dielectric Strength	900.0
Operating Temperature (Celsius)	-55 to 135 Degrees Celsius
Operating Temperature Range (Celsius)	-55 °C to +135 °C
Assortment Kits	Yes
RoHS EU Comments	RoHS 2011/65/EU compliant without exemption
Maximum Operating Temperature (Fahrenheit)	275.0
Mil Spec	AMS-DTL-23053/5, Class 1
Maximum Operating Temperature (Fahrenheit) UOM	Degree
Minimum Shrink Temperature (Celsius)	100.0
Adhesive Material	None
Units per Case	102.0
Overall Length (Imperial)	6.0
Non-Corrosive	Yes
Operating Temperature Range (Fahrenheit)	-67 °F to 275 °F
Shrink Ratio	2:1
Tubing Type	Single Wall (Thin)
Product Color	Black
Heat Shrink Type	Heat Shrink Tubing Kits
