3M Products & Supplies

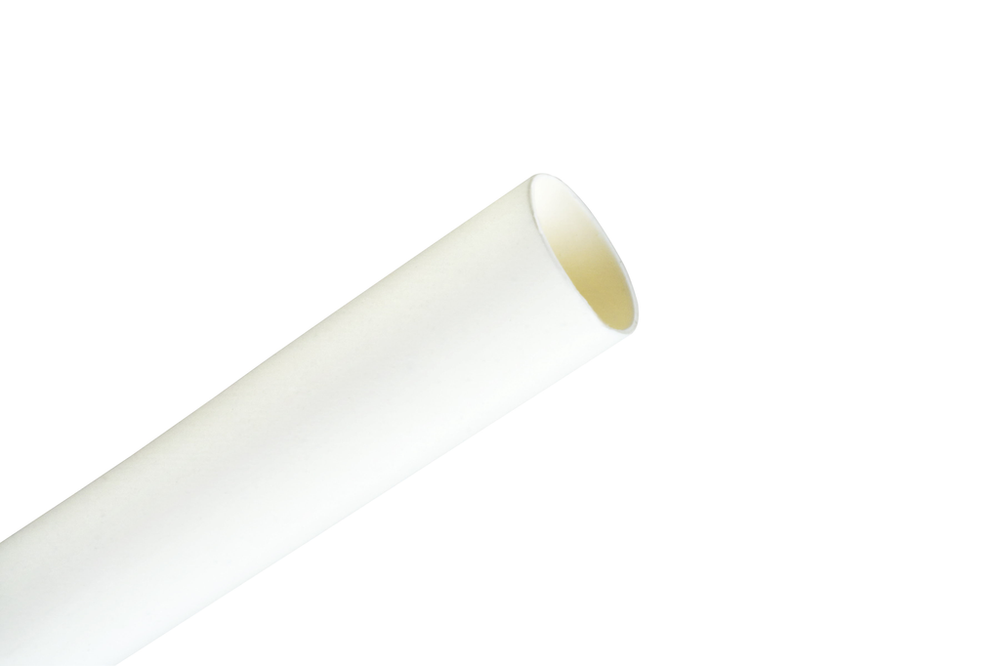

3M™ Thin-Wall Polyolefin Heat Shrink Tubing FP-301 1/4" White, 48-in piece, 200/Case - 7100089248

Sold As: 200-Pack
SKU: 7100089248
MPN: 7100089248
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128604724
3M ID: 80611607930
5 Digit UPC: 60472
$477.27 ($2.39 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Maximum Operating Temperature (Fahrenheit) UOMDegree
Tubing TypeSingle Wall (Thin)
Operating Temperature Range (Fahrenheit)-67 °F to 275 °F
MaterialFlexible Polyolefin
Overall Length (Imperial) UOMin
Inner Diameter Before Shrink (Metric)6.35
Operating Temperature Range (Celsius)-55 °C to +135 °C
Maximum Operating Temperature (Celsius) UomDegree
Flame RetardantYes
UL ApprovalYes
Inner Diameter After Shrink (Imperial) UOMin
Inner Diameter After Shrink (Metric) UOMmm
Inner Diameter Before Shrink (Imperial) UOMin
Elongation UOMdB
Minimum Shrink Temperature (Celsius)100.0
Inner Diameter After Shrink (Metric)3.18
Overall Length (Imperial)48.0
Maximum Operating Temperature (Celsius)110.0
Non-CorrosiveYes
Shrink Ratio2:1
Maximum Operating Temperature (Fahrenheit)230.0
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Adhesive MaterialNone
Inner Diameter After Shrink (Imperial)0.125
Inner Diameter Before Shrink (Metric) UOMmm
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Inner Diameter Before Shrink (Imperial)0.25
