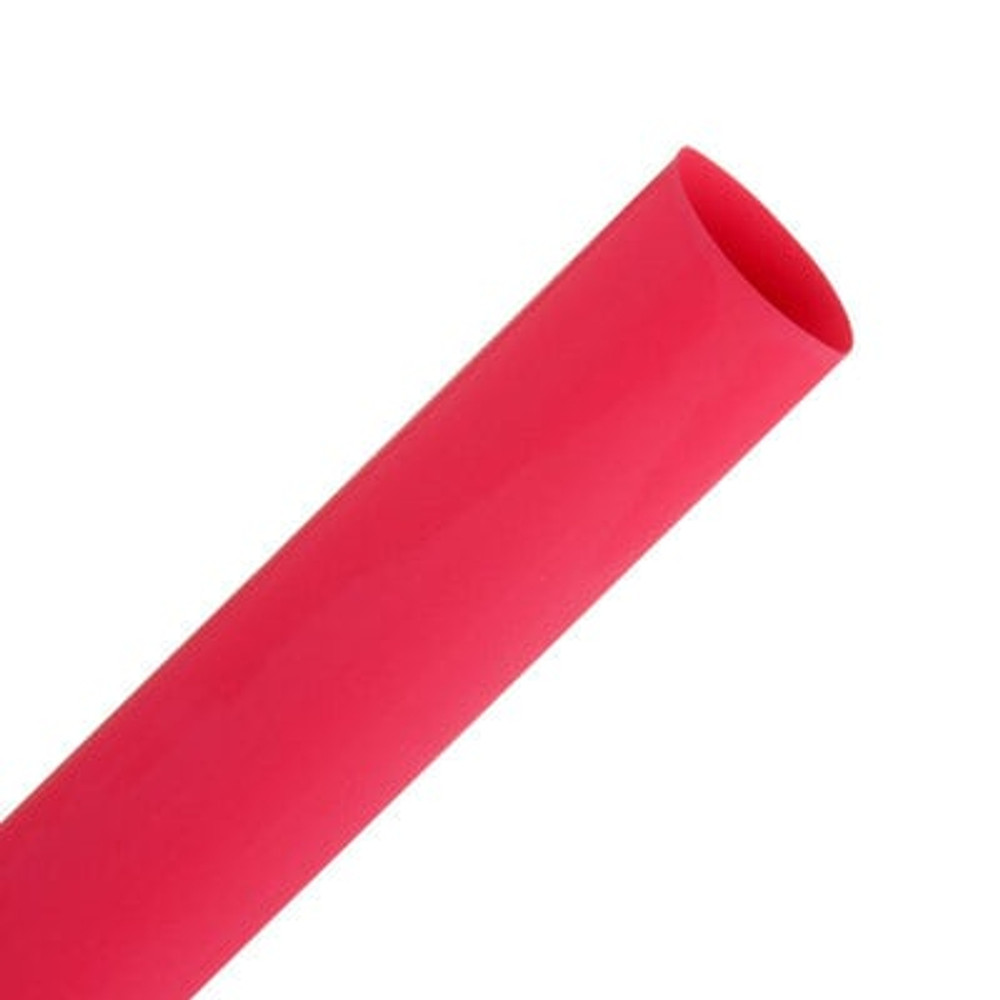

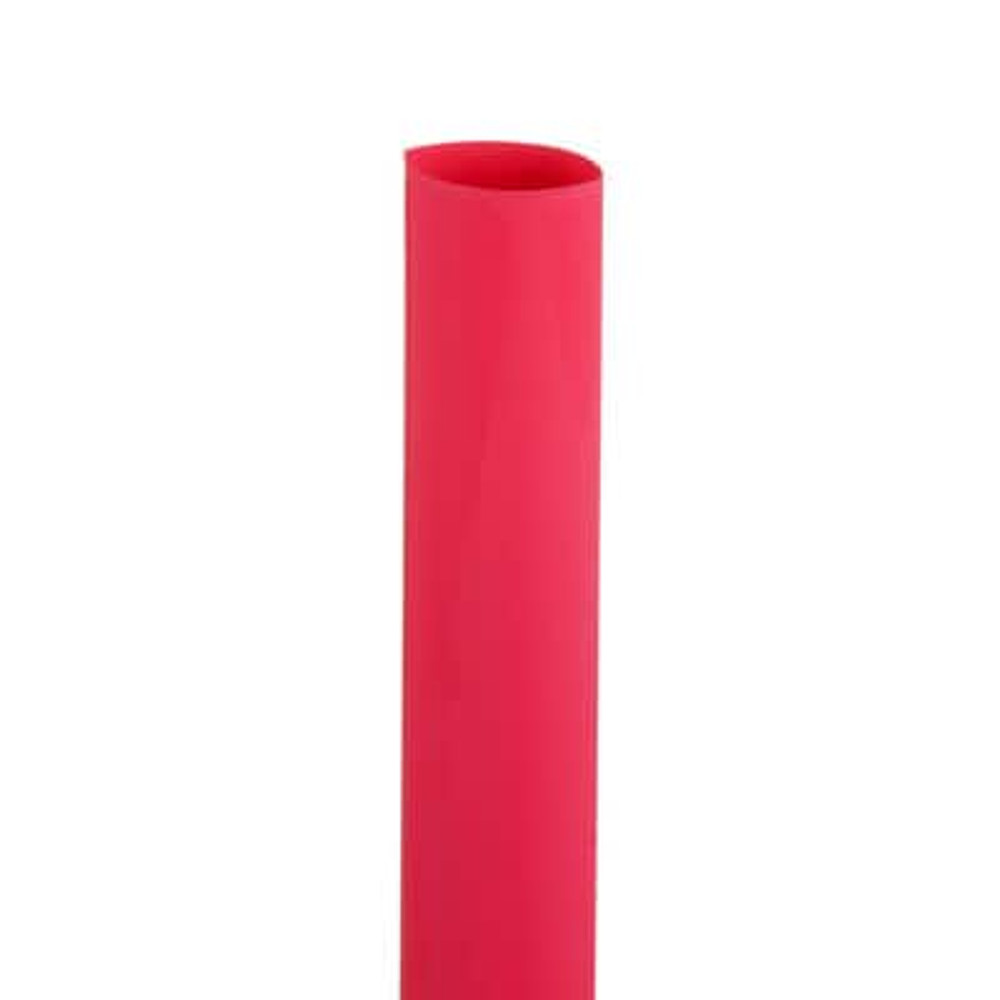

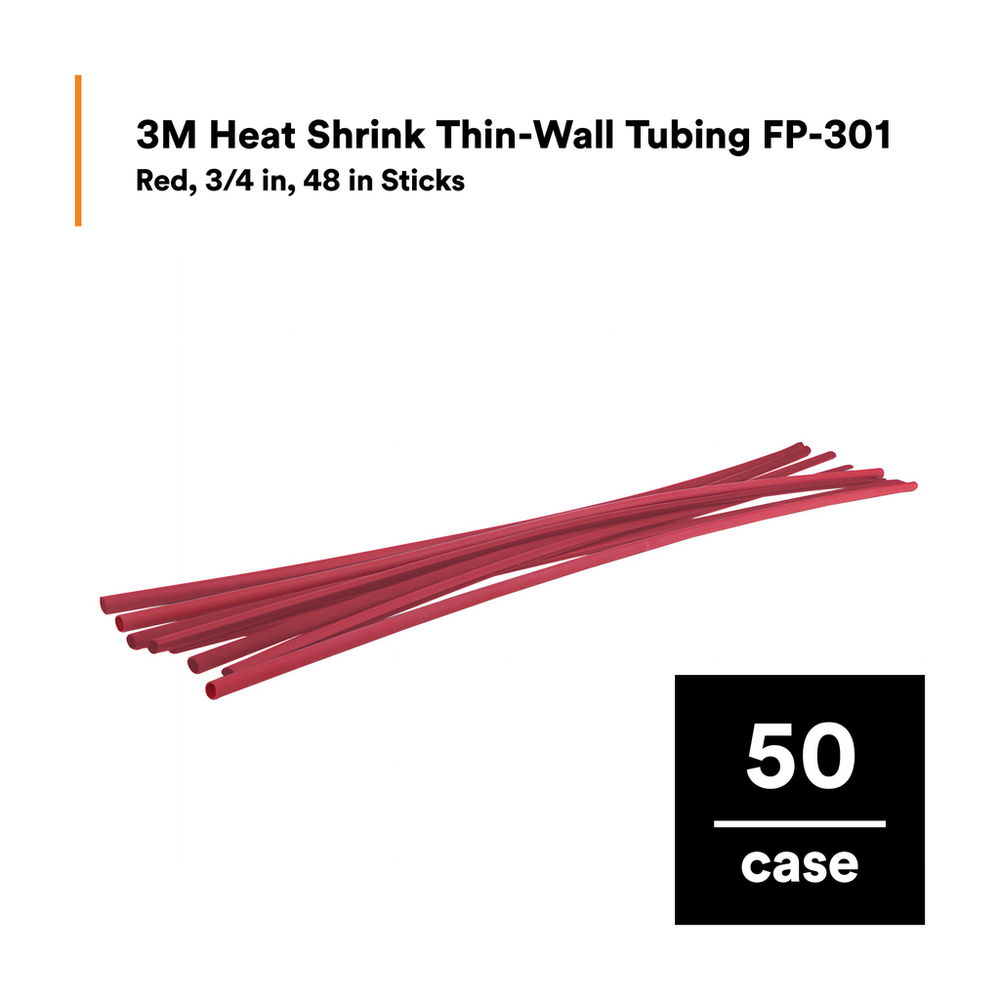

3M™ Heat Shrink Thin-Wall Tubing FP-301-3/4-Red-48", 50/Case - 7010321000

Name: 3M™ Heat Shrink Thin-Wall Tubing FP-301-3/4-Red-48", 50/Case - 7010321000
Brand: 3M Products & Supplies
SKU: 7010321000
Price: 228.83 USD
Availability: InStock

Sold As: 50-Pack

SKU: 7010321000

MPN: 7010321000

For an accurate lead time please contact us

UPC: 00051128598672

3M ID: 80611601289

5 Digit UPC: 59867

$228.83 ($4.58 / Count)

Hurry up! Current stock:

Quantity:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)

Spec Sheet

Downloads

Spec Sheet

Document Brochures

Safety Data Sheet

Product Selection Guides

Specifications

Shelf Life	3600
Country of Origin	United States
Shrink Ratio	2:1
Minimum Expanded Tubing I. D. UOM	in
UL Bug Temperature (Celsius)	125 Degrees Celsius
Non-Corrosive	Yes
Overall Length (Imperial)	48.0
Operating Temperature (Celsius)	-55 to 135 Degrees Celsius
Inner Diameter After Shrink (Imperial)	0.375
Maximum Operating Temperature (Celsius)	135.0
Maximum Operating Temperature (Fahrenheit)	275.0
Inner Diameter Before Shrink (Metric)	19.05
UL Bug Temperature (Fahrenheit)	257 Degrees Fahrenheit
Overall Width (Imperial) UOM	in
Mil Spec	AMS-DTL-23053/5, Class 1
Operating Temperature (Fahrenheit)	-67 °F to 275 °F
Overall Length (Metric) UOM	mm
Overall Width (Metric)	19.05
Overall Width (Metric) UOM	mm
Product Color	Red
Application	Electrical Insulation; High-tenacity and chemically resistant tubing
Overall Length (Metric)	1220.0
Overall Width (Imperial)	0.75
Inner Diameter After Shrink (Metric)	9.53
Overall Length (Imperial) UOM	in
UL Bug Voltage	600 Volt
Inner Diameter Before Shrink (Imperial) UOM	in
Material	Polyolefin
Maximum Operating Temperature (Celsius) Uom	Degree
Adhesive Material	None
Maximum Operating Temperature (Fahrenheit) UOM	Degree
Minimum Expanded Tubing I. D.	3.0
Flame Retardant	Yes
Inner Diameter Before Shrink (Imperial)	0.75
Inner Diameter Before Shrink (Metric) UOM	mm
Heat Shrink Type	Single-Wall Polyolefin Heat Shrink Tubing
Elongation UOM	%
Tubing Type	Single (Thin) Wall
Inner Diameter After Shrink (Imperial) UOM	in
Inner Diameter After Shrink (Metric) UOM	mm
RoHS EU Comments	RoHS 2011/65/EU compliant without exemption
