3M Products & Supplies

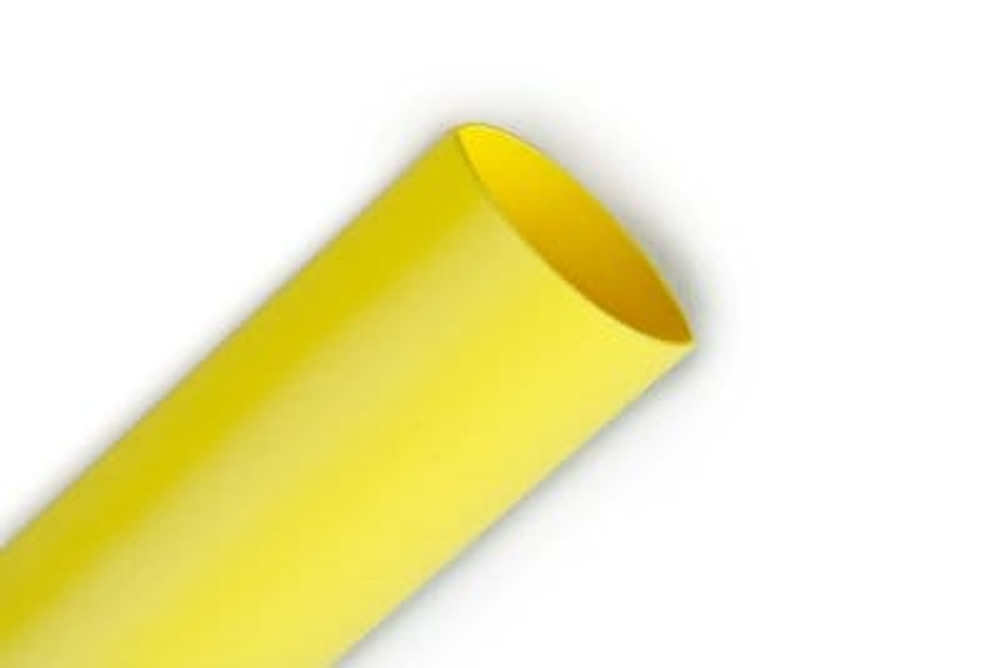

3M™ Heat Shrink Thin-Wall Tubing FP-301-1-Yellow-100', 100 ft Length per spool, 3 Rolls/Case - 7100025157

Sold As: 900-Pack
SKU: 7100025157
MPN: 7100025157
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 10054007085130
3M ID: 80610219810
5 Digit UPC: 8513
$1,221.03 ($1.36 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Mil SpecAMS-DTL-23053/5, Class 1
Non-CorrosiveYes
Inner Diameter Before Shrink (Metric) UOMmm
Minimum Expanded Tubing I. D. UOMin
Operating Temperature Range (Celsius)-55 °C to +135 °C
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Inner Diameter After Shrink (Imperial) UOMin
Flame RetardantYes
Inner Diameter After Shrink (Imperial)0.5
Adhesive MaterialNone
Elongation UOM%
Maximum Operating Temperature (Celsius) UomDegree
Minimum Shrink Temperature (Celsius)100.0
Overall Length (Imperial)100.0
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
MaterialFlexible Polyolefin
Tubing TypeSingle Wall (Thin)
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
UL File NumberE-39100
Inner Diameter Before Shrink (Imperial)1.0
Inner Diameter Before Shrink (Imperial) UOMin
Overall Length (Imperial) UOMft
Inner Diameter After Shrink (Metric)12.7
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
UL ApprovalYes
Operating Temperature Range (Fahrenheit)-67 °F to 275 °F
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Celsius)135.0
Minimum Expanded Tubing I. D.1.0
Product ColorYellow
Maximum Operating Temperature (Fahrenheit)275.0
Inner Diameter Before Shrink (Metric)25.4
Inner Diameter After Shrink (Metric) UOMmm
Shrink Ratio2:1
