3M Products & Supplies

3M™ Heat Shrink Thin-Wall Tubing FP-301-3/16-48"-Red-250 Pcs, 48 in Length sticks, 250 pieces/case - 7010400836

Sold As: 250-Pack
SKU: 7010400836
MPN: 7010400836
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128598863
3M ID: 80611601479
5 Digit UPC: 59886
$574.14 ($2.30 / Count)
Hurry up! Current stock:

Product Description

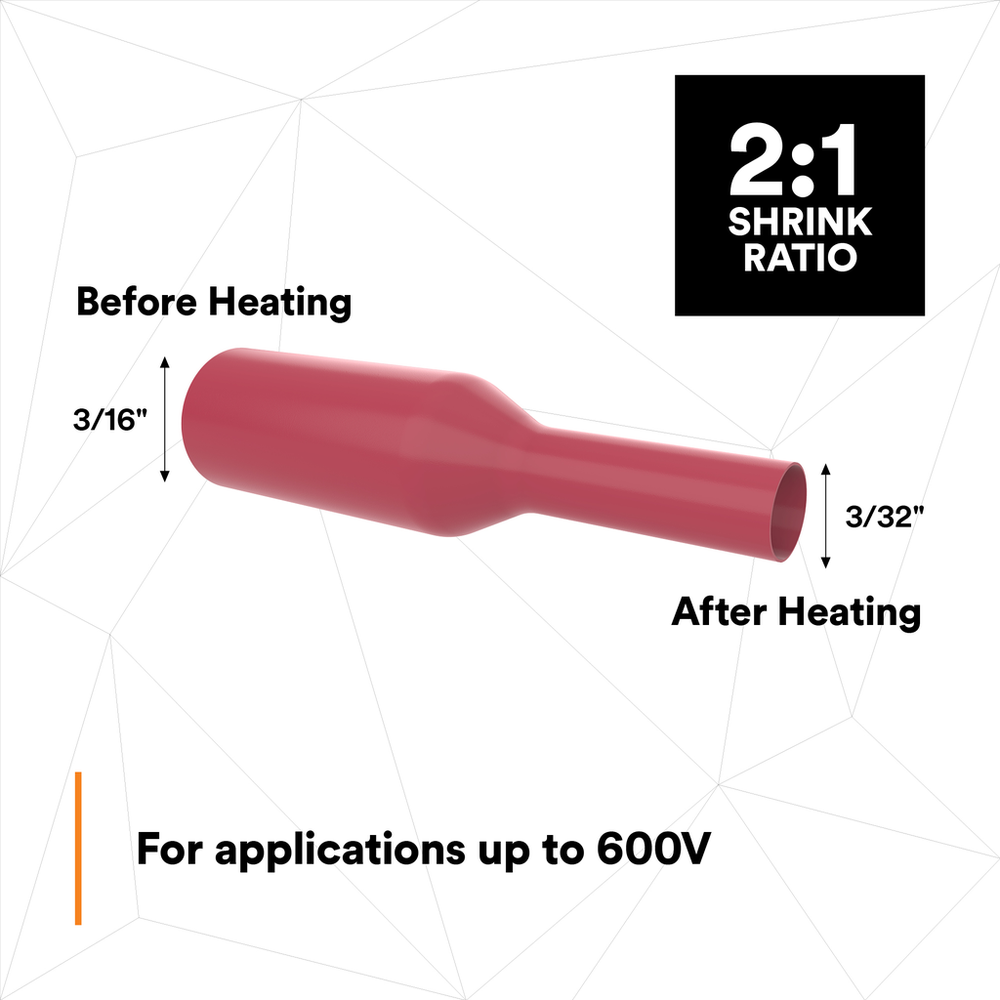

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications

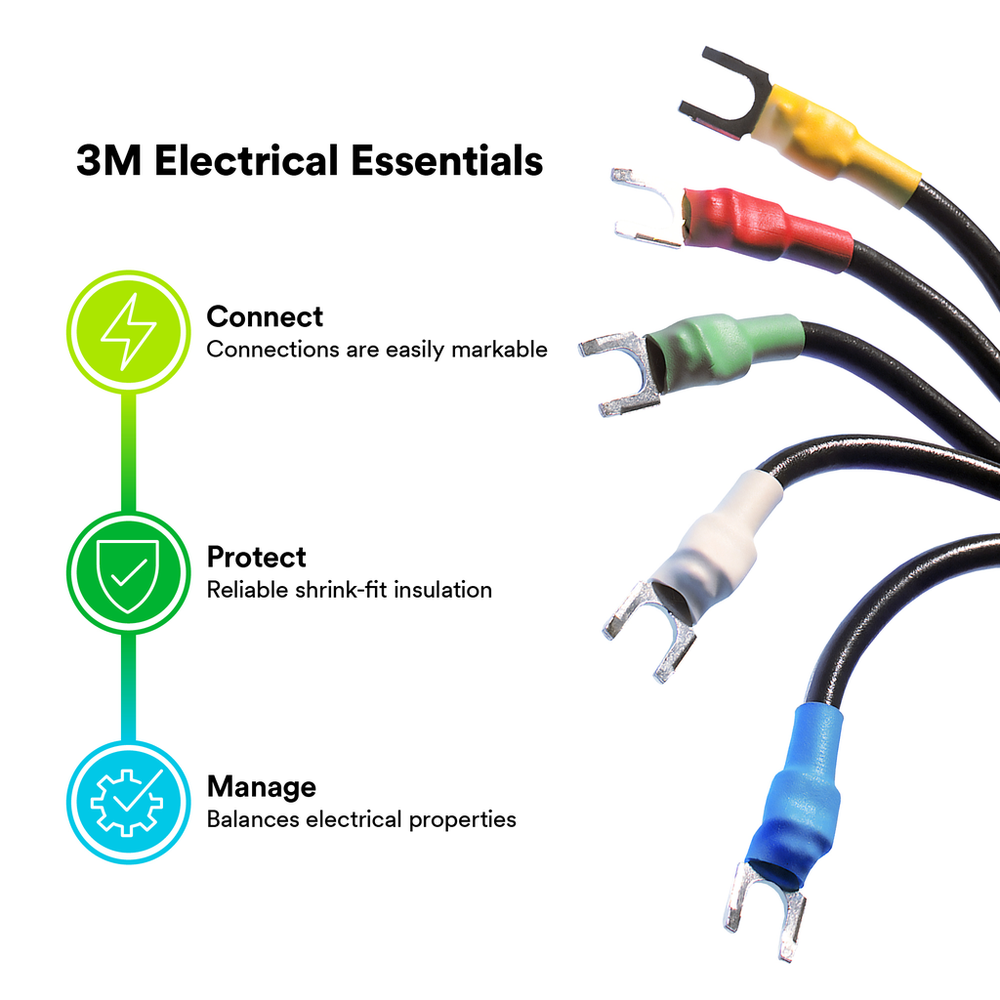

  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)

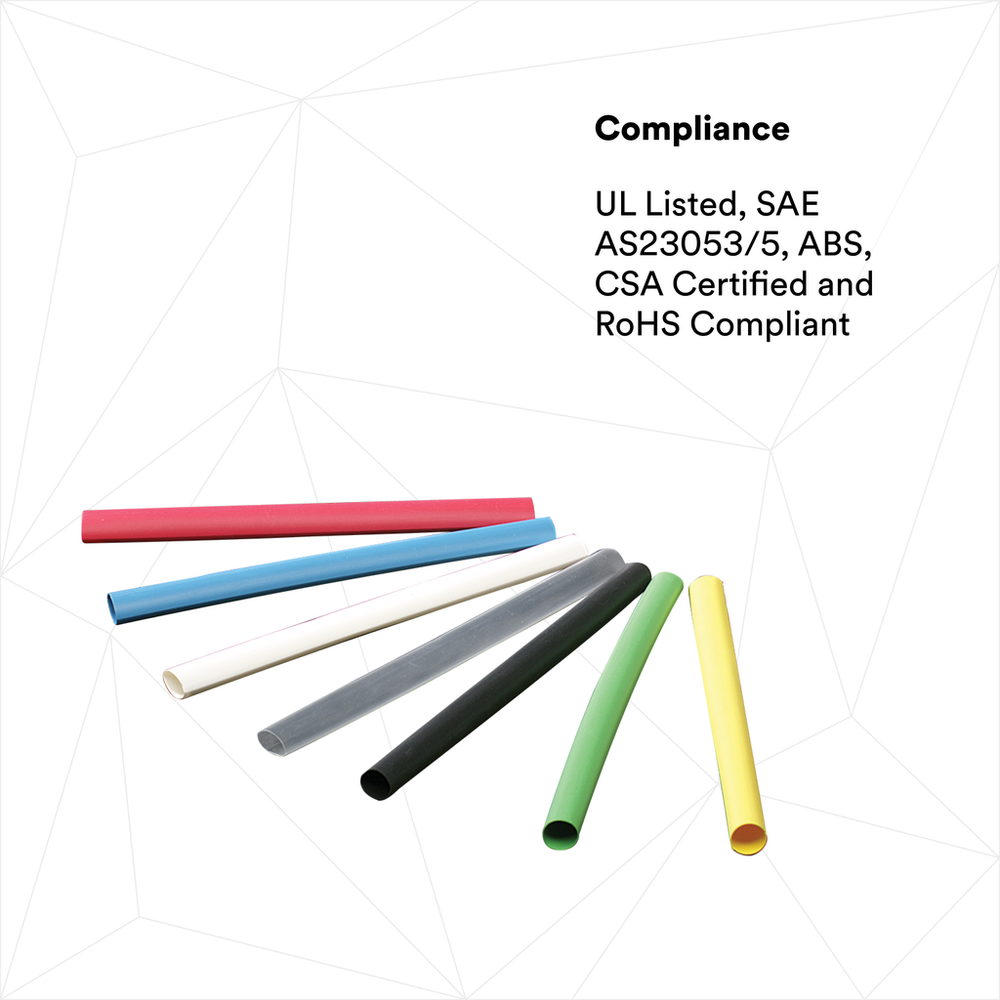

  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Overall Length (Metric)1220.0
MaterialPolyolefin
Operating Temperature (Fahrenheit)-67 °F to 275 °F
Overall Width (Metric) UOMmm
Inner Diameter Before Shrink (Imperial)0.187
Minimum Expanded Tubing I. D. UOMin
Inner Diameter After Shrink (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Celsius) UomDegree
Overall Length (Imperial) UOMin
Inner Diameter After Shrink (Imperial) UOMin
UL Bug Temperature (Fahrenheit)257 Degrees Fahrenheit
UL Bug Temperature (Celsius)125 Degrees Celsius
Maximum Operating Temperature (Celsius)135.0
Inner Diameter Before Shrink (Metric)4.75
Inner Diameter After Shrink (Imperial)0.093
Overall Length (Metric) UOMmm
UL Bug Voltage600 Volt
Elongation UOM%
Tubing TypeSingle (Thin) Wall
Inner Diameter After Shrink (Metric)2.36
Non-CorrosiveYes
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Overall Width (Metric)4.75
Shrink Ratio2:1
Inner Diameter Before Shrink (Imperial) UOMin
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Maximum Operating Temperature (Fahrenheit)275.0
Overall Width (Imperial)0.19
Flame RetardantYes
Overall Width (Imperial) UOMin
Minimum Expanded Tubing I. D.3.0
Inner Diameter Before Shrink (Metric) UOMmm
Adhesive MaterialNone
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Mil SpecAMS-DTL-23053/5, Class 1
Overall Length (Imperial)48.0
Product ColorRed
