3M Products & Supplies

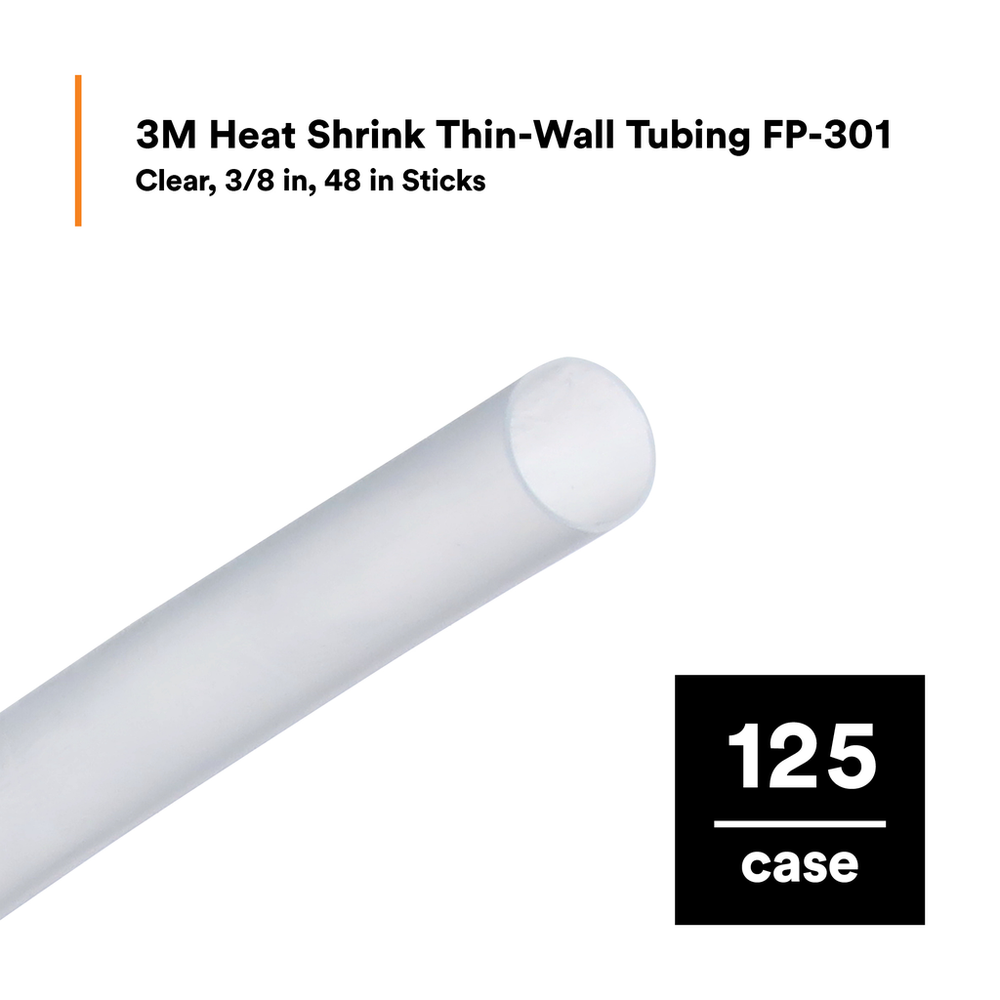

3M™ Heat Shrink Thin-Wall Tubing FP-301-3/8-48"-Clear-125 Pcs, 48 in Length sticks, 125 pieces/case - 7000133608

Sold As: 125-Pack
SKU: 7000133608
MPN: 7000133608
Stock Item: Stock items typically ship within 2-3 business days
UPC: 10051128598532
3M ID: 80611601149
5 Digit UPC: 59853
$326.90 ($2.62 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

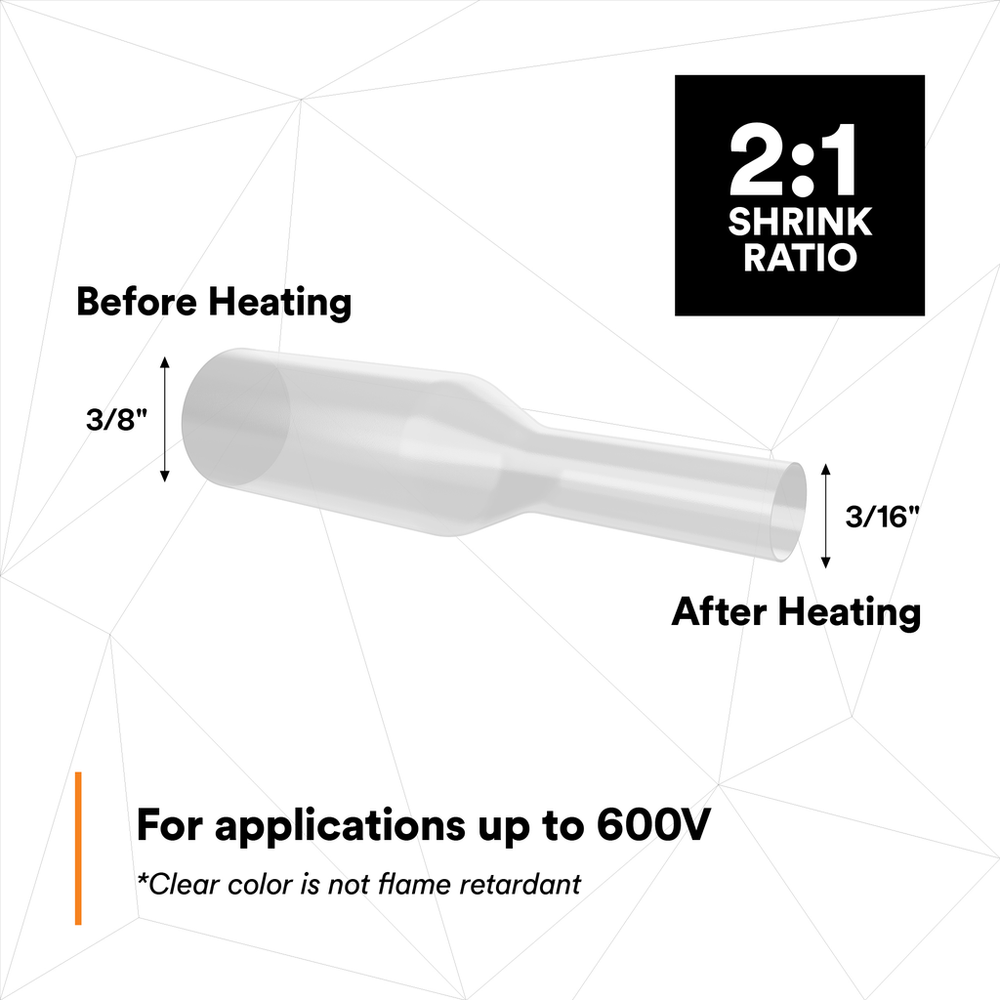

  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Inner Diameter Before Shrink (Imperial) UOMin
Inner Diameter Before Shrink (Metric) UOMmm
MaterialPolyolefin
Operating Temperature Range (Fahrenheit)-67 °F to 275 °F
Overall Length (Metric) UOMmm
Overall Width (Imperial)0.37
Minimum Expanded Tubing I. D.3.0
Inner Diameter After Shrink (Metric) UOMmm
Overall Width (Metric)9.52
UL Bug Voltage600 Volt
Maximum Operating Temperature (Celsius) UomDegree
Maximum Operating Temperature (Fahrenheit) UOMDegree
Elongation UOM%
Overall Length (Metric)1220.0
Overall Width (Imperial) UOMin
Inner Diameter After Shrink (Imperial)0.187
Shrink Ratio2:1
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Inner Diameter After Shrink (Metric)4.75
Flame RetardantNo
Operating Temperature (Fahrenheit)-67 °F to 275 °F
Adhesive MaterialNone
UL Bug Temperature (Fahrenheit)257 Degrees Fahrenheit
Overall Length (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit)275.0
Inner Diameter After Shrink (Imperial) UOMin
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Operating Temperature Range (Celsius)-55 °C to +135 °C
Product ColorTransparent
Overall Width (Metric) UOMmm
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Inner Diameter Before Shrink (Imperial)0.375
Maximum Operating Temperature (Celsius)135.0
Minimum Shrink Temperature (Celsius)100.0
Minimum Expanded Tubing I. D. UOMin
Tubing TypeSingle Wall (Thin)
UL Bug Temperature (Celsius)125 Degrees Celsius
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
UL ApprovalYes
Non-CorrosiveYes
Inner Diameter Before Shrink (Metric)9.53
Overall Length (Imperial)48.0
Mil SpecAMS-DTL-23053/5, Class 1
Units per Case125.0
