3M Products & Supplies

3M™ Heat Shrink Thin-Wall Tubing FP-301VW, Black, 3/16 in, 250 ft Spool, 3 Spools/Case - 7010349733

Sold As: 750-Pack
SKU: 7010349733
MPN: 7010349733
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007084792
3M ID: 80610219471
5 Digit UPC: 8479
$453.54 ($0.60 / Count)
Hurry up! Current stock:

Product Description

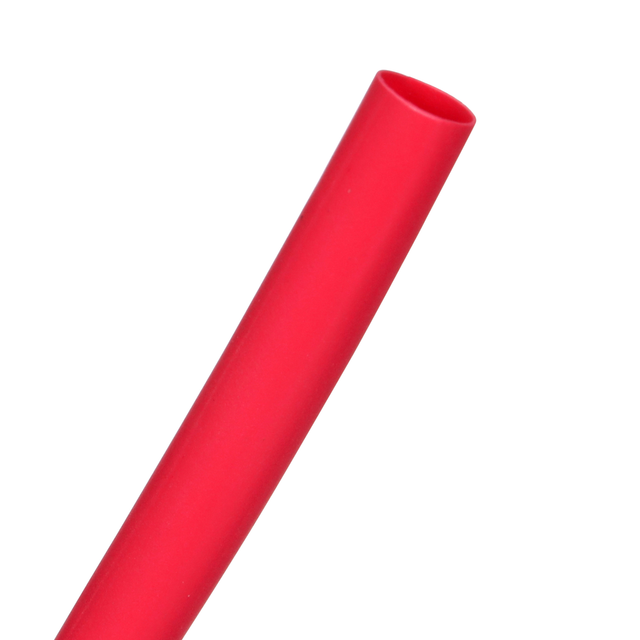

3M™ FP-301VW Heat Shrink Tubing is a thin wall tubing that provides a balance of electrical, physical and chemical properties. This tubing has a 2:1 shrink ratio and provides insulation for 600V rated applications. It has highly flame retardant, flexible polyolefin construction for moisture seal protection.

Features

  • Made of black flexible polyolefin
  • Rated for 600V applications
  • Withstands temperatures of -67 to 275 degrees F (-55 to 135 degrees C)
  • Suitable for flame-retardant applications requiring UL VW-1 and CSA OFT, fire-resistant wiring
  • Balances electrical, physical and chemical properties for various industrial and military applications
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Inner Diameter Before Shrink (Metric)4.75
Inner Diameter After Shrink (Metric)2.36
Maximum Operating Temperature (Fahrenheit)275.0
Shrink Ratio2:1
Inner Diameter Before Shrink (Imperial) UOMin
Product ColorBlack
Maximum Operating Temperature (Celsius)135.0
MaterialHighly Flame-retardant, Flexible Polyolefin
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Inner Diameter After Shrink (Imperial) UOMin
Inner Diameter After Shrink (Imperial)0.093
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Inner Diameter Before Shrink (Metric) UOMmm
Inner Diameter Before Shrink (Imperial)0.187
Overall Length (Imperial) UOMft
Elongation UOM%
Maximum Operating Temperature (Fahrenheit) UOMDegree
Mil SpecAMS-DTL-23053/5, Class 3
Non-CorrosiveYes
Overall Length (Imperial)250.0
Minimum Expanded Tubing I. D.3.0
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Inner Diameter After Shrink (Metric) UOMmm
Flame RetardantYes
Tubing TypeSingle (Thin) Wall
Minimum Expanded Tubing I. D. UOMin
UL File NumberE-39100
Maximum Operating Temperature (Celsius) UomDegree
