3M Products & Supplies

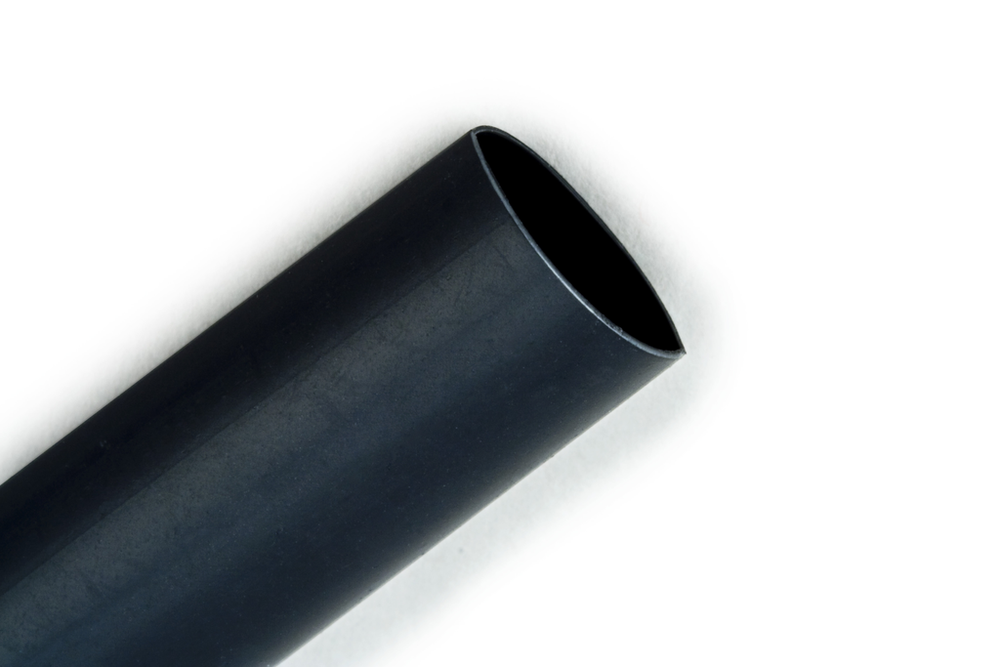

3M™ Heat Shrink Thin-Wall Tubing FP-301VW 1/2-Black-200', 200 ft Length spool, 3 spools/case - 7100024102

Sold As: 600-Pack
SKU: 7100024102
MPN: 7100024102
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007412298
3M ID: 80610335590
5 Digit UPC: 41229
$400.61 ($0.67 / Count)
Hurry up! Current stock:

Product Description

3M™ FP-301VW Heat Shrink Tubing is a thin wall tubing that provides a balance of electrical, physical and chemical properties. This tubing has a 2:1 shrink ratio and provides insulation for 600V rated applications. It has highly flame retardant, flexible polyolefin construction for moisture seal protection.

Features

  • Balances electrical, physical and chemical properties for various industrial and military applications
  • Suitable for flame-retardant applications requiring UL VW-1 and CSA OFT, fire-resistant wiring
  • Withstands temperatures of -67 to 275 degrees F (-55 to 135 degrees C)
  • Made of black flexible polyolefin
  • Rated for 600V applications
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Minimum Shrink Temperature (Celsius)100.0
Inner Diameter After Shrink (Imperial)0.25
UL ApprovalYes
Inner Diameter After Shrink (Metric)6.35
Operating Temperature Range (Celsius)-55 °C to +135 °C
Minimum Expanded Tubing I. D.1.0
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
UL File NumberE-39100
Flame RetardantYes
Inner Diameter Before Shrink (Imperial)0.5
Inner Diameter Before Shrink (Imperial) UOMin
Inner Diameter Before Shrink (Metric)12.7
Minimum Expanded Tubing I. D. UOMin
Inner Diameter After Shrink (Imperial) UOMin
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Overall Length (Imperial)200.0
Product ColorBlack
MaterialPolyolefin
Shrink Ratio2:1
Maximum Operating Temperature (Celsius) UomDegree
Maximum Operating Temperature (Fahrenheit)275.0
Elongation UOM%
Inner Diameter Before Shrink (Metric) UOMmm
Mil SpecAMS-DTL-23053/5, Class 3
Overall Length (Imperial) UOMft
Maximum Operating Temperature (Fahrenheit) UOMDegree
Non-CorrosiveYes
Tubing TypeSingle Wall (Thin)
Operating Temperature Range (Fahrenheit)-67 °F to 275 °F
Inner Diameter After Shrink (Metric) UOMmm
Maximum Operating Temperature (Celsius)135.0
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
