3M Products & Supplies

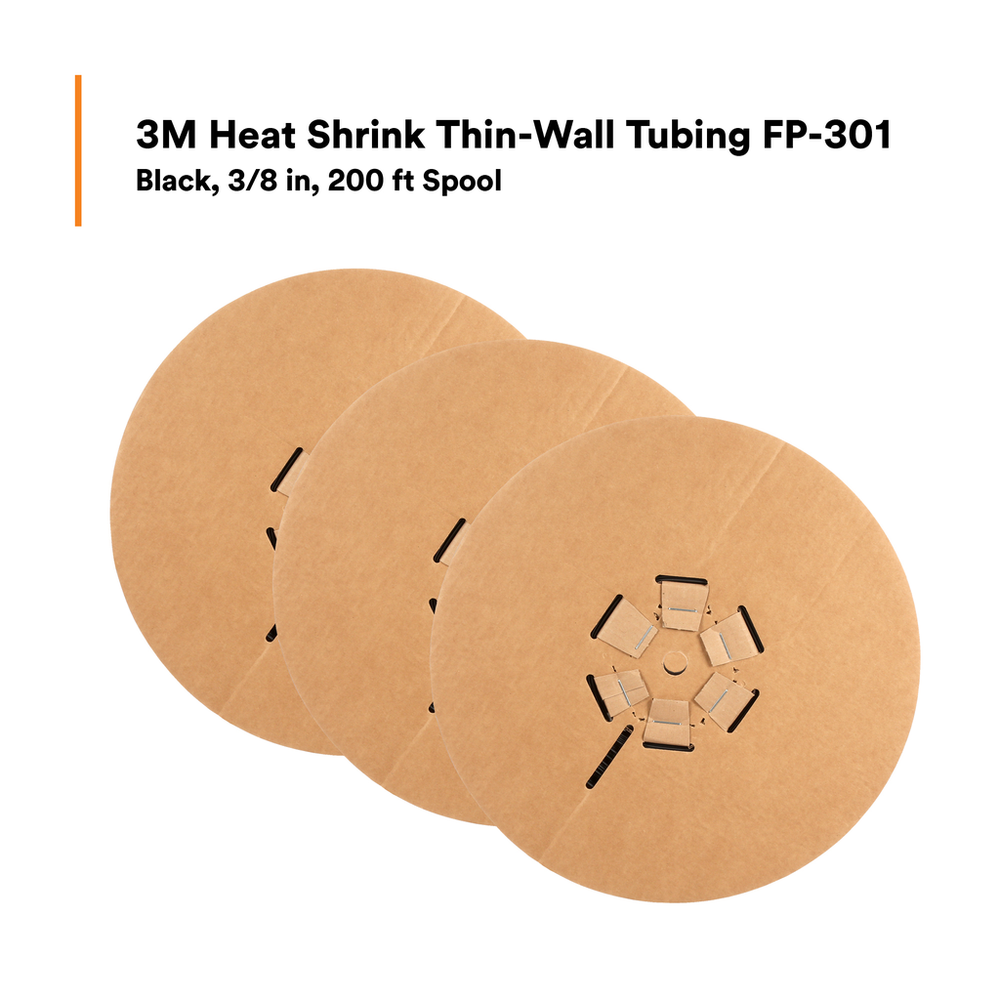

3M™ Heat Shrink Thin-Wall Tubing FP-301-3/8-Black-200', 200 ft Length per spool, 3 spools/case - 7100020270

Sold As: 600-Pack
SKU: 7100020270
MPN: 7100020270
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007084914
3M ID: 80610219596
5 Digit UPC: 8491
$372.70 ($0.62 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Minimum Shrink Temperature (Celsius)100.0
Inner Diameter After Shrink (Metric)4.75
Operating Temperature Range (Fahrenheit)-67 °F to 275 °F
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Product FormStick
Inner Diameter Before Shrink (Imperial) UOMin
Overall Length (Imperial)200.0
Inner Diameter After Shrink (Metric) UOMmm
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Maximum Operating Temperature (Fahrenheit)275.0
Inner Diameter After Shrink (Imperial) UOMin
Operating Temperature Range (Celsius)-55 °C to +135 °C
Maximum Operating Temperature (Celsius)135.0
Minimum Expanded Tubing I. D.3.0
UL ApprovalYes
Inner Diameter Before Shrink (Metric) UOMmm
Shrink Ratio2:1
Minimum Expanded Tubing I. D. UOMin
Non-CorrosiveYes
Maximum Operating Temperature (Celsius) UomDegree
Maximum Operating Temperature (Fahrenheit) UOMDegree
Inner Diameter After Shrink (Imperial)0.187
Tubing TypeSingle Wall (Thin)
UL File NumberE-39100
Adhesive MaterialNone
Overall Length (Imperial) UOMft
Mil SpecAMS-DTL-23053/5, Class 1
Inner Diameter Before Shrink (Metric)9.53
MaterialFlexible Polyolefin
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Units per Case3.0
Elongation UOMDecibel
Inner Diameter Before Shrink (Imperial)0.375
Flame RetardantYes
